The decanter centrifuge is suitable for solid-phase dewatering, liquid-phase clarification and separation,
liquid-liquid-solid three phase separation and size-grading of various suspensions with solid-phase
particle sizes of 0.005-15mm, consistency of 1-40% and temperature of ≤ 100°C, esp. for separatong the
suspensions whose consistency and particle size vary greatly and for which recovery of filter cloth is difficult,
such as treatment of PVC resins, ammonium sulfite, barrium carbonate, strontium sulphate, lithopone,starch,
diatomite, plaster, bauxite, soybean protein, peanut protein, fruit juice, drinks, vegetable oil, citric acid, powder
of blood, powder of titanium white, kaolin clay and drilling mud, etc., and dewatering of washed coal and fine
coal, purification of waste oil, treatment of grain stillage liquid waste and municipal sewage and mineral classification. Besides, it is suitable for waste water treatment of electric power plant sludge, printing and dyeing sludge, paper manufacture sludge.

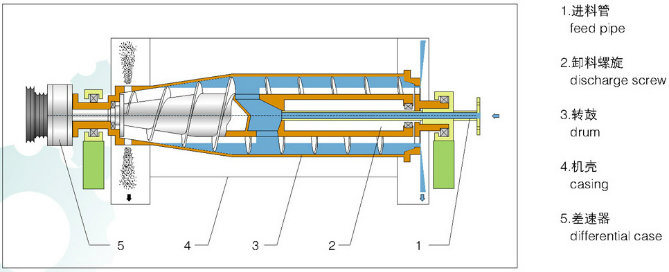

>>>Structure and Principle
The solid drum is internally installed with a concentric discharge screw As they rotate in the same dJreotion
at a high speed, They have a certain rotational speed difference, which is caused by the driving system and
the differential case Suspension enters the internal of the charge screw through the speed pipe and then goes
into the drum after being accele rated Under the centrifugal force, solid particles of big density settle on the
inwall of the drun, and form a circular layer of cake, which is continuously pushed by the discharge screw to the
small end of the drum 8nd then out of it, while the set:led liquid is continuously discharge out of the drum from
the vortex finder of the big end of the drum, hence solid-liquid sparation of suspension.
For the decanter centrifuge, the continuous feeding separating and discharging can be realized as it rotates at
its full speed. It is characterized by compact structure easy obturation smith running, low noises, large handing
capacity, low energy consumption, high automation small working strength, simple operation and easy
maintenance and wide application.

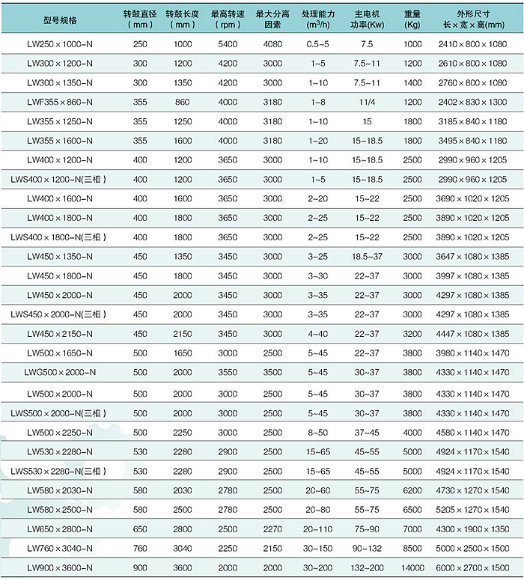

>>>Technical Parameters
Packaging: Inner packing:Spare parts are placed neatly in a box
Outer packing:Standard Exported Wooden Case
Shipping: FOB & CIF & CNF (FOB:Usually,we deliver the product to DaLian port,LiaoNing,China)
>>>Our Services
1)Features & Advantages:
Manufacturer & Produce as required & Widely saled around the world
Good quality with GMP,SGS,ISO9001 Standard & Competitive price
2)Highly attention & Timely Answer:
Your Inquiry or email will get reply within 12 hours
Your technical problem will get reply within 24 hours
3)Professional Technical Support :
Any problem,our engineer will help you to solve it via email,telephone,video,etc
Even,Our technicians could be dispatched for overseas service
4)Stock:Abundant spare parts in stock are available to provide,
which means the replacements can be shipped to you right away
>>>Company Information
Welcome to visit our company show:
http://zonelink.en.made-in-china.com/ http://www.lyzhonglian.com/
Liaoyang Zhonglian Pharmaceutical Machinery Co.,Ltd.was established in October 2001,
up to now has fifteen years of professional production experience and perfect testing means.
The company is located in China's earliest engaged in the centrifuge production liaoyang city,
liaoning province, and covers an area of ten thousand square meters, product workshop area
of seven thousand square meters,is specialized engaged in the centrifuge equipment and
pharmaceutical machinery manufacturing enterprises.
Products have been widely used in pharmaceutical, chemical, food, smelting, and many other
industries,through the unremitting efforts of all staff has been formed its own sales network
at home and abroad, products exported to north American countries such as the United States,
and Mexico,southeast Asian countries such as Thailand, Singapore, Malaysia, Indonesia,
east Asian countries such as Korea,South American countries such as Venezuela, Peru .
With reliable quality and excellent after-sales service, the company won the support and
praise of the broad masses of overseas customers .
Two new hard horizontal support balance machines were purchased, balance of centrifuge
main pieces of drum quality correction, effectively guarantee the balance of a drum. Our staff
are committed to the production and sales of centrifugal separation machinery, creating
suitable model for all kinds of material separation equipment!
