Main Feature:
Disc centrifuge can realize liquid-liquid-solid separation. it can be operated manually or automatically or remotely. This machine is widely used for many industries, such as dairy, beverage, pharmacy, chemials, petrol, metallurgy and biology, etc.
Application:
1. Beverage: Wine, tea, coffee and beer.
2. Juices: Vegetable juices, various kinds of fruit juices

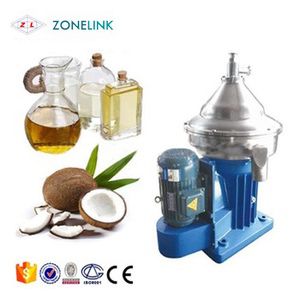

3. Vegetable oil: Coconut oil, colza oil, cotton seed oil, core oil, palm oil, soybean oil, peanut oil, rice oil, sesame oil, safflower oil
4. Animal oil: Fish oil and other animal oil.
5. Mineral oil: Fuel oil, diesel oil, lubrication oil, transformer oil and waste oils.
6. Dairy Milk: Milk degrease
7. Fermented liquids: Bacterial or fungi mass after fermentation

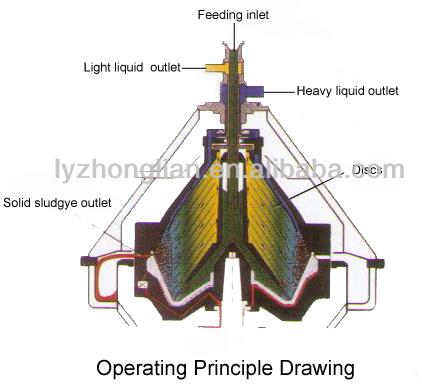

Working principle:
Disc centrifuge the bowl will be driven by the main motor by the friction clutch and screw gear pair to rotate highly around the main shaft. Stock liquid flows from the center charging inlet on the top to the bottom through the charging pipe. And then passes through disc seats to the bowl's space. The bigger gravity solid phase particles in the stock liquid is settled down to the bowl's wall by the centrifugal force and then under the control of the side bowl drained out of the residue outlet but liquid phase is fully settled down to the bowl wall by the centrifugal force field and then under the control of the side bowl it is drained out of the residue outlet but liquid phase is fully settled down to the center along the discs to drain out by the centripetal pump.
Technical Parameter
Model | Bowl Speed (rpm) | Capacity (Hour/L) | Running Load (Watts) | Dimensions, Overall (mm) | ||
Width | Front-to-Back | Height | ||||
DHY/DHYC250 | 11100 | 500-800 | 4.0 | 850 | 850 | 1200 |
DHY/DHYC270 | 7300 | 1000 | 4.0 | 950 | 950 | 1200 |
DHY/DHYC300 | 7150 | 1500 | 5.5 | 1025 | 1300 | 1300 |
DHY/DHYC360 | 7056 | 2000-3000 | 7.5 | 1500 | 1100 | 1500 |
DHY/DHYC400 | 7038 | 3000 | 7.5 | 1500 | 1100 | 1550 |
DHY/DHYC500 | 6600 | 5000-8000 | 15.5 | 1772 | 1500 | 1855 |
DHY/DHYC550 | 6200 | 8000-15000 | 18.5 | 1970 | 1560 | 1970 |
DHY/DHYC730 | 4900 | 50000-80000 | 55.0 | 2580 | 1980 | 2340 |

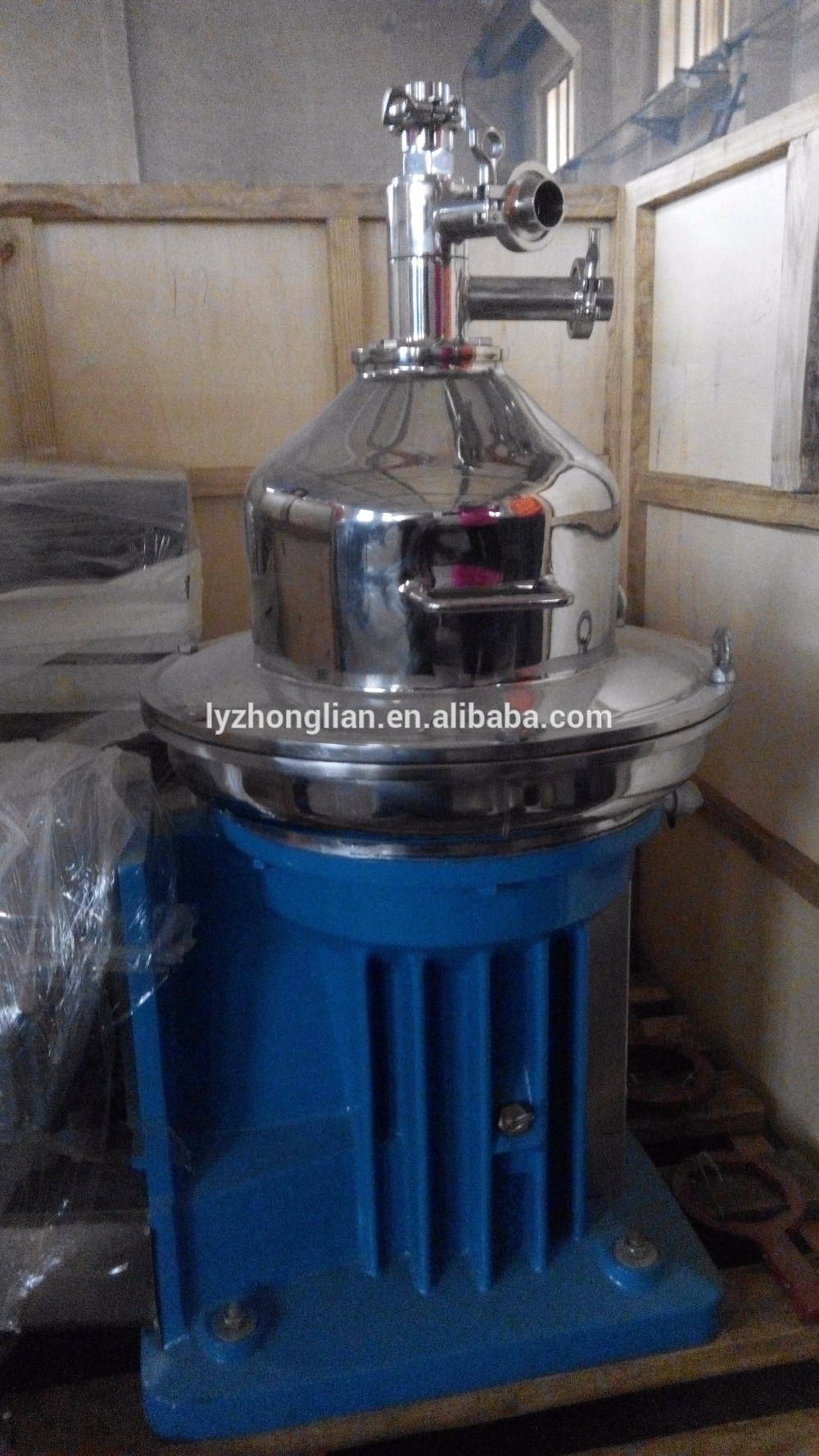

Disc centrifuge bowl:
Disc centrifuge packing
Liaoyang Zhonglian Pharmaceutical Machinery Co.,Ltd. ,belongs to ZHONGLINAN international Group. We are the professional manufacturer of pharmaceutical equipment and food equipment, which including separating equipment, filling equipment, packing equipment, dryer and relevant complete set of production line equipment.

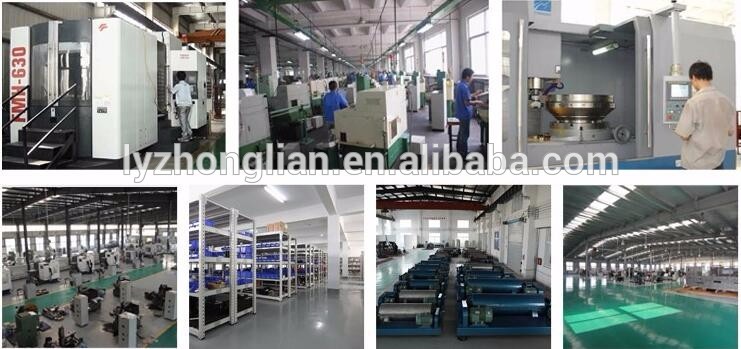

Group was founded in 2001, the headquarters is located in Liaoyang city, Liaoning province. The factory covers an area of ten thousand square meters, production workshop seven thousand square meters. The factory own a professional r&d team and after-sales service team. In the same industry take the lead through the ISO9001:2008 international quality system certification, and get the certification of SGS, CE, GMP and so on.
At present, our products have been exported to the United States, Mexico, New Zealand, South Korea,Australia,Turkey,Japan,Thailand,Malaysia,Singapore,Indonesia,Canada,Kenya,Seychelles,Italy,Iran,Venezuela,Peru,India,Russia,Denmark,Spain,Finland,Greece,Colombia,and so on more than 30 countries. Our aim is saving your valuable time and cost, providing you with the workable solution!
Exhibition
1. How can our machine match client demand well?
We will send your the video or some question to confirm your demand. if the machine is suitable for you, we will make a detail project for you. You can send us sample to us and we will take a video for you. Or we also welcome you take the sample by yourself to our factory to see the machine effect.
2. We are a factory or a trading company?
We are the manufacturer, and have been in industry for more than 20 years. Welcome to visit us.
3.How about the payment way?
You can pay by T/T or LC, or by Alibaba`s trade assurance service, or by the West Union, or in cash.
4. How to ensure the machine’s quality after buyer put the order?
Before the delivery, we will test the machine. When we make sure it run faultlessly, we will send you machine’s pictures and videos. Or You can come to us to check by yourself, or by the third party inspection organization contacted by your side.
5. Worry us won't deliver the machine after you pay the cost.
We are the VIP member in ALIBABA. Please note our above business license and certificates. And if you don't trust us, you can use Alibaba’s trade assurance service or by LC.
6. Why choose us?
1) We have been engaged in the manufacturing for over 30 years, and we can not only supply you the single machine, but also can supply you the full line.
7. Basic after service.
1) Warranty period:12 months counting from the delivery date. Lifetime maintenance.
2) Solve the client question: The machine is delivered with the installation video and the instruction book. When client meet any questions in operation the machine, we will help client solve the problem within 24 hours by sending the video or picture.
3) Training and Installation: the buyer can come to the seller factory to learn how to use the machine. If the buyer need, we can also send our engineer to the buyer factory for installation,debugging and train the buyer` work.
4)The language in the machine: All the character showing in the machine in English or client language.
