Oil Water Separation Dissolved Air Flotation Machine Flat-Flow Type

Solution Advice:   Installation &. Operation Guide.You can provide us the water sources, water quality, flow rate and ground area, material requirements about your project, then more technical solutions will be suggested to you. Why choose us 1.

Technical Feature

  • Qingdao, China
  • 300 Sets/Year
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • New
  • GMA, QS, UL, FDA, ISO, CE
  • Semi-Automatic
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~3

PRIMARY PARAMETERS

Model NO.
YW
Flotation Machine Type
Dissolved Air Flotation Machine
Centrifuge Technology Use
Filter
Material
Carbon Steel or Stainless Steel
Centrifuge Installation
Horizontal
Method
Combined Treatment
Treating Capacty
4-300m3/Hour
Trademark
BETTER
Transport Package
Seaworthy Package
Specification
YW5-YW300
Origin
Shangdong, Zhucheng
HS Code
8421299090

DETAIL DESCRIPTION

Solution Advice:   Installation &. Operation Guide.
You can provide us the water sources, water quality, flow rate and ground area, material requirements about your project, then more technical solutions will be suggested to you.

Why choose us
1. We consistent good quality with reasonable price.
2. Big company, good reputation, more reliable.
3. Delivery in time.
4. Over 15 years' experience since 1991.
5.Considerable after-sales service.

Our Services
1.24-hour a day, 365-day a year access to a toll-free health care professional hotline for questions and trouble-shooting assistance FREELY.
2.all year round on site installation and debugging service abroad with professional engineer guide and training.

Packaging & Delivery
Packaging Details  Seaworthy package
Delivery Time      Within 20 days after receipt of deposit
Oil Water Separation Dissolved Air Flotation Machine Flat-Flow Type

1. Description

YW series Dissolved Air Floatation is mainly for solid-liquid or liquid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.

2. Application

(1) Remove oil and TSS.

(2) Separate small particles and algae in groundwater.

(3) Recover valuable products in industrial sewage such as paper pulp.

(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.

Treating effect test result:

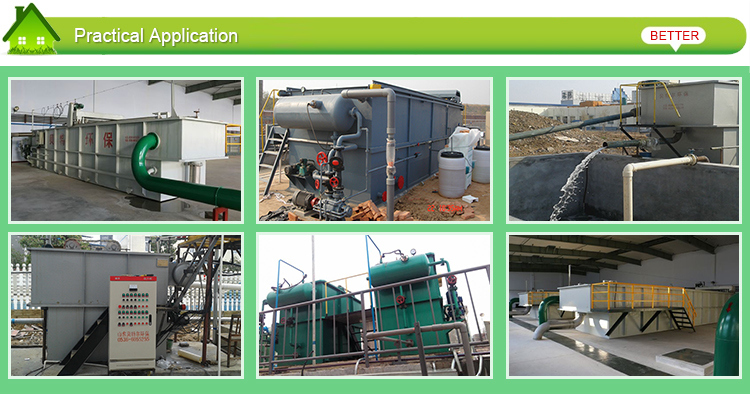

Tss and Oil Remover Oily Waste Water Disposal System Oil Separator Sewage Treatment Plant Daf Dissolved Air Flotation Unit

Tss and Oil Remover Oily Waste Water Disposal System Oil Separator Sewage Treatment Plant Daf Dissolved Air Flotation Unit

3. Features

(1) Large capacity, high efficiency and small occupying space.

(2) Compact structure, easy operation and maintenance.

(3) Silt expansion elimination.

(5) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water. Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.

(6) It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and more algae.

Suitable area:
slaughtering, starch, pharmaceuticals, papermaking, printing and dyeing,

leather and tannery, petrochemical industry, domestic wastewater, etc.

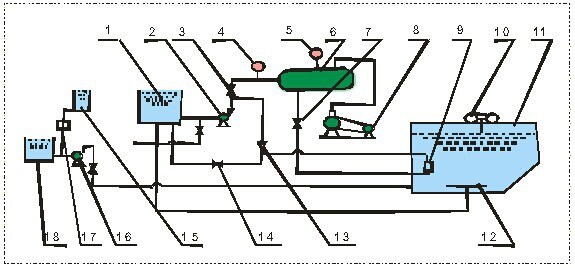

4. Flow Process Diagram
Oil Water Separation Dissolved Air Flotation Machine Flat-Flow Type

1. Clear water reservoir  2. Clear water pump  3. Control valve   4.5. Pressure gage  6. Dissolved gas tank
7. Control valve   8. Air compressor   9. Releaser   10. Foam scraper  11. Air floating pond 12. Water collecto
13. Jet device 14. Control valve  15. Dosing tank  16. Sewage pump   17. Flow meter   18. Sewage pond

5.Technical parameter:

SpecificationCapacity (m3/h)Dissolved gas water
(m3/h)
Main dynamo power (kw)Foam scraper power
(kw)
Air compressor power
(kw)
Dissolved air tank size
(mm)
Overall dimension  (mm)
YW-054-51.5-230.551.5Φ400x10003300x1800x2200
YW-108-102-340.551.5Φ500x15124000x2100x2200
YW-2015-205-77.50.551.5Φ500x15124600x2400x2200
YW-3020-306-107.50.551.5Φ500x15125200x2600x2400
YW-4030-408-137.50.752.2Φ600x18806000x2600x2400
YW-5040-5015-207.50.752.2Φ600x18807000x2600x2400
YW-6050-6018-27110.752.2Φ600x18807600x2800x2400
YW-8070-8024-327.50.753Φ650x20349200x2800x2400
YW-10090-10030-35150.753Φ700x198010000x2800x2600
YW-150125-15060-80221.14Φ800x198013500x2800x2600
YW-200175-20080-100221.15.5Φ800x210015800x2800x2600
YW-250225-250110-120221.15.5Φ800x240015200x3400x2600
YW-300280-300120-180371.15.5Φ1000x290019200x3400x2800


FAQ
Q:How to buy your idea products?
A:You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).

Q:How to pay?
A:TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

Q:What is the delivery time?
A:It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

Q:How to pack the products?
A:We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

Q:How to keep your equipments from corrosion?
A:We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.

Q:How to install after the equipments arriving destination?
A:We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.

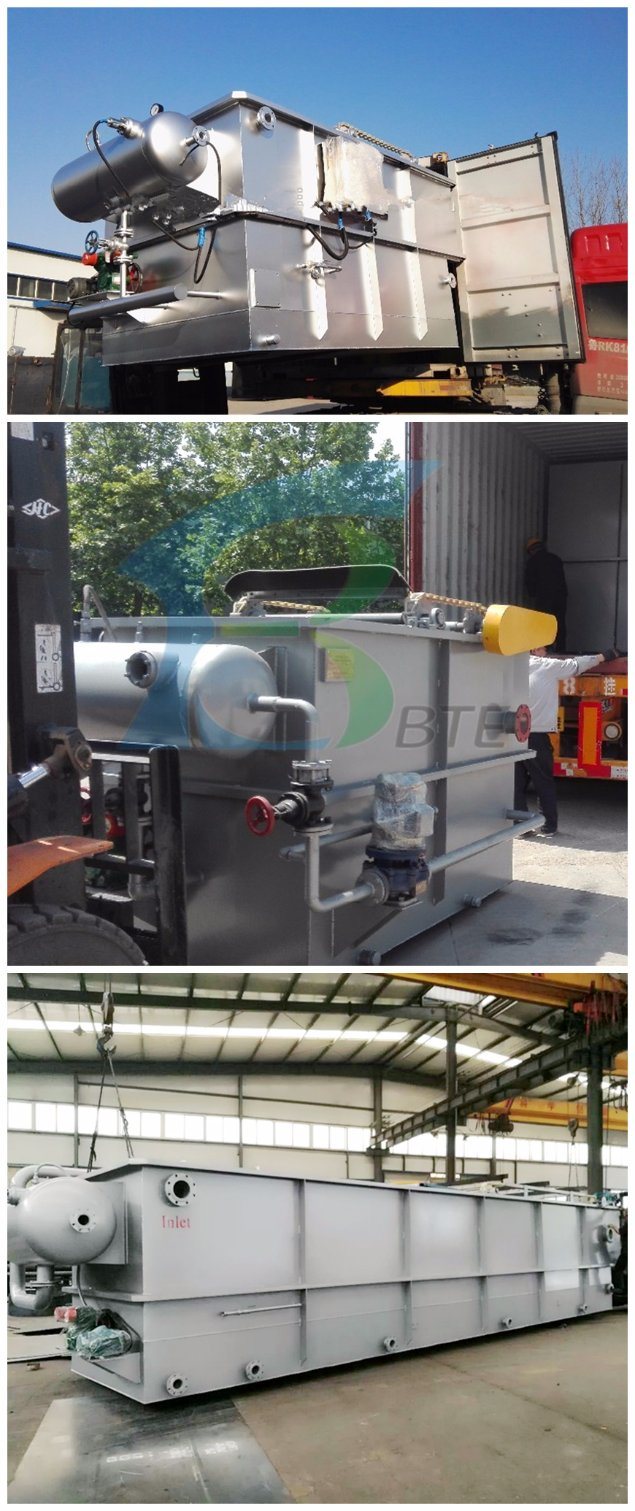

Oil Water Separation Dissolved Air Flotation Machine Flat-Flow Type
