Special Design Corn Hammer Mill for Feed Pellet Plant

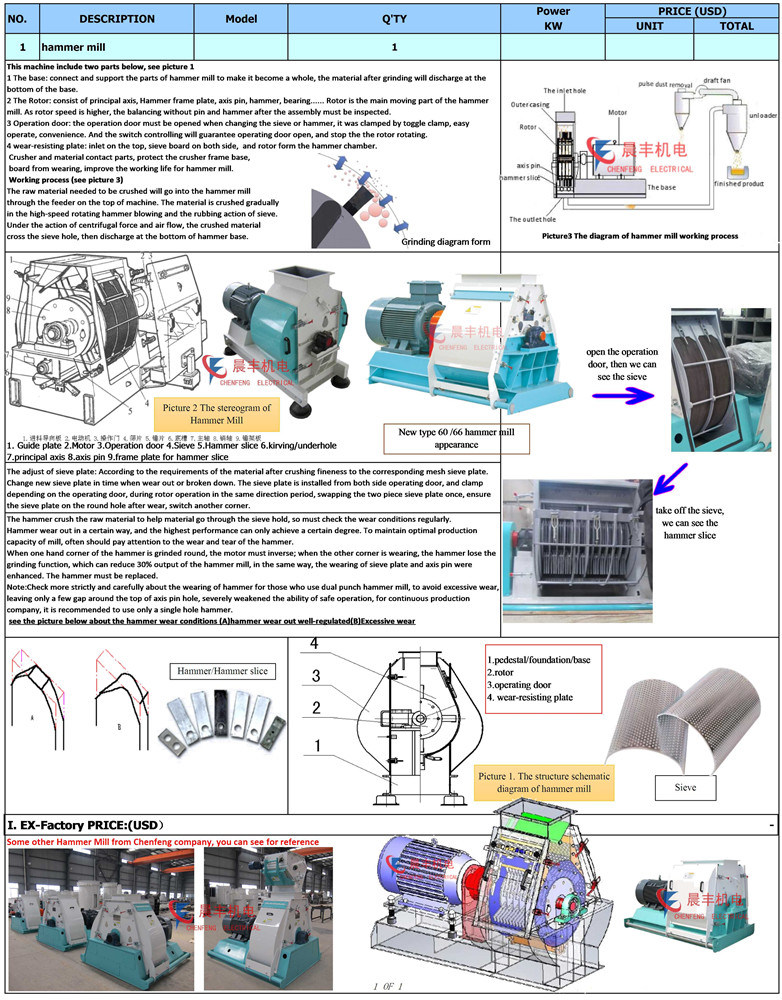

Main Features For Special Design Corn Hammer Mill for Feed Pellet Plant
This series of hammer mill can grind all kinds of course grinding raw materials, it is one of indispensable equipment of feed factory granulating process.
1. This series hammer mill adopt the steel plate welding structure, the motor and crusher rotor is installed on the same base, Straight league transmission through pin coupling,
2. The rotor dynamic balance test, Reversible rotor, bidirectional rotary feed.
3. Operation door have a safety interlock device to ensure the operation of rotor rotating door cannot be opened.
4. Inlet on the top of the mill, which can match various feeder structure, the hammer is lined symmetrically.
5. This machine has simple structure, strong and durable, safe and reliable, easy to install, easy to operation and maintenance, small vibration, high productivity.
6. It can be equipped with self-cleaning impeller feeding, belt magnetic feeding and other feeding modes. 7. Built-in grinding rotors are equipped to improve the efficiency by more than 25%.
8. Flexible screen press unit is used to avoid flee of ground material.
9. It can be equipped with air discharge base and be installed easily.
10. It is widely used for grinding of corn, sorghum, wheat and bean.
| Model | S F S P 56×36 | S F S P 56×4 0 | |
| Dia. of Rotor (mm) | 560 | 560 | |
| Width Of Grinding Chamber (mm) | 360 | 400 | |
| Speed of Rotor (rpm) | 2940 | 2940 | |
| Hammer linear speed (m/s) | 87 | 87 | |
| Hammer quantity | General grinding | 24 | 28 |
| Fine grinding | 48 | 56 | |
| Main Power (kw) | 22 | 22~30 | |
| Length (mm) | 1600 | 1600 | |
| Boundary dimension | Width (mm) | 888 | 888 |
| High (mm) | 1035 | 1035 | |
| Normal suction air(m3/min) | Fine grinding | 40 | 48 |
Performance index For Special Design Corn Hammer Mill for Feed Pellet Plant
This series hammer mill under being installed correctly, good air suction , using under normal circumstances, the performance indicators are as follows:
| Model | S F S P 56×36 | S F S P 56×40 | |
| Main Power (kw) | 22 | 22 | 30 |
| Output (T/h) | 1-3 | 3-5 | 4-6 |
Note: The above indicates are those when meeting the following conditions: raw material: corn, moisture content not higher than 14%, density no lower than 0.72t/m3, screen: hole diameter Φ3mm, hole-opening rate no less than 33%. Smaller power configuration is mainly used for small density material which is easy to crush.
WHO is ATS machine:

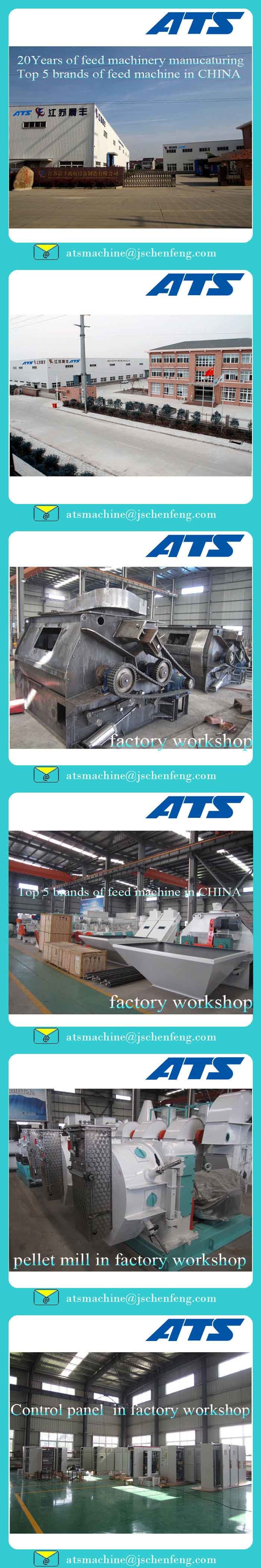

ATS machine is china top 5 famous brand feed machinery manufacturer and engaged in feed machine industry for 20years.We are not only doing quite well for china domestic market but also fantastic for overseas market. ATS machine certified by SGS , CE, ISO, GOST, along with a lot of patents. please take a look at of our factory scene:
ATS certification
Famous International Brands cooperate with ATS machine
Clients cooperation with ATS machine
ATS HONORS AND SHIPMENTS with ATS machine
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has 20 years of experience in this industry.
2. Q: How can I get to your company?
A: You can get a flight to Shanghai Airport. We will go to pick you up. (About 3-4 hours by car)
You can get a flight to Nanjin Airport. We will go to pick you up. (About 1 hour by car)
3. Q: How long is your warranty time?
A: One year(Calculated from the equipment arrives the customer's side.). After this period we will support you when needed. You will be welcome to contact us with any problem may happened.
4. Q: Will you send engineers to install the plant?
A: Yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: Do you have some foreign customers using your equipment?
A: Yes, we have.our company has established business relationships with customers from all over the world...
