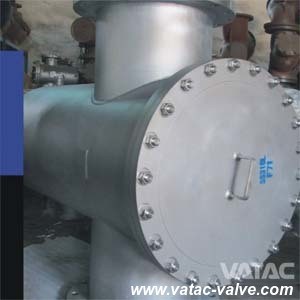

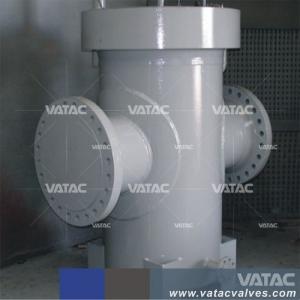

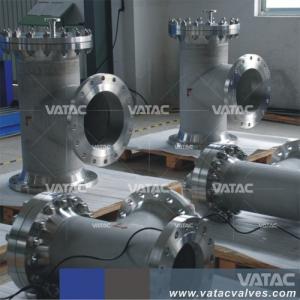

A351 Wpb Bolted Cap Basket Stainer Asme B16.34 Filter

Features:Compact DesignBolted or Threaded CoverPerforable or Mesh Lined Stainless Steel ScreensSuitable for Liquid, Gas or SteamMaterials Available in Cast Iron, and Ductile IronSize Ranges from 2" through 12"NBDesign & Manufacture&

Technical Feature

  • Shanghai, China
  • 8000ton Per Year
  • L/C, T/T, D/P
  • Reverse Osmosis
  • Environmental Protection, Chemical Industry
  • Non
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~10

PRIMARY PARAMETERS

Model NO.
GL41
Characteristic
Bolted Cap Basket Stainer Asme B16.34
Design & Manufacture
Asme B16.34
Pre-Temp. Rating
Asme B16.34
Face to Face
Manufacture Std
Ends Connection
RF, Rtj
Inspect & Test
API 598
Certificate 1
Dnv CE 0575
Certificate 2
ISO 9001
Certificate 3
API 600
Certificate 4
API 6D
Trademark
VATAC or OEM
Transport Package
Sea Worthy
Specification
API, ANSI, ASME, BS, DIN, JIS, GB etc.
Origin
China
HS Code
84818010

DETAIL DESCRIPTION

Features:

Compact Design
Bolted or Threaded Cover
Perforable or Mesh Lined Stainless Steel Screens
Suitable for Liquid, Gas or Steam
Materials Available in Cast Iron, and Ductile Iron
Size Ranges from 2" through 12"NB
Design & Manufacture: ANSI B16.34
Face to Face Dimension: Manufacture Standards
Ends Dimension: ASME B16.5, ASME B16.47
Inspect & Test: API 598
DESGN & MFT.APIENDS CONNECTIONRF
PRE-TEP. RATINGASME B16.34INSPECT & TESTAPI 598
F-F DIMENSIONANSI B16.10END CONNECTIONANSI B16.5
MARKINGMSSMSS SP-25FIRE SAFE DESIGN--
MARKINGMSSTBASPE. REQUIREMENTSN.A

Main Part & Materials
Part NamesPart Materials
BodyWPBSS304SS316SS304LSS316L
ScreenSS304SS304SS316SS304LSS316L
Bolts/NutsB7/2HB8/8B8M/8MB8/8B8M/8M
Suitable MediumW.O.G etc.HNO3, CH3OOH etc.
Suitable Temperature-29~425 °C-46~340 °C-46~340 °C-196~427 °C-196~427 °C
