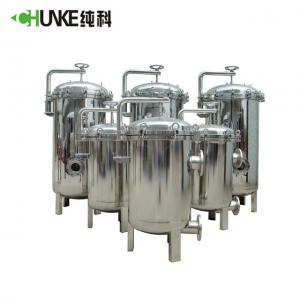

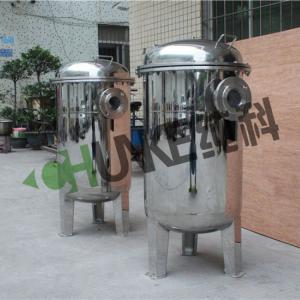

SS Filter Housing / Bag Filter for Microfiltration

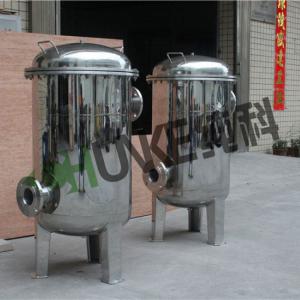

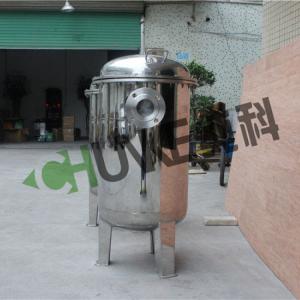

1. Bag filter
CK bag filter system is a new filter system. It is characterized with high precision, big flow, easy installation and maintenance. So it can be widely used in the field of liquid treatment: Foods, cosmestic, chemistry, medicine, texile, etc. It consists of the housing, support basket and filterbag.
2. Operating Element
The liquid which will be purged should be poured into the bag filter from the inlet, then the liquid flow from the inner surface of the bag to the outer surface. At last, it will be come into the appointed tank. On reverse, the impurirty will be held up in the bag. The filter can be recycled when changed another new bag.
3. Note
It can install all material; All precision's filter bag 1pcs. The highest working temperature is 45 ° C, The size of the two holes in the lid of the flter is G1/4. If the thread of the pressure gauage is metric standard, should add an adaptor.
4. Technical parameters:
Work pressure: Less than 0.4Mpa
Working temperature: Normal temperature
Surface treatment: Mirror polishing, matt, carbon steel spray paint
Material: SUS304, SUS316, SUS316L, carbon steel anticorrosive
Packing: Quartz sand, manganese sand, carbon, resin
| Model | Number of filter bag | Diameter | In/Outlet diameter | Flow rate | Thickness |
| CK6-Φ450×810×2 | 2 | Φ450 | 3" | 60m3 /h | 1.5mm |
| CK6-Φ500×810×3 | 3 | Φ500 | 3" | 90m3 /h | 2.0mm |
| CK6-Φ550×810×4 | 4 | Φ550 | 4" | 120m3 /h | 2.0mm |
| CK6-Φ600×810×4 | 4 | Φ600 | 4" | 120m3 /h | 2.0mm |
| CK6-Φ650×810×5 | 5 | Φ650 | 5" | 150m3 /h | 2.0mm |
| CK6-Φ700×810×6 | 6 | Φ700 | 5" | 180m3 /h | 2.0mm |
| CK6-Φ750×810×8 | 8 | Φ750 | 6" | 240m3 /h | 2.0mm |
| CK6-Φ800×810×9 | 9 | Φ800 | 6" | 270m3 /h | 2.0mm |
| CK6-Φ900×810×10 | 10 | Φ900 | 8" | 300m3 /h | 2.0mm |
5. Product Merits
1. SS304/316 316L for Choose
2. The unique seal system makes the filter more safety.
3. It can prevent the bag plunged into the support basket, no inner leak.
4. Good appearance and compact inner construct.
5. High precision, the filter range can be from 0.5-200um.
6. High efficiency of filter: Quick flow of liquid, big capacity of impurity.
7. The price is more competitive.
Packing&Delivery
Company Profile:
Guangzhou Chunke Environmental Technology Co., Ltd is a scientific enterpruise, which is specialized in water treatment equipment and accessories of research and development, production, sales and service.

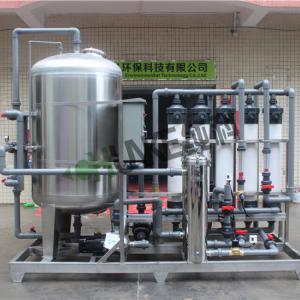

Production and management: Cartridge filter, bag filter, mechanical filter, lon Exchanger, Imitation FRP barrels, ozone mixing tower, sterile water tank, stainless steel membrane shells, hollow-fiber mambrane, ultraviolet radiation sterialization device, ozone generator, and water treatment equipment and so on.
