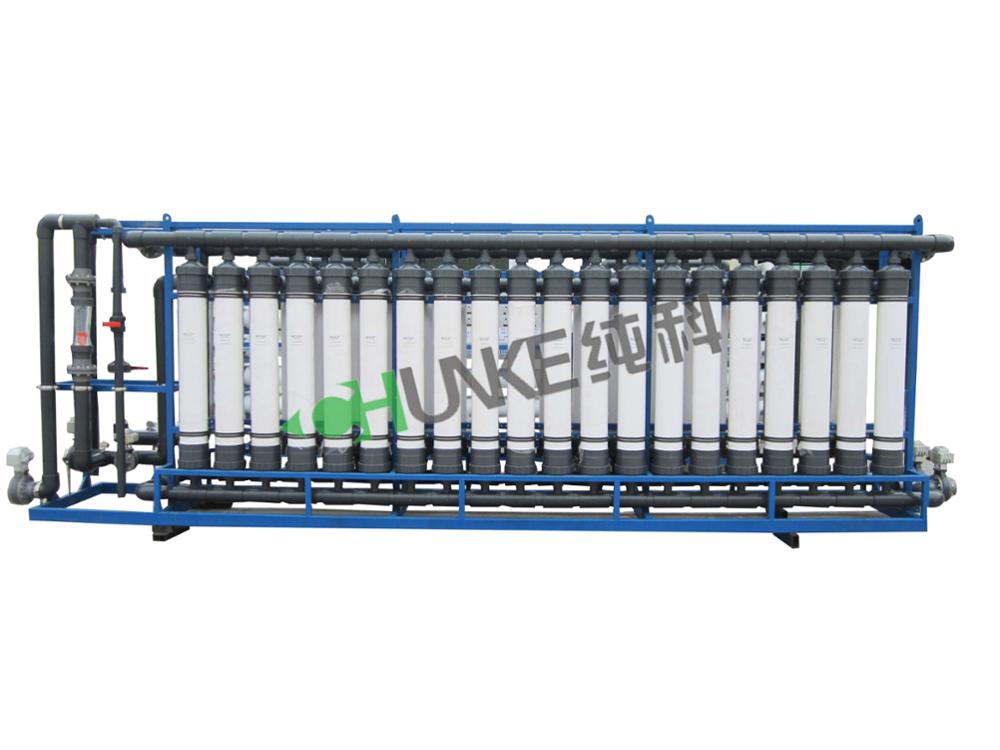

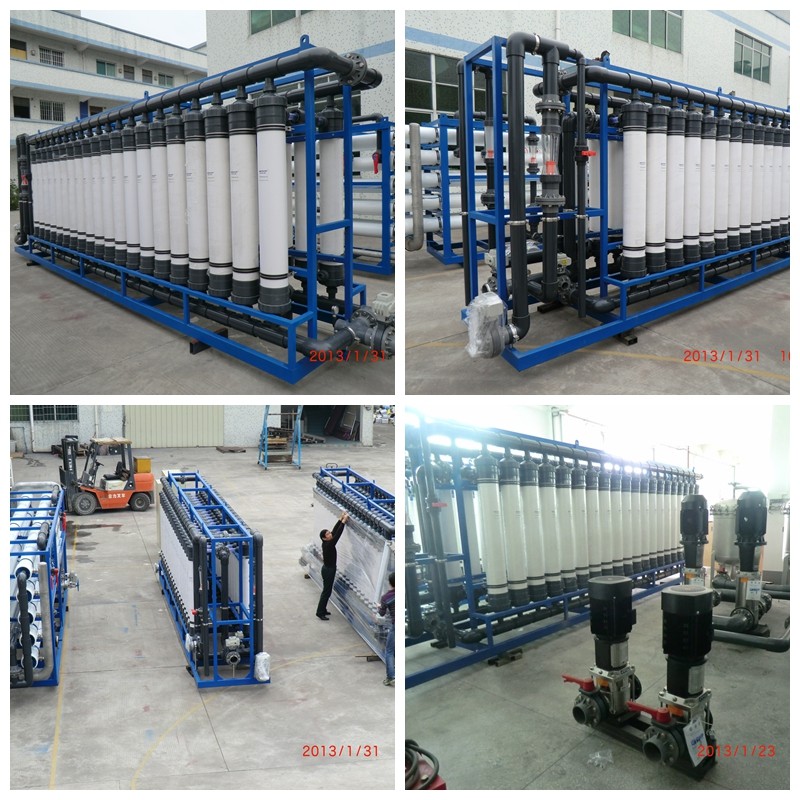

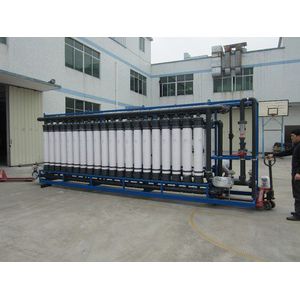

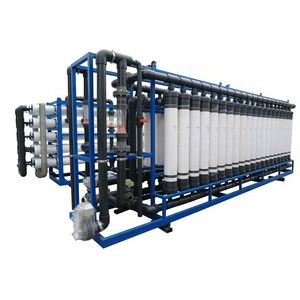

Ultrafiltration System For Water Purifier With UF Membrane Filter 100T/H Ultrafiltration Membrane Price
Typical industrial Reverse osmosis system as following:
1.Single stage RO membrane+Ozone Generator+UV sterilizer
Application: mineral water, direct drinking water, beverage&food,win.,ect
Process: 3 stages pretreatment--RO membrane--Disinfection-aftertreatment
Water outlet: Conductivity <10us.cm@25℃(support customize)
Production Capacity: 0.25-200m³ per hour

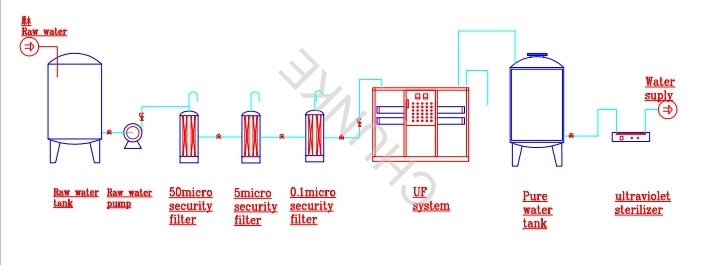

Reverse osmosis system for drinking water flow chart:
Raw Water Quality Standards Of Reverse Osmosis System:
| Items | Permissible Value | Probably Consequence of Excessive Standard | Improvement Suggestions | |
| Suspended solids | Tubidity | <1NTU | Sludge,colloid pollution | Flocculation and filtration |
| SDI15 | ＜5 | |||
| Metal oxides | Fe（mg/L） | ＜0.05 | Iron Pollution | Oxidation precipitation/filtration |
| Mn（mg/L） | ＜0.05 | |||
| Scale forming matter | CaCO3 | LSI＜0 | Concentrated water side does not permit scaling | Decrease recovery rate,PH value,or add scale inhibitor |
| Other insoluble salt | / | |||
| Organics | Oil | 0 | Organics and oil pollution | Air flotation,adsorption |
| TOC（mg/L） | ＜10 | Organics pollution | Activated carbon adsorption,filtration | |
| CODcr（mg/L） | ＜10 | |||
| BOD5（mg/L） | ＜5 | |||
| Si（mg/L） | ＜20 | Colloid pollution | ||
| PH | 3--10 | Too low or too high PH will accelerate the aging speed of membrane | Regulation of Acid-base | |
| Temperature | 5-45℃ | Low temperature will easily produce scaling of undissolved salt High temperature will accelerate the aging speed of membrane | Heat exhanger | |
| Oxidizer | Residual chlorine（mg/） | ＜0.1 | Membrane system will be oxidized | Reductant or aclivated carbon adsorption |
| Ozone and others | 0 |
2. Double stage RO membrane+EDI
Application: medical industry-used water,electron industry, hopsital,chemical industry,electronplate industry.,ect
Process: 3 stages pretreatment--Doube stage RO membrane--EDI-aftertreatment
Water outlet: Resistance>10MΩ.cm@25℃(support customize)
Production Capacity: 0.25-200m³ per hour
3.Reverse osmosis system optional:
RO membrane: 8040 or 4040 DOW or Hydranautics USA
RO vessel housing material: FRP or SUS304/316
Frame: SUS304 or 316
Pipe: SUS304/PE/FRP
High pressure pump: CNP pump or Grundfos pump
Pure Water tank: SUS304 or SUS316
Control: Manual or PLC(Siemens/delta) control
We can also add some special module to meet customers application ,
like scale inhibition device, babbit disinfection device,heat exchanger and other.
Business scope
Customer from Egypt, they bought 1m3/hr,2m3/hr ro system from us at 2012.
Used in food industry.
Business scope
Customer from Russia , they bought water treatment products from us at 2015.
Business scope
Customer from Bangladesh, they bought 2m3/hr ro system with PLC contorl from us at 2014.
Used for drinking water.

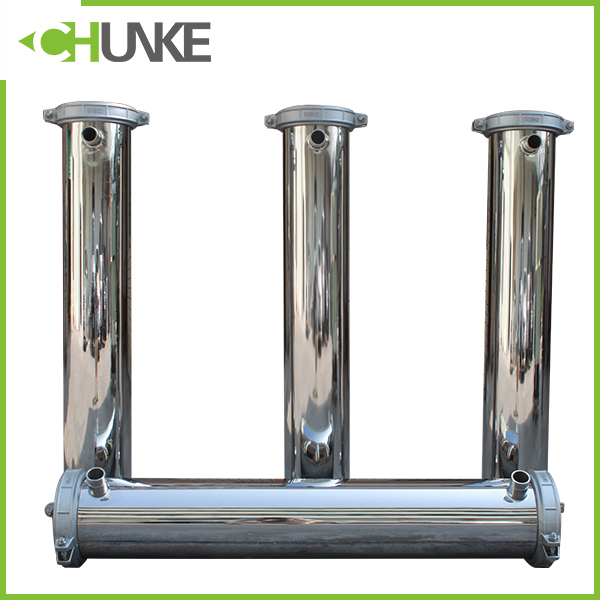

Membrane housing

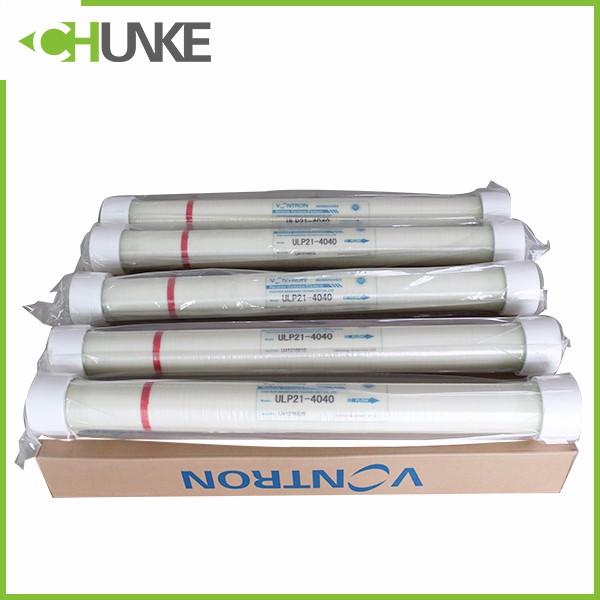

Vontron RO membrane

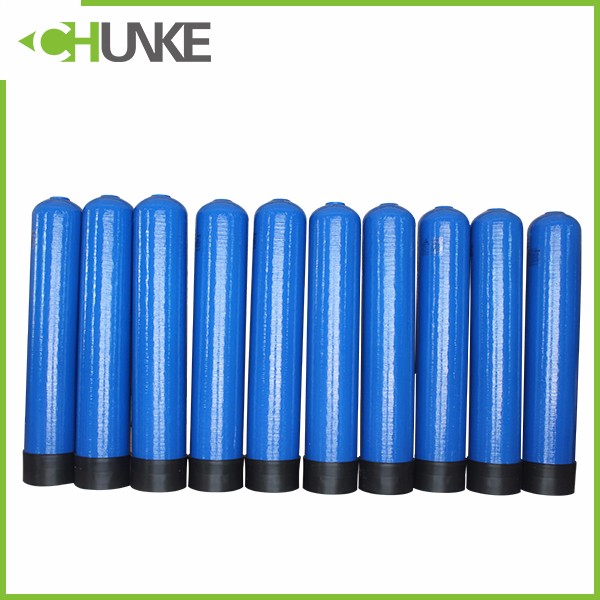

FRP tank
Q: Are you trading company or manufacturer ?
A: We are a factory specialized in in development, production, sales and service of water treatment equipment and accessories. We are specialized in reverse osmosis equipment, ultrafiltration equipment, EDI electric desalination system, sea water desalination syatem, water treatment spares . And Water treatment accessories like: cartridge filter, active carbon filter, water softer, mechanical filter, bag filter, Ozone mixing tower, ion exchanger, stainless steel shell, control valve, FRP membrane housing. FRP tank, UF membrane, RO membrane, water pump, UV Sterilizer , consumables series, filter material , agentia and so on .
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: How about the after service?
A: Our Company is responsible for allocating professional engineers to the site for installation and debugging, conducting comprehensive technical training, explaining detail of technical drawings, working principles, techniques flow chart, operation manuals etc. After the training, the operators can fully understand the techniques of the whole system. They can find general fault of the system and do maintenance. but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer.
If you have another question, pls feel free to contact us as below:
Tel: 86-020-86314618
Mobile : 86-18124265503
Fax: 86-020-22895083
Skype: gzcke4
Contact person : Abby Ren
Website: www.gzchunke.com
Address: No.8, Suyuangzhuang, QingHu Village, Junhe Street, Baiyun District, Guangzhou. China
PS:Our company Molecular can customize different reverse osmosis system according to customers specific demand.
