Litree UF Module Water Treatment Machine

Water treatment machine Company InformationLITREE company is the biggest hollow fiber UF membrane manufacturer in China, we provide quality pressure vessel UF module, integrated UF purifying equipment, immersed membrane for MBR system, and we also i

Technical Feature

  • 1 Piece
  • 500PCS/Month
  • Carton
  • L/C, T/T, D/P, Paypal, Money Gram, Western Union
  • Physical Treatment
  • Industrial, Agriculture, Hospital
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Model NO.
LH3-1060-V
HS Code
8421999000

DETAIL DESCRIPTION

Water treatment machine
Company Information

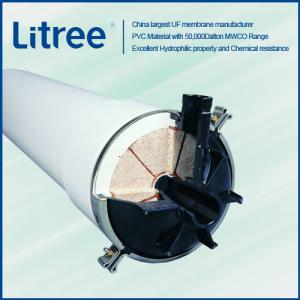

LITREE company is the biggest hollow fiber UF membrane manufacturer in China, we provide quality pressure vessel UF module, integrated UF purifying equipment, immersed membrane for MBR system, and we also is the first brand in Chinese residential UF filter market.Technical Parameters



Model

LH3-0650-V

LH3-1060-V

Filtration model

Inside-out

Inside-out

Designed water flux (m3/h)

0.6~1.6

2.4~6.4

Designed water flux (L/m2/h)

60~160

Filtration water turbidity

<0.1NTU

General coliform group separation

No detection in each 100 ml water sample

Feces coliform group separation

No detection in each 100 ml water sample

Bacteria separation

No detection in each 1 ml water sample

Standard membrane area (m2)

11

40

Hollow fiber amount (unit)

3940

11000

Net weight (kg)

18

37

Wet weight (kg)

26

58

Module dimensions (mm)

187x1398

277x1715

Membrane type

Double layer hollow fiber

Filter membrane material

Hollow fiber membrane

Membrane housing material

PVC

Material of enveloping glue on ends

Epoxy resin

Molecular weight cutoff

50,000 Daltons

Inside/outside diameters of hollow fiber (mm)

1.0 /1.6

Notice: Design flux depends on raw water quality

No.

Model

Design   flux (m3/h)

Backwash   flux (m3/h)

Dimension   (mm) L*W*H

Weight   Dry/Wet (KG)

1

LG0650×2-E

1.0-2.0

3.5

975×880×1750

260/300

2

LG0650×3-E

1.5-3.0

5.25

1220×880×1750

280/340

3

LG0650×4-E

2.0-4.0

7

1465×880×1750

300/380

4

LG0650×6-E

3.0-6.0

10.5

1875×850×1850

350/470

5

LG0650×8-E

4.0-8.0

14

2350×910×1900

390/550

6

LG0650×10-E

5-10

17.5

2580×910×1900

430/630

Notice: Design flux depends on raw water quality.

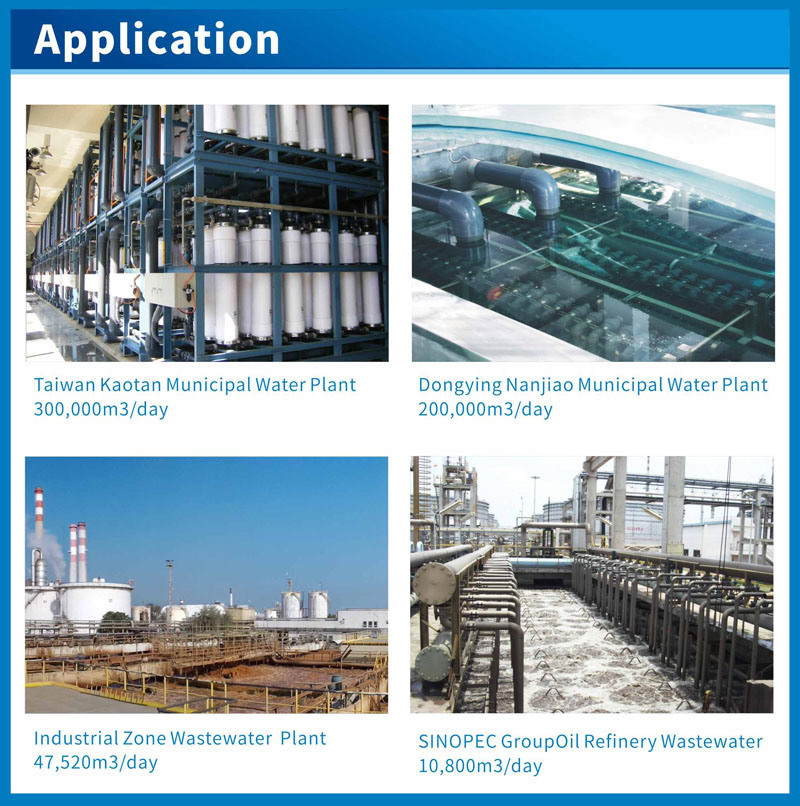

Field Of Application
- Turbidity Removal For Wine; Sterilization And Turbidity Removal For Fruit Wine, Grape Wine, And Yellow Wine.
- Drinking Water Treatment In Cities, Towns And Rural Area.
- Get Rid Of Pyrogenfor Pharmacy Water.
- Concentration Treatment Of Food, Zymolysisand Milk.
- Various Dialysis And Blood Filtration In Medical Treatment.
- Treatment Of Municipal Water, Surface Water And Well Water For Drinking.
- Pretreatment And Post-Treatment Of Reverse Osmosis, Raw Water Includes Seawater, Surface Water, Well Water And Sewage Water, Etc.
- Recycle Use Of Condensation Water
- Treatment Of Manufacturing Water For Food And Beverage.
- Deep Treatments Of Wastewater For Recycle.
Litree UF Module Water Treatment Machine
Litree UF Module Water Treatment Machine
Product Overviews
  • Household water filter
  • Commercial / public water filter
  • Industrial UF membrane module / skid (inside-out & outside-in pressurized vessels)
  • Immersed / submerged / packaged outside-in UF membrane module
  • Portable water filter
