Laboratory Miniature Multi-Functional Extraction Evaporator Concentrator (ACE-ZFQ-K2)

 Laboratory  Multi-functional Extraction Evaporator Concentrator (ACE-ZFQ-K2)  UsageThis equipment is suitable for extracting and concentrating the effective component from Chinese herbas and other botanical. Feature1. This equipment has excell

Technical Feature

  • Ningbo, China
  • 20sets Per Month
  • L/C, T/T, Western Union, Paypal
  • New
  • Customized
  • 110V-480V Customized
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
ACE-ZFQ-K2
Main Material
SUS304/SUS316L
Warranty
1 Year
Inner Wall Treating
Mirror Polish
Heating Source
Steam Heating /Hot Oil Electric He
Work Pressure
-0.090MPa
Function
Remove Moisture From The Feeding
Type
Extraction and Concentration
Volume
50L~500L
Product
Evaporator Concentrator
Trademark
ACE
Transport Package
Soft Clothed or Wooden Box
Specification
CE, GMP
Origin
Wenzhou, Zhejiang, China
HS Code
8419899090

DETAIL DESCRIPTION

 Laboratory  Multi-functional Extraction Evaporator Concentrator (ACE-ZFQ-K2)


 Usage

This equipment is suitable for extracting and concentrating the effective component from Chinese herbas and other botanical.



Feature
1. This equipment has excellent manufacture,complete collocation,simple operation.It is consist of extracting tank,concentrated pot,storage tank for liquid material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric heating,the user can operate it only to engage the steam or electricty.


2. This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.

3. The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.

4. This equipment can configure with PLC control system according to user's demand and control the parameter during the processing to enhance the production efficiency and quality.

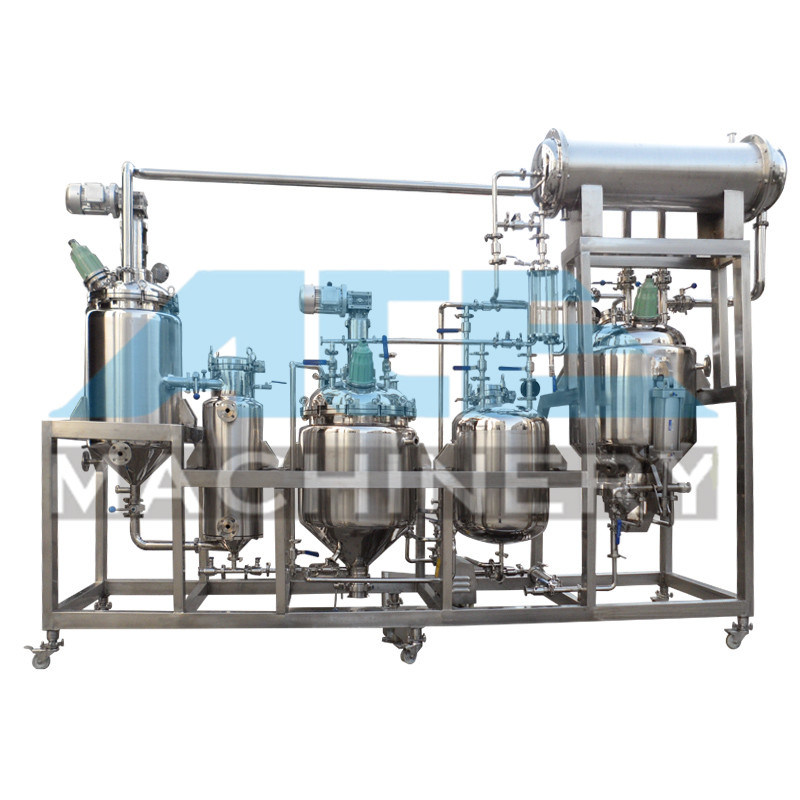

Laboratory Miniature Multi-Functional Extraction Evaporator Concentrator (ACE-ZFQ-K2)

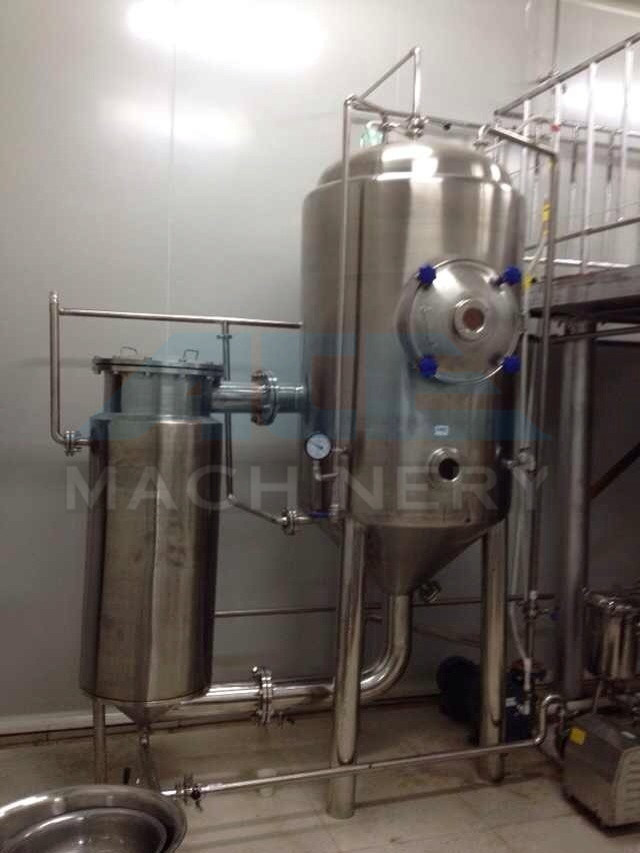

Laboratory Miniature Multi-Functional Extraction Evaporator Concentrator (ACE-ZFQ-K2)

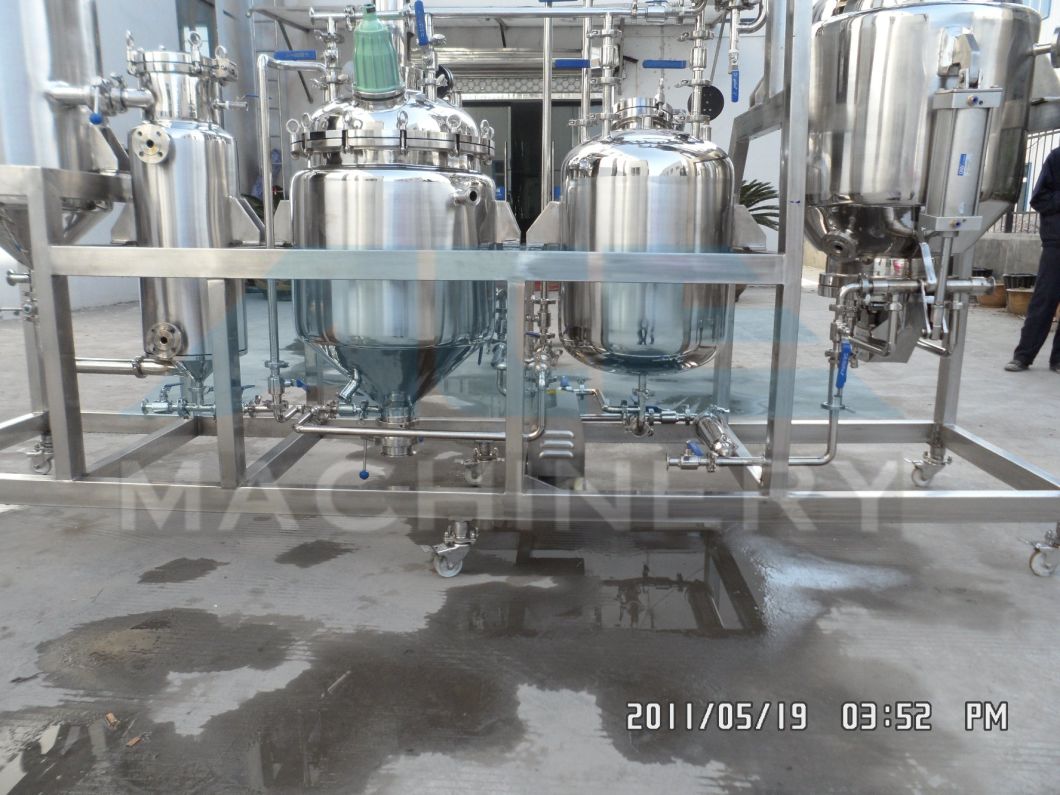

Laboratory Miniature Multi-Functional Extraction Evaporator Concentrator (ACE-ZFQ-K2)





Composed by: extractor, filter, pump, heater, evaporator, condenser, cooler, oil separator and project control computer.

After dipping and heating, the lixivium liquid of traditional Chinese medicine will be pumped into the external heater for heating from the bottom of extracting tank.

The extra pump liquid will enter into heater for heating from the bottom of the extracting tank to reflow and play its partial mixing effect. After the extracting liquid is heated by the heater, it will be evaporated instantly and separated by the separation concentrator.

The twice steam will enter into the extracting tank, transmitting the heat to the solvent in the extracting tank, and also playing mixing effect.

The residual air will enter into the condenser and become solvent, and  after reflux it will enter into the extracting tank. It will enter into the heater for condensed liquid to carry out heat exchange and make the temperature of condensed liquid approximate to the boiling point of solution in the extracting tank.

Then the residual air will enter into condenser. As the solvent has large reflux quantity, the density of solute  will be rapidly dissolved The extraction and concentration are synchronous with continuous discharge of concentrated liquid,  thus, the process is greatly reduced and only requires 4~6 hours.










Technology and parameter

Advantage

By adopting reduced pressure concentration, it has short concentration time and does not destroy effective content of heat-sensitive material.

The parts in contact with material in this equipment made of Ocr18Ni9 stainless steel with good corrosion resistance and long durability and in conformity with sanitary requirement for medicine.



Pcaking: Standard packing
 Wooden case is avaliable for multifunctional extraction evaporation concentrator

Delivery: 1-45 days after the deposit confirmed

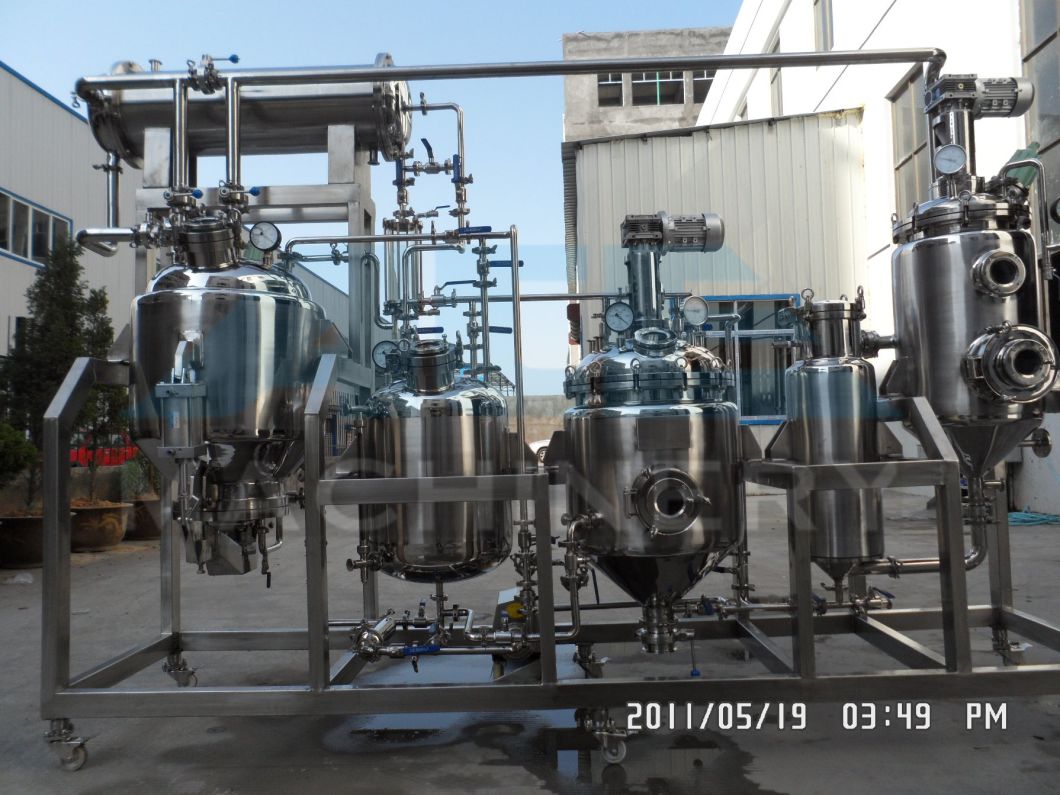

Laboratory Miniature Multi-Functional Extraction Evaporator Concentrator (ACE-ZFQ-K2)
