$Product Name$

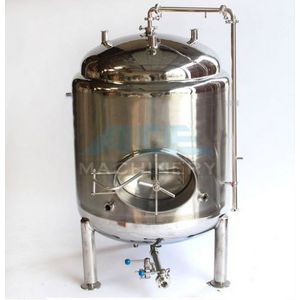

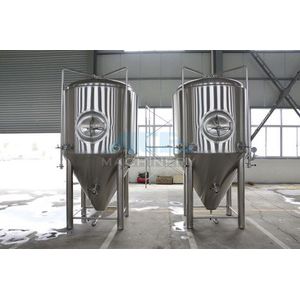

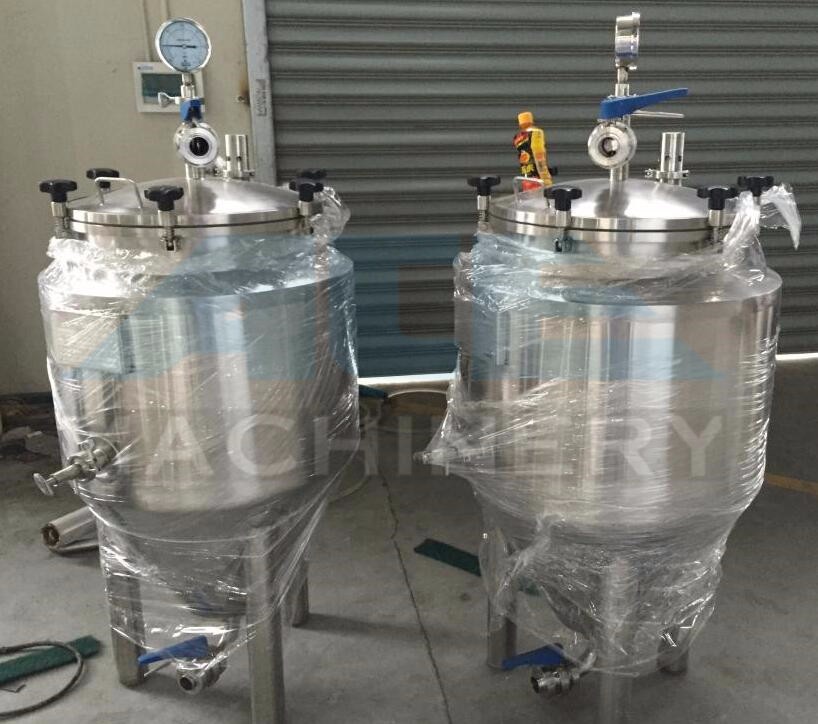

| Stainless Steel Fermenter 200l Price Fermentation Tank | |
| Company introducation | We ACE machinery is a production enterprise of dairy, food and beer-making equipment, alongside biological engineering, chemical containers, and bespoke products. Our products are widely used in beer production, pharmaceuticals, beverage industries, biotechnology and other fields. |
| Usage | It is used for Wine fermentation & brewing. It applies in brewing industry. |
| Material | Stainless Steel 304 or 316L |
| Technology & Design | 1). It is made of double jackets with dimple jacket and insulation layer filled with PU which is imported from Japan. |
| 2). Dish top, conical bottom for good fermenting, improving the quality of beer as well as breeding yeast, cylinder body. | |
| 3). As to polish, interior layer and dish top will adopts 3A mirror polish while exterior layer and conical bottom adopts 2B satin polish. | |
| 4). As to transition of interior, we will adopt arc to make sure that there is no dead corner of sanitation. | |
| 5). 10-30% headspace, 60 degree cone, rotating racking arm is designed according to your demands | |
| 6). All clamps valve and fittings except for cold water inlet and outlet which is Tri-clamp. | |
| 7). As to the thickness, we can make it according to your requirement. | |
| 8).etc | |
| Advantage | 1.Configuration details can be designed as your requirements |
| 2.Competitive price and also higher quality tank. |
| Working Volume (L) | Dimension of Tank (D*H) mm | Total Height (H) mm | Diameter of Inlet&Outlet (mm) | Diameter of Inlet&Outlet (mm) | Diameter of Inlet&Outlet (mm) |
| 500 | Dia 800*800 | 1750 | Dia 38 | 50 | 440*320 |
| 1000 | Dia 1000*1200 | 2200 | Dia 38 | 50 | 440*320 |
| 1500 | Dia 1100*1400 | 2500 | Dia 38 | 50 | 550*430 |
| 2000 | Dia 1200*1500 | 2700 | Dia 38 | 50 | 550*430 |
| 3000 | Dia 1400*1700 | 3150 | Dia 51 | 50 | 550*430 |
| 4000 | Dia 1500*2100 | 3450 | Dia 51 | 50 | 550*430 |
| 5000 | Dia 1600*2200 | 3590 | Dia 51 | 50 | 550*430 |
| 6000 | Dia 1700*2200 | 3650 | Dia 51 | 50 | 550*430 |
| 8000 | Dia 1800*2700 | 4350 | Dia 51 | 50 | 550*430 |
| 10000 | Dia 2000*2800 | 4450 | Dia 51 | 50 | 550*430 |
| $Product Name$ |
| 1). Made of single-layer,double layer or three layer stainless steel structure. |
| 2). Materials are all sanitary stainless steel. |
| 3).Humanized structure design and easy to operate. |
2mm Outer Cooling Shell Thickness
2" Thermal Polyurethane Insulation with both cone and shell coolant jackets
Pressure/Vacuum Relief Valve
Pressure Gage, Liquid Filled
Large Dial Thermometer with a 10" probe
2" Spinning CIP Ball
4" Hop Port
440mm x 330mm Shadowless Manway (Large and Clean)
Tri Clamp Fittings on all ports including Gycol Ports
NPT on temp control thermowell
Sample Valve
20 PSI working pressure, Tested to 45 PSI
Internally Polished to 2n Sanitary Finish
All Fermenters are designed for 25% Head Space
3 butterfly valves, outlet, racking arm, cip
ACE Machinery specialize in sanitary valves,pipe fittings and pumps,which is applied for milk,food,beer,pharmaceutical and other fields.We can quote you favourable price&high quality&best after-sale services.$keyword$
1.Brewery equipment
2.Sanitary Valves,such as butterfly valves,check valves,diaphragm valves,ball valves,pneumatic reversal valves,ect.
3.Sanitary Pumps,such as Sanitary Centrifugal Pumps,Sanitary Rotary Lobe Pumps
4.Sanitary Manhole Covers,such as square/round/elliptical manhole covers.
We have own factory. We get CE certification.We specialize in manufacturing beer brewing equipment.
2).Quality and price
We have professional purchasing team. Comparing multiple vendors,choose
best raw materials and the most preferential price. We have skilled worker and
strict quality control system,provide the best quality products to our customers.
3).Convenient transportation
Our company is located in Wenzhou Zhejiang. It just takes 15minutes from Longwan Internation airport to our factory or 50 minutes from the Train Station.
4).Clear order process
We have clear order process. From mails &calling→Order confirmed→Make advance payment→Workshop produce→Pay the balance→ Arrange goods delivery→Buyers receiving confirmation→Satisfaction survey.
5).Quality of service
We will provide photos make our customers to know the order status.Of course,we welcome our customers to our factory to inspect any time!200l Stainless Steel Fermenter
