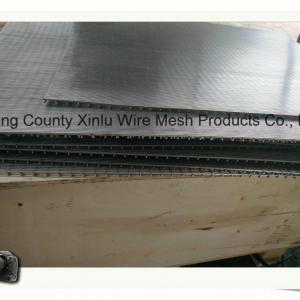

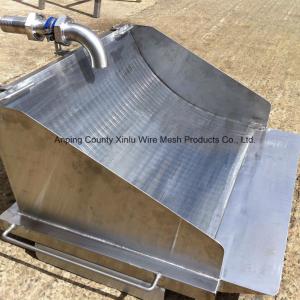

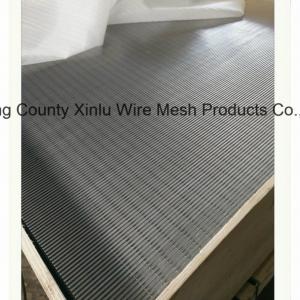

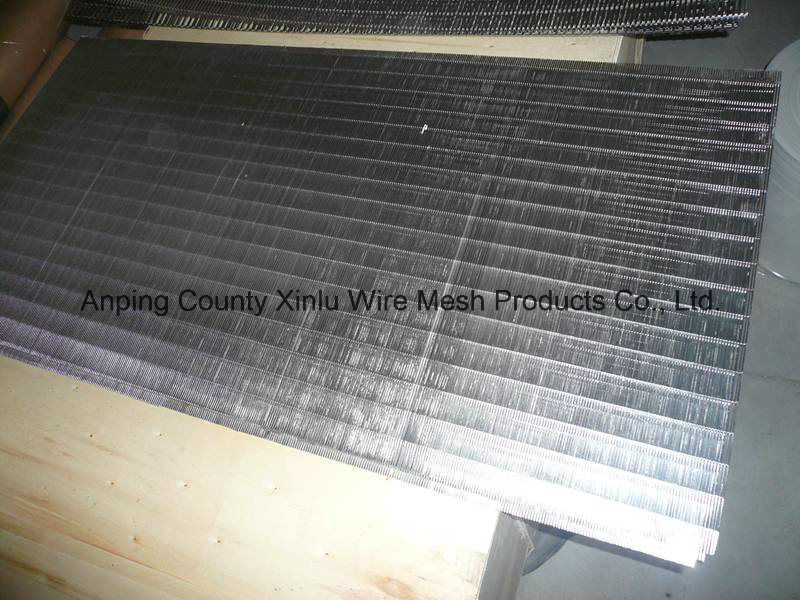

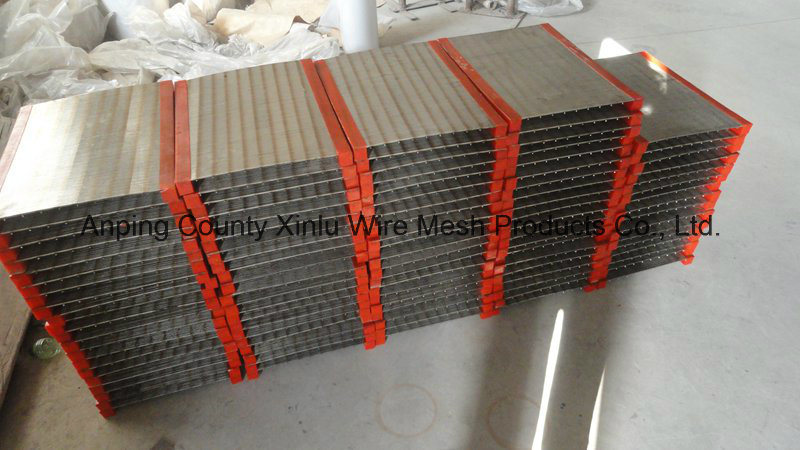

Flat Wedge Wire Panel, Wire wrapped panel, Johnson screen plate, profile wire slot panel, v wire slot panel, v wire flat screen, dewatering screen panel, support grids, stainless steel screen plate., sieve bend screen, arc screen plate, curted grids, camber mesh, wedge wire grating, support grids
Materials: 304 316L stainless steel, also can be made according to the customers requirement.
The wires can be as narrow as 0.03 in. / 0.76 mm These screens are available in standard Vee-Wire welded construction

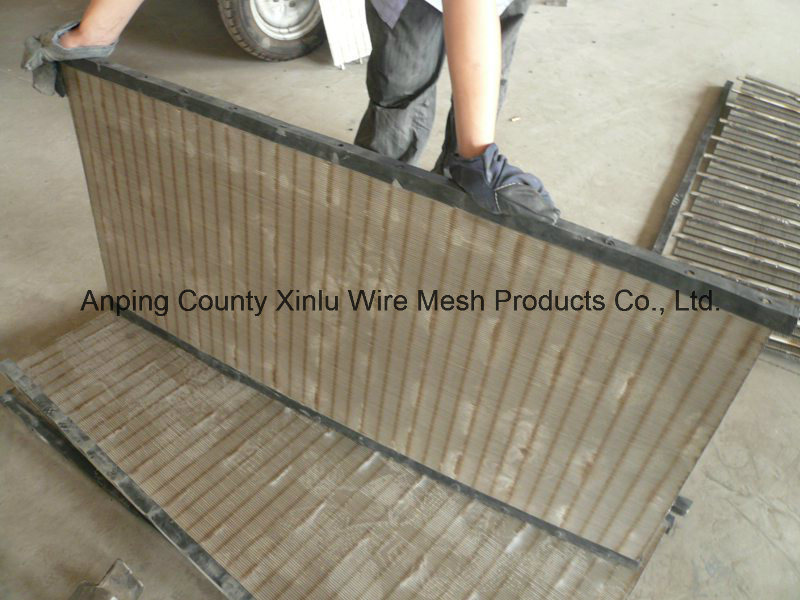

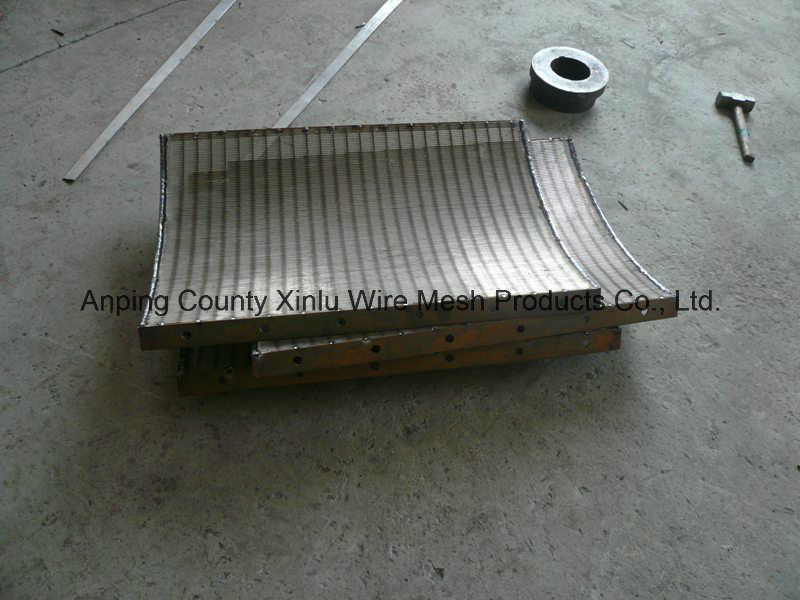

Our innovative split-sieve concept allows for easy screen handling of the larger width 120° Pressure fed screens, particularly those 62.9 in. / 1.598 m and over. This is a major benefit because of the reduced size and weight of the screens and it reduces the risk of injury.

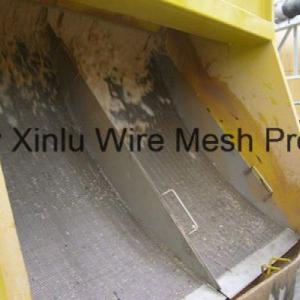

These 120° Pressure fed screens can be designed for use in both static and vibratory assemblies and could be used for filter with both sides.
Materials: 304 316L stainless steel, also can be made according to the customers requirement.
The wires can be as narrow as 0.03 in. / 0.76 mm These screens are available in standard Vee-Wire welded construction
Our innovative split-sieve concept allows for easy screen handling of the larger width 120° Pressure fed screens, particularly those 62.9 in. / 1.598 m and over. This is a major benefit because of the reduced size and weight of the screens and it reduces the risk of injury.
These 120° Pressure fed screens can be designed for use in both static and vibratory assemblies and could be used for filter with both sides.
| PROFILE WIRE | ||||||||
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | ROUND | |||||
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
