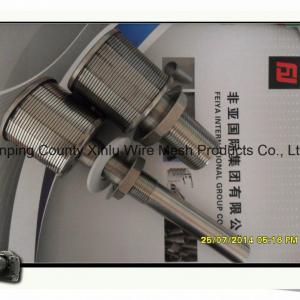

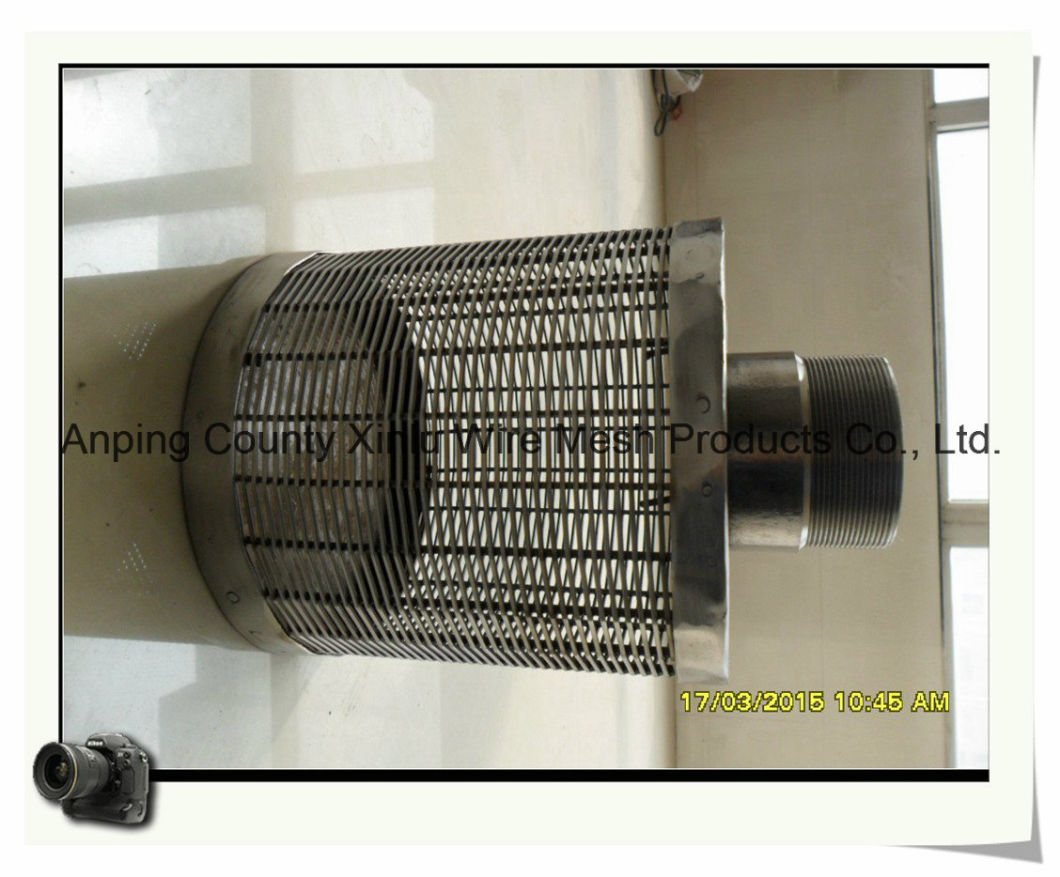

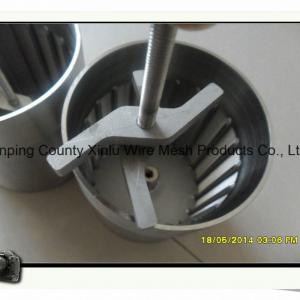

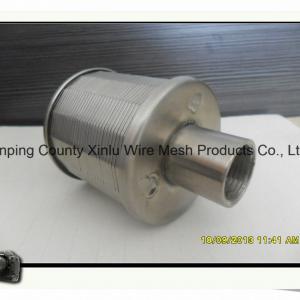

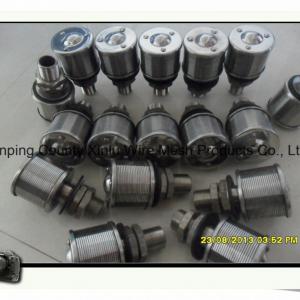

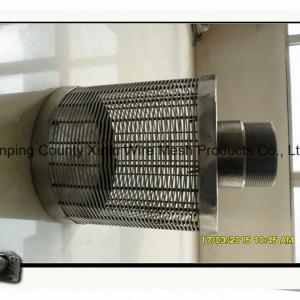

Ss340 316 V Wire Nozzle Strainer for Ion Exchange Resin Facility

Technical Feature

Tianjin, China

300PCS Per Day

T/T

Stainless Steel Wire

Square

Liquid Filtration, Screening, Solid-Liquid Separation, Gas-Liquid Separation, Gas Filtration

Send Project Inquiry

Add Inquiry List

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Model NO.

XL-FY350

Flow

Foti, Fito

Slot / Gap

0.1-60mm

End Connection

Welded Rings, Threaded, Flange

Trademark

Transport Package

to Order

Specification

to order

Origin

Xinlu Wire Mesh, Anping County

HS Code

84139100

DETAIL DESCRIPTION

Wedge wire strainer nozzle, stainless steel filter nozzle, screen nozzle johnson type, water&gas strainer
nozzle, changeable filter element, wire wrapped nozzle pipe, , water filter nozzle, single tube type valve
bounet, double tube type diving helmet, double flow screen nozzle, single flow screen nozzle. filter
bottom nozzles, pipe screens, water input device, resin sprayer fittings, water distributor, center
distribution drainage device, Resin Traps,stainless steel lateral arm, lateral pipe, head lateral, wedge
wire candle filters, stainless steel screen candle, resin traps fitting, intake strainer screens, filter bottom
nozzles, inlet distributor, distributor traps, outlet basket, scale traps, distributor basket
This is wedge wire screen filter equipment.
Material: Stainless steel 304, 304L, 316, 316L, 321or according to you.
Wire diameter: 1.5x2mm, 2x3mm
Screen length: 0.5, 0.8, 1, 1.2, meters or according to you.
Pipe length: 1.5, 1.8, 2, 2.5, 3, 5meter.
Diameter: 50, 80, 90, 110, 120 mm
Slot size: 1mm also achieved upon request.
Product structure: Wedge wire screen, pipe, cap.
Surface treatment: Polishing, chroming

PROFILE WIRE
WIDTH(mm)	1.50	1.50	2.30	2.30	1.80	3.00	3.70	3.30
HEIGHT(mm)	2.20	2.50	2.70	3.60	4.30	4.70	5.60	6.30

SUPPORT ROD						ROUND
WIDTH(mm)	2.30	2.30	3.00	3.70	3.30	Ø2.5--Ø5mm
HEIGHT(mm)	2.70	3.60	4.70	5.60	6.30	----
