Municipal Water Filtration Multi-Media Filters Water Treatment

Municipal Water Filtration Multi-media Filters water treatmentmunicipal water filters may utilize pre filtration and or post filtration depending upon the turbidity and particle load of the raw source. This may consist of sand, bag filters, cartridge

Technical Feature

  • Shanghai, China
  • 5000 Sets/Year
  • L/C, T/T, D/P, Western Union, Paypal
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~3

PRIMARY PARAMETERS

Model NO.
YLD-MF-2800
Usage
Environmental Protection, Water Treatment
Style
Vertical
Certification
CE
Flow Rate
75-125 T/Hr
Tank Size
1800*1950
Power Supply
380V/220V/110V 50Hz/60Hz
Working Pressure
0.6MPa/1MPa
Working Flow Speed
20-35 M/Hour
Transport Package
Plywood Case Into Container
Origin
Jiangyin, Jiangsu
Type
Niphos Water Filter
Motive Force
Pressure
Performance
Efficient Filtration
Product Name
Quartz Sand Filter
Inlet and Outlet Diameter
Dn150mm/6 Inch
Quartz Sand
Buyer Provided
Control Mode
Automatic
Working Temperature
5--40c
Trademark
YLD
Specification
CE, SGS
HS Code
8421219990

DETAIL DESCRIPTION

Municipal Water Filtration Multi-media Filters water treatment

municipal water filters may utilize pre filtration and or post filtration depending upon the turbidity and particle load of the raw source. This may consist of sand, bag filters, cartridge filters, multi-media or any of these in combination along with our diatomaceous earth filters.
Municipal Water Filtration Multi-Media Filters Water Treatment
Sand: Used in the removal of suspended solids and high turbidity.
Bag or Cartridge: For high flow rates may be used in a housing featuring multiple bags or cartridges. This would be used to remove particles to 5 microns to assist the D.E. filter where heavy amounts of suspended solids and high turbidity are present.
Multi-Media: These filters consist of multiple layers of different media size. This allows for high loading rates of suspended solids. Multi -media filters can remove sediment down to 10 micron range.
Activated carbon or Carbon Block: Typically used for post filtration activated carbon or carbon block filters remove unpleasant taste and odors, dechlorination, or organic contaminant absorption.
 Municipal Water Filtration Multi-Media Filters Water Treatment

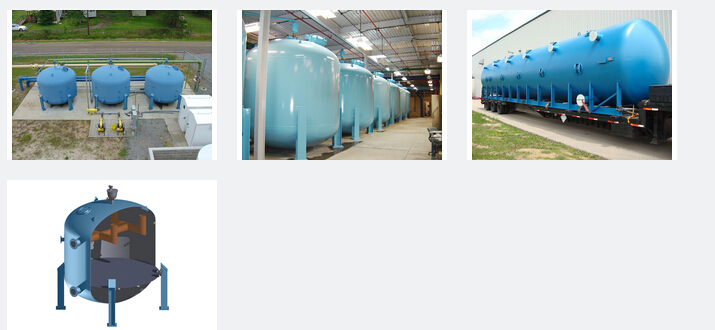

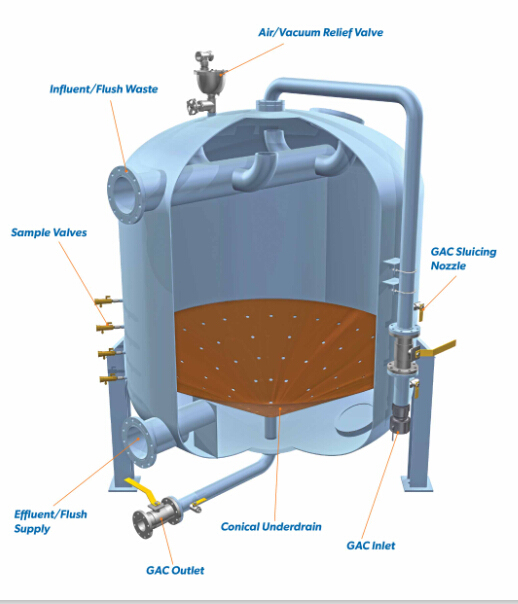

 Pressure vessels can be either carbon steel with an epoxy coating or made of stainless steel. They are designed to work at pressures up to 150 psi. Vacuum vessels are made of stainless steel and where space is tight provides the most square footage of municipal water filtration.

Municipal Water Filtration Multi-Media Filters Water Treatment

Plant description

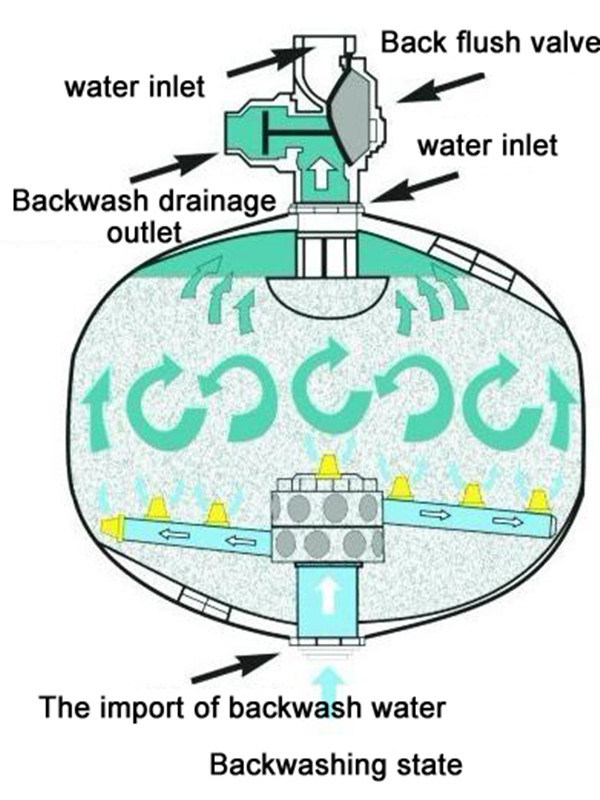

Through the use of automatically controlled backwashing, the filter will operate "on-line" for extended periods of time prior to the short backwashing cycle. Automatic filter operation is monitored on both elapsed time as well as pressure differential. When the controller "calls" for a backwash as a result of pressure differential or elapsed time, the backwashing function utilizes a portion of the clean filtered water produced by the system to clean the media bed. Single tank systems utilize unfiltered water for backwashing. Optional external backwash water sourcing systems are available for both single and multiple tank systems.



Advantages:


Multi-media carbon/sand filter tank in water treatment

A) High filtration efficiency.
B) Low resistance, high capacity, high sewage interception capability, long service life.
C) High cleanness of filter and no pollution of filtering media.
D) Anti acid-base.
E) High strength, high temperature resistant, no deformation.
F) Low purchasing cost and operation cost, easy to clean and replace filter cartridge.
G) Easy operating & maintenance

Municipal Water Filtration Multi-Media Filters Water Treatment

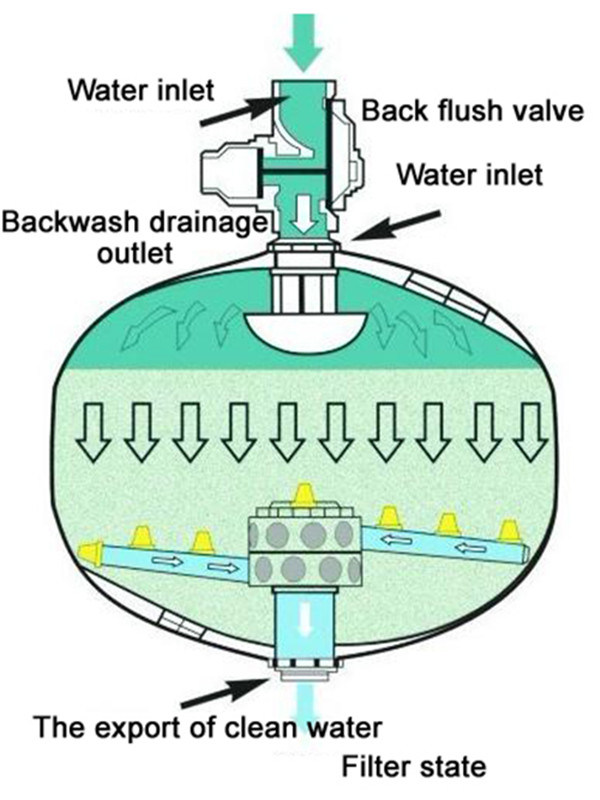

Working principle:


For the by-pass filtration, the filter is installed in the main circulating pipeline to filter all the circulating water,
 but apart of the circulating water led from the main circulating pipeline is filtered, which is a repeated
circulatininterception step by step to filter the impurities within the system and finally remove the impurities
 by thenecessary backwash out of the system. Installing a by-pass filter in the circulating water system can
prevent the terminal pipe of device from sludge blocking and remove the impurities in the system with
chemical dosing.
By-pass filtration is used to reduce the turbidity of the water circulation system, exactly, to reduce slime
and
prevent its deposition in the heat exchanger, so that the effect of agent will be better.
 Municipal Water Filtration Multi-Media Filters Water Treatment

Generally speaking, if your filter is a quartz sand filter, it usually has two main functions:
1. To reduce suspended solids (turbidity). Otherwise, as the system is running, suspended solids increases
, which will exacerbate the deposition and other problems.
2. Degreasing. Especially the oily turbid circulation, such as steel rolling and continuous casting, has high
oil content and is easy for breeding microorganism and blocking the nozzles.





Parameters
Pressure rating: 0.25Mpa~2.5Mpa
Single filter flow :2-50 m3/hour
Working temperature range: 0 ~ 65 °C
Effluent turbidity:less-than 3
Inlet and outlet Connection: flange
Backwash water: for total filtered water 1 to 3%
Control mode: pressure control; PLC timing control
Sewage way: automatic
Rated operation voltage: can be customized

Model

  Flow Rate
    (m3/H)

Inlet and outlet
(mm)

Filter area
(m2)

Diameter
(mm)

Height
(mm)

YLD-SF-800

15-25

50

0.5

800

960

YLD-SF-1000

23-39

50

0.79

1000

1200

YLD-SF-1200

33-55

80

1.13

1200

1400

YLD-SF-1400

45-75

100

1.54

1400

1600

YLD-SF-1600

60-100

100

2.01

1600

1800

YLD-SF-1800

75-125

150

2.54

1800

1950

YLD-SF-2000

95-155

150

3.14

2000

2150

YLD-SF-2200

115-190

150

3.80

2200

2250

YLD-SF-2400

130-210

150

4.52

2400

2300

YLD-SF-2600

145-225

150

5.3

2600

2400

YLD-SF-2800

155-240

200

6.15

2800

2500

YLD-SF-3000

170-255

200

7.00

3000

2600

 Municipal Water Filtration Multi-Media Filters Water Treatment


Application:
Water treating, Raw water treating , Recycle water , Chilling water treat, Soft water treat
Agricultural irrigation ,such as Farms Water , Golf Water Filtration , Orchards and Groves Water Filtration , Vineyard Water Filtration  etc .
Papermaking factory
Steel and  lron plant
Petroleum Chemistry
