YT vacuum drum filter

PRIMARY PARAMETERS

Brand name

JieRui

Application

Syrup, starch, glucose

Process input material

Process output material

Place of origin

China

Equipment material

SS & CS

Power (kW)

Depends

Weight (kg)

Depends

Outer dimension (mm)

Depends

Warranty

One year

Delivery

30 days

Main spare parts

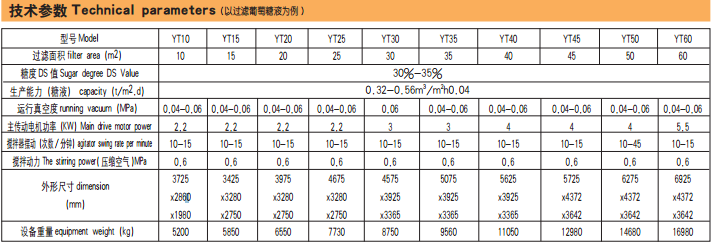

MODEL SPECIFICATIONS

Model	YT10	YT15	YT20	YT25	YT30	YT35	YT40	YT45	YT50	YT60
Filter area(m2)	10	15	20	25	30	35	40	45	50	60
Sugar degree(%)	30-35	30-35	30-35	30-35	30-35	30-35	30-35	30-35	30-35	30-35
Capacity(t/m2, d)	0.32-0.56	0.32-0.56	0.32-0.56	0.32-0.56	0.32-0.56	0.32-0.56	0.32-0.56	0.32-0.56	0.32-0.56	0.32-0.56
Running vacuum(Mpa)	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06	0.06	0.06	0.04-0.06	0.04-0.06	0.04-0.06	0.04-0.06
Main drive motor power(kw)	2.2	2.2	2.2	3	3	3	4	4	4	5.5
Agitator swing rate per minute(rpm)	10-15	10-15	10-15	10-15	10-15	10-15	10-15	10-15	10-15	10-15
The stirring power(Mpa)	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6
Dimension(mm)	372528601980	342532802750	397532802750	467532802750	457539253365	507539253365	562539253365	572543723642	627543723642	692543723642
Weight(kg)	5200	5850	6550	7730	8750	9560	11050	12980	14680	16980

DETAIL DESCRIPTION

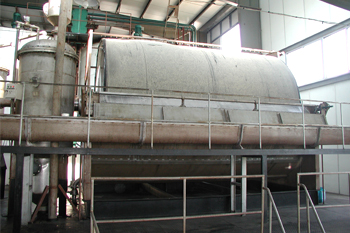

YT vacuum drum filter

Features

YT precoat filter is super separator of solid and liquid on the basis of common drum filter and add precoating technology. Diversity design concept and super manufacturing process make it use widely in medicine, food and sugar industries. This product is mainly suitable for production only for the filtrate without residue. Custom service according to different requirement. Use precoating technology, filtrate clarified degree is high, less solid content, high recovery rate advanced and reasonable structure, beautiful appearance Automatic scraper continuous discharge, high filtration efficiency Serial type system, easy to install and use Drum surface can have spray, materials more cleaner

Working principle

The working principle of YT precoat filter is same as that of vacuum drum filter. Main difference is that the YT precoat filter use filter aid (such as diatomite, perlite, etc.) as precoating before filtering. When filtering, under the effect of vacuum suction, aid in filter chest form coating on surface of drum with required thickness. Inject pulp needed filtration and then under the vacuum sution the filtrate go through precoating and filter cloth, through the pipettes, liquid collecting pipe, automatic discharge from filtrate tank (or vapor liquid separator), and the solid particles blocked precoating intercept and scraped with diatomite coat by automatic feeding mechanical scraper.
