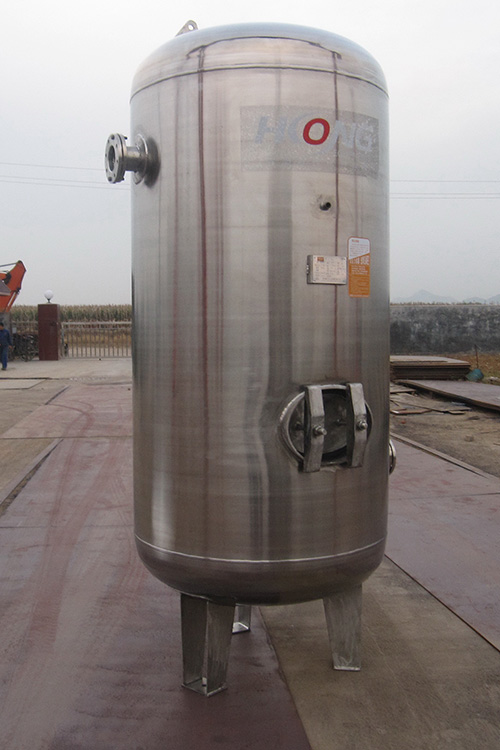

Stainless steel pressure vessel 01

PRIMARY PARAMETERS

Brand name

Haikong

Application

Storage

Process input material

Process output material

Place of origin

China

Equipment material

Power (kW)

Weight (kg)

Depends

Outer dimension (mm)

Depends

Warranty

One year

Delivery

15 days

Main spare parts

Model	01
-	-

Stainless steel pressure vessel 01

Stainless steel general tank parameters
num	volume (M3)/Working pressure (Mpa)	Design temperature	Container total height	bore	Air inlet size	The port size	support	Drain valve
℃	H1(mm)	Φ1（mm）	Φ2（mm）	Φ3（mm）
1	0.3/0.8	150	1730	500	DN50	DN50	Φ350	Φ20	R3/4
2	0.3/1.0	1730	DN50	Φ350	R3/4
3	0.3/1.3	1730	DN50	Φ350	R3/4
4	0.35/0.8	150	1990	500	DN50	DN50	Φ350	Φ20	R3/4
5	0.35/1.0	1990	DN50	Φ350	R3/4
6	0.35/1.3	1990	DN50	Φ350	R3/4
7	0.5/0.8	150	2080	600	DN65	DN65	Φ420	Φ20	R3/4
8	0.5/1.0	2080	DN65	Φ420	R3/4
9	0.5/1.3	2080	DN65	Φ420	R3/4
10	0.6/0.8	150	1910	700	DN65	DN65	Φ500	Φ20	R3/4
11	0.6/1.0	1910	DN65	Φ500	R3/4
12	0.6/1.3	1910	DN65	Φ500	R3/4
13	1.0/0.8	150	2285	800	DN65	DN80	Φ560	Φ24	R3/4
14	1.0/1.0	2285	DN65	Φ560	R3/4
15	1.0/1.3	2285	DN65	Φ560	R3/4
16	1.5/0.8	150	2280	1000	DN80	DN80	Φ700	Φ24	R3/4
17	1.5/1.0	2280	DN80	Φ700	R3/4
18	1.5/1.3	2280	DN80	Φ700	R3/4
19	2.0/0.8	150	2765	1000	DN80	DN80	Φ700	Φ24	R3/4
20	2.0/1.0	2765	DN80	Φ700	R3/4
21	2.0/1.3	2765	DN80	Φ700	R3/4
22	2.5/0.8	150	3510	1000	DN80	DN80	Φ700	Φ24	R3/4
23	2.5/1.0	3510	DN80	Φ700	R3/4
24	2.5/1.3	3510	DN80	Φ700	R3/4
25	3.0/0.8	150	3000	1200	DN100	DN100	Φ840	Φ24	R3/4
26	3.0/1.0	3000	DN100	Φ840	R3/4
27	3.0/1.3	3000	DN100	Φ840	R3/4
28	4.0/0.8	150	4000	1200	DN100	DN100	Φ840	Φ24	R3/4
29	4.0/1.0	4000	DN100	Φ840	R3/4
30	4.0/1.3	4000	DN100	Φ840	R3/4
31	5.0/0.8	150	3405	1500	DN125	DN125	Φ1100	Φ30	R3/4
32	5.0/1.0	3405	DN125	Φ1100	R3/4
33	5.0/1.3	3405	DN125	Φ1100	R3/4
34	6.0/0.8	150	3970	1500	DN125	DN125	Φ1100	Φ30	R3/4
35	6.0/1.0	3970	DN125	Φ1100	R3/4
36	6.0/1.3	3970	DN125	Φ1100	R3/4
37	8.0/0.8	150	4650	1600	DN125	DN125	Φ1200	Φ30	R3/4
38	8.0/1.0	4650	DN125	Φ1200	R3/4
39	10/0.8	150	4565	1800	DN150	DN150	Φ1350	Φ30	R3/4
40	10/1.0	4565	DN150	Φ1350	R3/4
