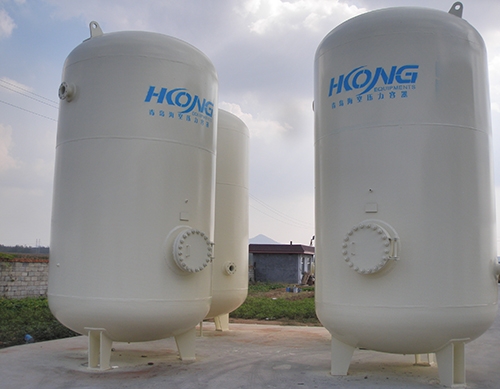

Fixed pressure vessel 03

PRIMARY PARAMETERS

Brand name

Haikong

Application

Storage

Process input material

Process output material

Place of origin

China

Equipment material

Carbon steel

Power (kW)

Weight (kg)

Depends

Outer dimension (mm)

Depends

Warranty

One year

Delivery

15 days

Main spare parts

MODEL SPECIFICATIONS

Model	03
-	-

DETAIL DESCRIPTION

Fixed pressure vessel 03

General tank
num	standard Volume/working pressure	Design temperature	Container total height	bore	Air inlet size	The port size	support	Drain valve
℃	H1(mm)	Φ1	Φ2	Φ3
1	0.35/1.3	150	1760	550	DN50	DN50	Φ370	Φ20	R3/4
2	0.6/1.3	150	1910	700	DN65	DN65	Φ500	Φ20	R3/4
3	0.6/1.6	1910	DN65	Φ500	R3/4
4	0.6/3.0	1910	DN65	Φ500	R3/4
5	1.0/1.3	150	2285	800	DN65	DN65	Φ560	Φ24	R3/4
6	1.0/1.6	2285		DN65	Φ560	R3/4
7	1.0/3.0	2285		DN65	Φ560	R3/4
8	1.5/0.8	150	2210	1000	DN80	DN80	Φ700	Φ24	R3/4
9	1.5/1.0	2210	DN80	Φ700	R3/4
10	1.5/1.3	2210	DN80	Φ700	R3/4
11	2.0/0.8	150	2705	1000	DN80	DN80	Φ700	Φ24	R3/4
12	2.0/1.0	2705	DN80	Φ700	R3/4
13	2.0/1.3	2705	DN80	Φ700	R3/4
14	2.5/0.8	150	3510	1000	DN80	DN80	Φ700	Φ24	R3/4
15	2.5/1.0	3510	DN80	Φ700	R3/4
16	2.5/1.3	3510	DN80	Φ700	R3/4
17	3.0/0.8	150	2700	1300	DN100	DN100	Φ950	Φ24	R3/4
18	3.0/1.0	2700	DN100	Φ950	R3/4
19	3.0/1.3	2700	DN100	Φ950	R3/4
20	4.0/0.8	150	3070	1400	DN100	DN100	Φ1050	Φ24	R3/4
21	4.0/1.0	3070	DN100	Φ1050	R3/4
22	4.0/1.3	3070	DN100	Φ1050	R3/4
23	5.0/0.8	150	3090	1600	DN125	DN125	Φ1200	Φ30	R3/4
24	5.0/1.0	3770	1400	DN125	Φ1050	Φ24	R3/4
25	6.0/0.8	150	3580	1600	DN125	DN125	Φ1200	Φ30	R3/4
26	6.0/1.0	4450	1400	DN125	Φ1050	Φ24	R3/4
27	8.0/0.8	150	4650	1600	DN125	DN125	Φ1200	Φ30	R3/4
28	8.0/1.0	4650	DN125	Φ1200	R3/4
29	10/0.8	150	4565	1800	DN150	DN150	Φ1350	Φ30	R3/4
30	10/1.0	4565	DN150	Φ1350	R3/4
31	12/0.8	150	5335	1800	DN150	DN150	Φ1350	Φ30	R3/4
32	12/1.0	5335	DN150	Φ1350	R3/4
33	15/0.8	150	5400	2000	DN150	DN150	Φ1500	Φ30	R3/4
34	15/1.0	5400	DN150	Φ1500	R3/4
35	20/0.8	150	5970	2200	DN200	DN200	Φ1650	Φ30	R1
36	20/1.0	5975	DN200	Φ1650	R1
37	25/0.8	150	6350	2400	DN200	DN200	Φ1800	Φ36	R1
38	25/1.0	6350	DN200	Φ1800	R1
39	30/0.8	150	6950	2500	DN200	DN200	Φ1900	Φ36	R1
40	30/1.0	6950	DN200	Φ1900	R1
41	40/0.8	150	6560	3000	DN200	DN200	Φ2250	Φ36	R1
42	40/1.0	6560	DN200	Φ2250	R1
