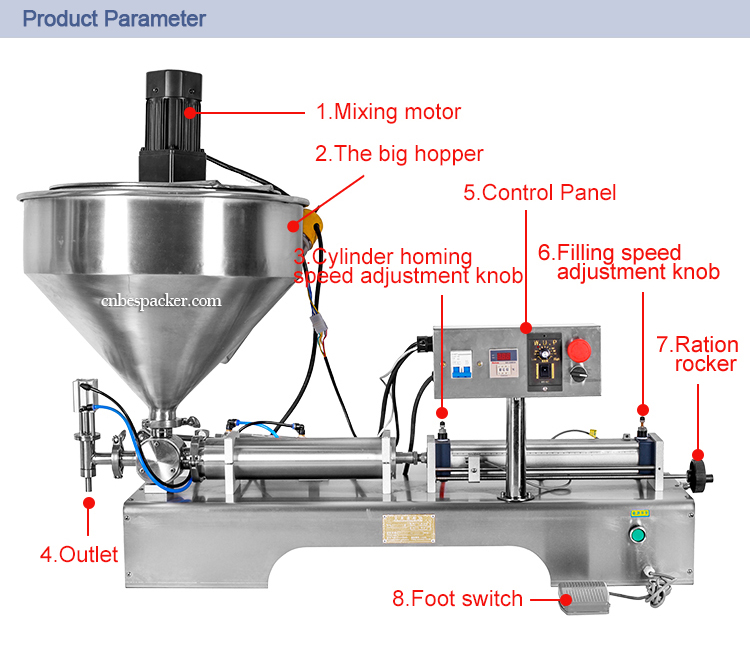

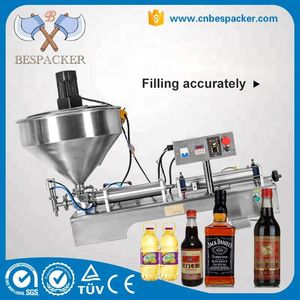

G2WTD mix and heat pneumatic stainless steel semi-auto small bottle filling machine
Description of parameters of filling machine:
Model | Voltage | Filling volume | Filling speed | Filling accuracy | Dimension | Weight |
G1WGD-heater and mixer | 5-30ml | 1-30bottles/min | ≤±1% | 90*30*35cm 54*54*47cm | 20kg 10kg | |
10-100ml | 97*39*37cm 54*54*47cm | 25kg 10kg | ||||
50-500ml | 97*39*37cm 54*54*47cm | 30kg 10kg | ||||
100-1000ml | 115*40*38cm 54*54*47cm | 32kg 10kg | ||||
200-2500ml | 125*40*38cm 54*54*47cm | 38kg 10kg | ||||
500-5000ml | 127*39*43cm 54*54*47cm | 41kg 10kg |

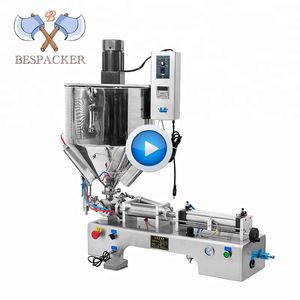

Hopper mixing & Hopper Heating function optional
G1WGD-mixer--------Stirring and heating liquid and paste filling machine for cream shampoo,cosmetic,toothpaste.
1, Brief introduction:
1.1) Paste filling machine is the automatic filling system using compressed air as power, which is composed of precision pneumatic components. The paste filling machine has the features of simple structure, reliable and convenient adjustment.
1.2) This paste filling machine also adapts to all kinds of paste, viscous paste filling. This paste filling machine can work in the inflammable and explosive environment. It is the ideal filling equipment of pharmaceutical, chemical, food, cosmetics and other industries.
2, Technical features of paste filling machine:
2.1) This paste filling machine is semi-automatic piston paste filling machine;
2.2) This machine has reasonable structure, compact shape, convenient operation. The pneumatic parts adopts Germany FESTO and Taiwan AIRTAC starting component.

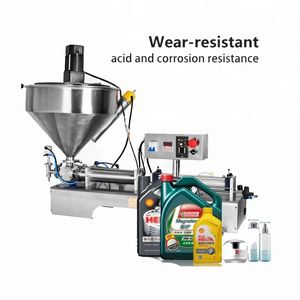

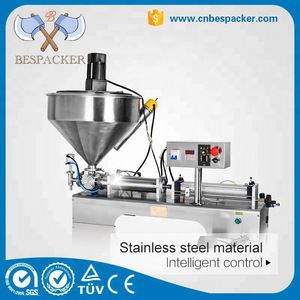

2.3) The fact that the part in contact with the material is made of 316# stainless steel, which brings qualified anti-corrosion performance, meeting with the GMP standard.
2.4) Filling volume and filling speed can be adjusted, and the precision is high.
2.5) Filling head adopts anti-leakage and lifting device.
