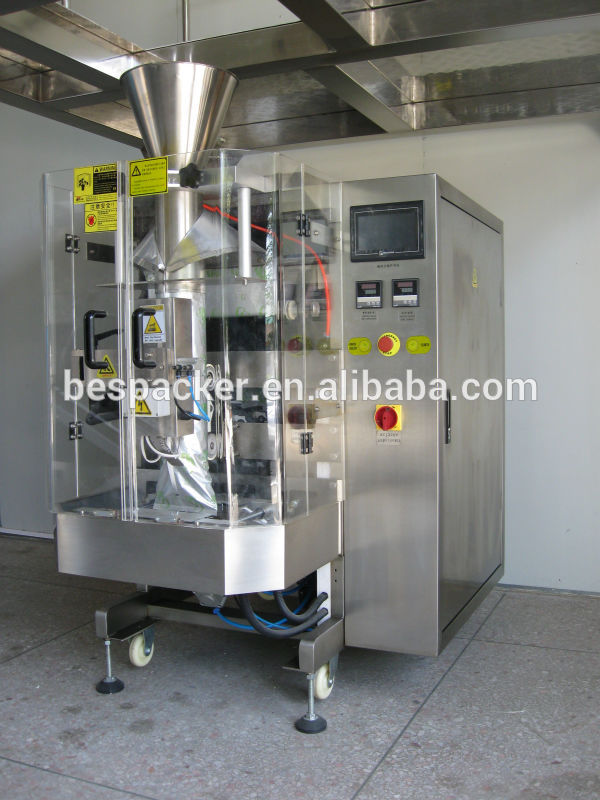

XK-8420B Automatic plastic pouch liquid packing machine
Specification
XK-8420B is used for automatic packing powder materials such as flour, fine sugar, milk powder, coffee, gourmet, pesticide and so on.
Description

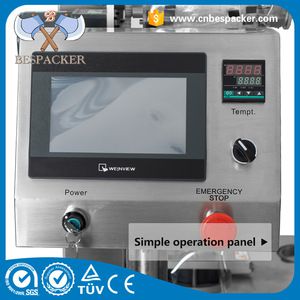

1. Imported PLC control system, simple-operating, visual touch screen.

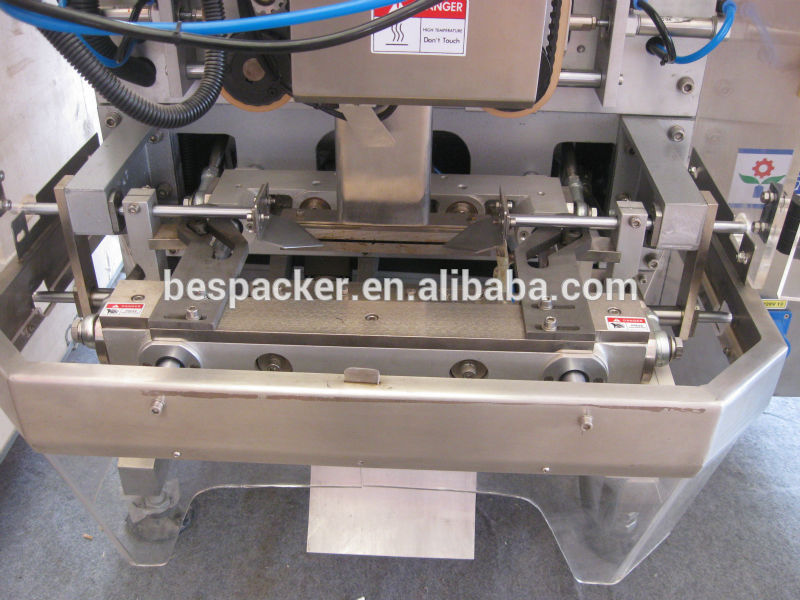

2. Servo film feeding system, correct register, sealing and cutting positions adopt automatic correction device, high automation
3. Intelligent temperature controller in used, correct temperature control, ensure nice, smooth seal.
4. Perfect automatic alarming protective function, reduce the consumption up to the lowest.
5. When the machine is combined with metering equipments, full packaging process including automatic feeding, metering, bag filling, date printing and automatic counting is completed.
6. Type of bag making: according to customer's demand, the machine can produce pillow bags, punched hanging bags.
Production parameter
Model | XK-8420B |
Bag size | L:80-300mm W:80-200mm |
Capacity | 15-70 bags/min |
Filling range | 150-2000(ml) |
Bag Material | OPP/CPP PET/PE ect |
Film width | 180-420mm |
Film Thickness | 0.04-0.08mm |
Air consumption | 0.6MPA |
Power | 3.5KW |
Weight | 500(kg) |
Dimension (L*W*H) | 1750X 1050X1500(mm) |

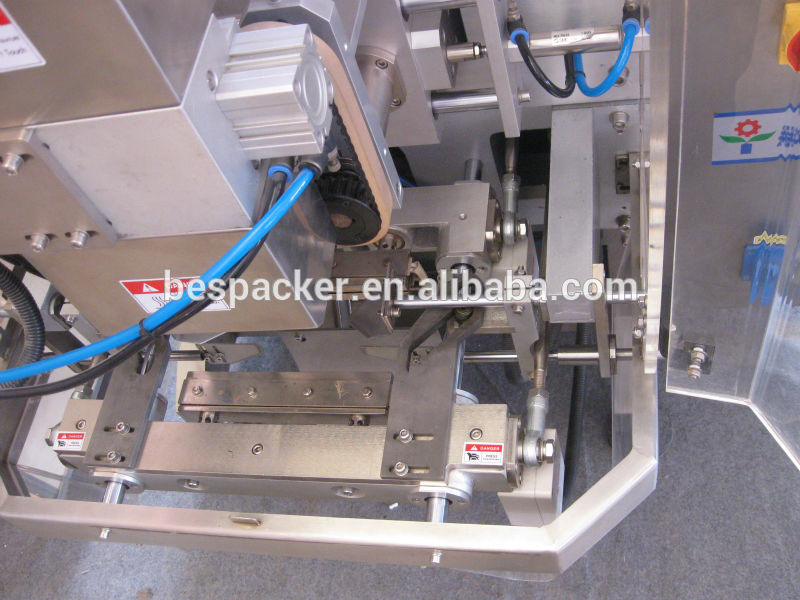

More detail
Why choose us?
1.We are the one-top shopping for most of the packing machines.
2.Best quality with our best service to provide the best solution.
3.Trade Assurance amount more than $100,000, the best guarantee for the your order.
4.Alibaba Assessed Gold Supplier.
5.Special customized, the advanced private order for your products.
6.Life time technical support, the bodyguard for machine.
