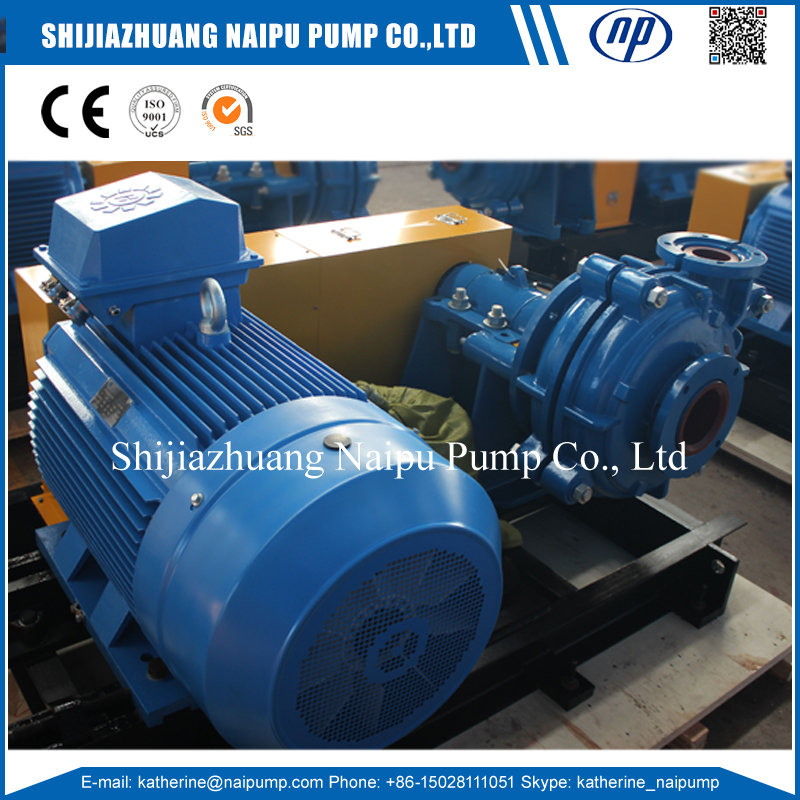

6X4 EE - AHE Complex Metal Impeller Starch Slurry Pump with Rubber Liner
Horizontal Cantilevered Slurry Pump, Metal Slurry Pump Rubber Liner, A05 Slurry Pump, Metal and Rubber Liner Compatible Pump, Spare Parts with EP, OEM Slurry Pump, OEM Spare Parts.
Slurry Pump Duty Condition
Cement Factory, The Pumps are Suitable for a cement factory application to pump slurry-clay & limestone,
Gravity :1.75
Viscosity 1.5 cp
Solid content: 65%
water content 35%
Flow rate 200m3/hr
Head 50 m.
Metal Slurry Pump Selection:
Pump Model : 6X4 EE -AHE
Material : Throut bush / Impeller : High chrome Alloy Cr 30% A61
Back liner / Volute : High Chrome Alloy Cr26 A05
Shaft Sleeve : D075 J04 (Ceramica Cated Shaft Sleeve)
Expeller Ring/ Expeller: High Chrome Alloy A05
Seal Type : High Seal
Motor : 4- 160kw
Drive type : DCz Drive
Supply Range : Pump, Motor, Base plate, Coupling, Guard
6X4EE-AHE Slurry Pump Construction
Slurry Pump Main part number at the drawing
| No. | |||
| 1 | Impeller | E4147EP | Hi Chrome A05, A61 |
| 2 | Volute Liner | E4110EP | Hi Chrome A05, A61 |
| 3 | Thoat Bush | E4083EP | Hi Chrome A05, A61 |
| 4 | Frame Plate Liner Lnsert | E4041EP | Hi Chrome A05, A61 |
| 5 | Frame Plate Liner Insert Gasket | E122 | Rubber |
| 6 | Intake Joint | E4060 | Rubber |
| 7 | Discharge Joint Ring | E4132XLP | Rubber |
| 8 | Volute Liner Seal | E4124 | Rubber |
| 9 | O Ring | E109 | NBR Rubber |
| 10 | Impeller - O Ring | F064 | NBR Rubber |
| 11 | Shaft Sleeve | E075 | 3Cr13 |
| 12 | Bearing assembly | EE005M | |
| 13 | Frame Plate | E4032 | QT500 |
| 14 | Cover Plate | E4013 | QT500 |
| 15 | Bearing Housing | E004M | G01/HT200 |
| 16 | Base | E003M | G01/HT200 |
| 17 | Shaft | E073M | 45# |
NP-AH series slurry pump
Type | Max. Power Kw | Flow m³/hr | Head/m | Speed/rpm | Efficiency % | NPSH m | Nos of Vane | Diameter mm |
1.5X1B-NP-AH | 15 | 12.6-28.8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 |
2X1.5B-NP-AH | 15 | 32.4-72 | 6-58 | 1200-3200 | 45 | 3.5-8 | 5 | 184 |
3X2C-NP-AH | 30 | 39.6-86.4 | 12-64 | 1300-2700 | 55 | 4-6 | 5 | 214 |
4X3C-NP-AH | 30 | 86.4-198 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 |
6X4D-NP-AH | 60 | 162-360 | 12-56 | 800-1550 | 65 | 5-8 | 5 | 365 |
8X6E-NP-AH | 300 | 360-828 | 10-61 | 500-1140 | 72 | 2-9 | 5 | 510 |
10X8F-NP-AH | 560 | 612-1368 | 11-61 | 400-850 | 71 | 4-10 | 5 | 686 |
12X10ST-NP-AH | 560 | 936-1980 | 7-68 | 300-800 | 82 | 6 | 5 | 762 |
14X12ST-NP-AH | 560 | 1260-2772 | 13-63 | 300-600 | 77 | 3-10 | 5 | 965 |
16X14TU-NP-AH | 1200 | 1368-3060 | 11-63 | 250-550 | 79 | 4-10 | 5 | 1067 |
20X18TU-NPAH | 1200 | 2520-5400 | 13-57 | 200-400 | 85 | 4-10 | 5 | 1370 |
Naipu pump produce many kinds of centrifugal slurry pump. Such as, horizontal slurry pump, vertical slurry pump, sand gravel pump, froth slurry pump etc.
 |  |
| 10x8 AH Slurry Pump | 2x1.5 Small Slurry Pump |
 |  |
| 6x4 A05 Slurry Pump | 14x12 AH Slurry Pump |
