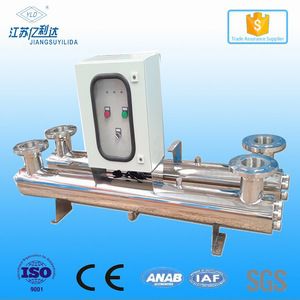

Commercial Circulating Water Disinfection Device 254nm UV-C Water Sterilizer

UV light disinfection is an effective method in destroying micro-organisms in a water stream and an endorsed technology currently being used by a wide range of manufacturers and industries.

Technical Feature

  • Jiangsu, China (Mainland)
  • YLD
  • YLCn-300
  • carbon steel,SS304/SS316
  • stainess steel304/316
  • 12 m3/h
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2~250

PRIMARY PARAMETERS

Place of Origin
Jiangsu, China (Mainland)
Brand Name
YLD
Model Number
YLCn-300
Material for control box
carbon steel,SS304/SS316
Material for UV sterilizer
stainess steel304/316
Water flow
12 m3/h
Max working pressure
0.6Mpa
Working temperature
1-60 u2103
Power supply
220-250V,50/60Hz, 1 or 3 phase(customized)
Connection at water inlet/outlet
thread or flange
Lifaspan of UV lamp
> continuous 9000 hours
UV lamp power
25/40/80/105/120/150/320W
Brand of UV lamp
domestic brands,imported Philips,etc

DETAIL DESCRIPTION



Commercial Circulating Water Disinfection Device 254nm UV-C Water Sterilizer

Product Description



Product Features



Effective: Virtually all microorganisms are susceptible to UV disinfection

Automatic: Continuous or intermittent disinfection without special attention

Fast: Water is ready for consumption as soon as it leaves the cell

Easy: Simple installation and maintenance. Minimum space requirements

Safe: No danger or way of overdosing, no addition of hazardous chemicals

Economical: Hundreds of gallons of water can be purified for a few cents per day

No Chemicals: No chlorine taste or corrosion problems

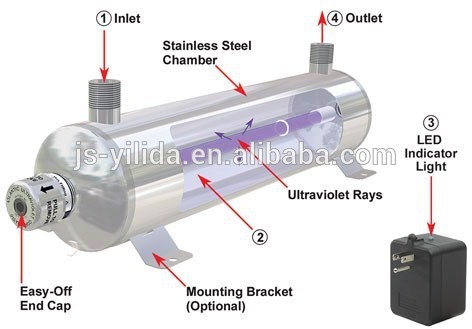

Working principle



UV light disinfection is an effective method in destroying micro-organisms in a water stream and an endorsed technology currently being used by a wide range of manufacturers and industries. UV radiation has three wavelength zones: UV-A,UV-B, and UV-C, and it is this last region, the short wave UV-C, that has germicidal properties for disinfection. Ultraviolet systems use low-pressure mercury lamps that emit UV light in the range of 254nm that attacks the microorganism and stops the microorganism's ability to function and reproduce.

However, the organisms must be free-floating and travel through the UV sterilizer unit for the sterilizer to work. It has no effect on organisms attached to fish or rocks because they do not flow through the unit and cannot be exposed to the UV light, pretreatment may need be added to the water system. Prefiltration is required to remove color, turbidity, and particles that shield microorganisms from the UV source.









Water Quality (Feed in)



Water quality plays a major role in the transmission of germicidal UV rays. It is recommended that the water does not exceed following maximum concentration levels



 Maximum Concentration Levels (Very Important)



Iron

≤0.3ppm(0.3mg/L)

Hardness

≤7gpg(120mg/L)

Turbidity

≤1NTU

Manganese

≤0.05ppm(0.05mg/L)

Tannins

≤0.1ppm(0.3mg/L)

UV Transmittance

≥750‰



 Effectively treating water with higher concentration levels than listed above can be accomplished, but may require added measures to improve water quality to treatable levels. If, for any reason, it is believed the UV transmission is not satisfactory, contact the factory.



UV wavelength (nm)



                 DOSAGE is the product of intensity & time

dosage=intensity*time=micro watt/cm2*time=microwatt-seconds per square centimeter

                              (μW-s/cm2)

               Note:1000μW-s/cm2=1mj/cm2(milli-joule/cm2)



As a general guideline, the following are some typical UV transmission rates (UVT)



City water supplies

850-980‰

De-ionized or Reverse Osmosis water

950-980‰

Surface waters(lakes, rivers, etc)

700-900‰

Ground water(wells)

900-950‰

Other liquids

10-990‰





Technical Parameter





                                                                                                                                                                                        Customization Available





 Application

Ultraviolet water purification systems are used in many applications that includes home/residential(both well water and municipal water supplies), commercial, and industrial. Here is a list of several applications where the power of UV water sterilizers are commonly used to treat and protect the water supply for contaminates such as bacteria and viruses. UV systems applications include private wells, campgrounds, hotels, bottlers, aquaculture, hospitals, food, cottages, restaurants, breweries, water systems, laboratories, marine, pharmaceutical, dairies and many other applications.



Ultraviolet water purification systems are used in many applications that includes home/residential(both well water and municipal water supplies), commercial, and industrial. Here is a list of several applications where the power of UV water sterilizers are commonly used to treat and protect the water supply for contaminates such as bacteria and viruses. UV systems applications include private wells, campgrounds, hotels, bottlers, aquaculture, hospitals, food, cottages, restaurants, breweries, water systems, laboratories, marine, pharmaceutical, dairies and many other applications.



 Commercial Water Treatment Using 254nm UV Light Sterilizer





Commercial Circulating Water Disinfection Device 254nm UV-C Water Sterilizer
