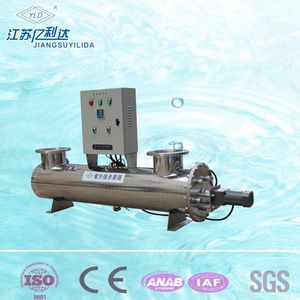

Pond fishing water disinfection system UV-C light water sterilizer with auto-cleaning device

microorganisms in aquarium water when they are exposed to this light.

Technical Feature

  • Jiangsu, China (Mainland)
  • YLD
  • YLC-360
  • stainess steel 304/316L
  • stainless steel,carbon steel
  • > continuous 9000 hours
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~800

PRIMARY PARAMETERS

Place of Origin
Jiangsu, China (Mainland)
Brand Name
YLD
Model Number
YLC-360
Material for UV sterilizer
stainess steel 304/316L
material for control box
stainless steel,carbon steel
lifaspan of UV lamp/bulb
> continuous 9000 hours
interface at water inlet/outletr
thread or flange
brand of UV lamp
domestic brands,imported Philips,etc
power supply
Customized
working pressure
0.6Mpa
working temperature
0-60u2103
power of single UV lamp
25/40/80/105/120/150/320W

DETAIL DESCRIPTION

Pond fishing water disinfection system UV-C light water sterilizer with auto-cleaning device

Working Principle

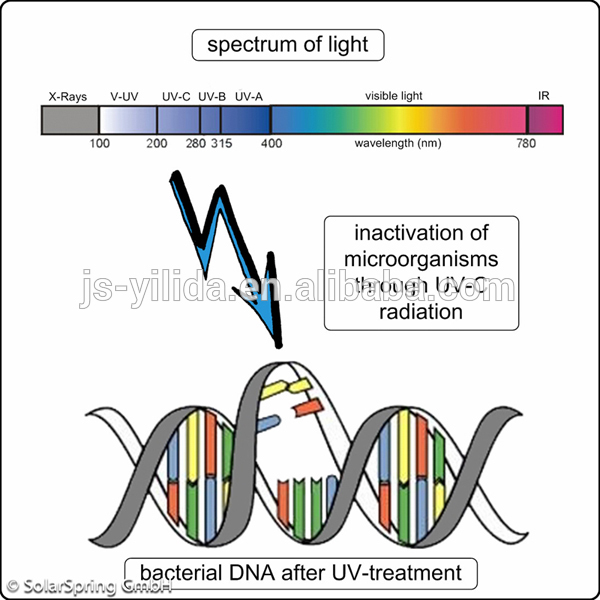

UV sterilizers work on the principle that special fluorescent UV lamps can effectively irradiate (kill) microorganisms in aquarium water when they are exposed to this light. UV light, at a peak wavelength of approximately 254 nanometers, alters the genetic material in the organism's nucleus and shortens its normal life cycle. Theoretically, UV sterilizers can kill viruses, bacteria, algae, and protozoa with no residual effects. However, the organisms must be free-floating and travel through the UV sterilizer unit for the sterilizer to work. It has no effect on organisms attached to fish or rocks because they do not flow through the unit and cannot be exposed to the UV light, pretreatment may need be added to the water system. Prefiltration is required to remove color, turbidity, and particles that shield microorganisms from the UV source. Water that contains high mineral levels can coat the lamp sleeve and reduce the treatment effectiveness. Therefore, pretreatment with a water softener or phosphate injection system may be necessary to prevent build-up of minerals on the lamp.



Limitation of Use

The UV water disinfection system NOT intended for the treatment of water that has an obvious contamination or intentional source, such as raw sewage, nor is the unit intended to convert waste water to microbiologically safe drinking water.





Product Description



Water Quality(in)

Water quality plays a major role in the transmission of germicidal UV rays. It is recommended that the water does not exceed following maximum concentration levels.



Maximum Concentration Levels (Very Important)



Total iron content

Less than 0.3ppm(0.3mg/L)

H2S

Less than 0.05ppm(0.05mg/L)

Total suspended matter

Less than 10 mg/L

Manganese content

Less than 0.05 mg/L

Water hardness

Less than 120 mg/L

Chroma

Less than 15

Water Temp.

5-60Centigrade

PH value

6.5-8

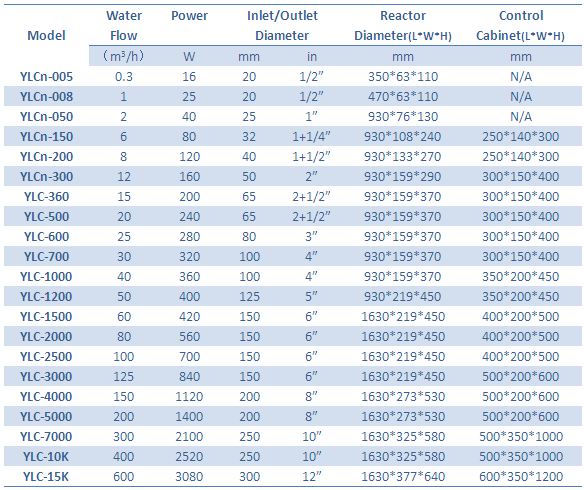

Technical parameter







Advantages

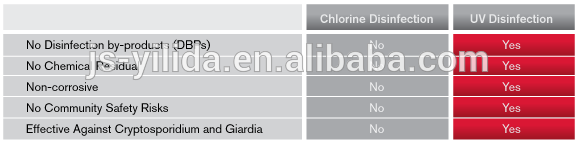

 UV has been found to be an effective disinfectant:simplicity of installation, ease of operation and maintenance, and low cost relative to chemical disinfection make UV a useful technology.







Application



1.Food processing industry, including juices, milk, drinks, beer, practical oil and canned food.

2.Electronic industry.

3.Hospitals, various laboratory and high levels of pathogenic body water disinfection.

4.Households building, residential, office buildings, hotels, restaurants, water factories.

5.Purification and disinfection of shellfish, fish cleaning and disinfection

6.Military camp, field water supply system

7.Urban wastewater disinfection.

8.Swimming pool, other recreational water disinfection

9.Thermal power, nuclear power plant  industrial, central air conditioning system cooling water.

10.Biological, chemical and pharmaceutical, cosmetics for the production of cooling water.

11.Sea water, fresh water breeding, aquaculture water

12.Agricultural water disinfection





To Customers



1.What is the water flow of your water system?

2.What is your raw water to be disinfected?

3.Do you need the accessories like flow switch,UV intensity detector,timer,etc?

4.Do you also require other kinds of filters for prefiltration used in your water system?

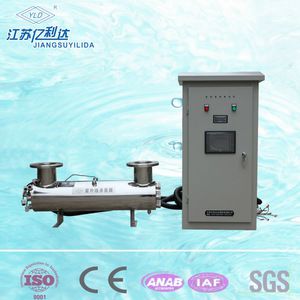

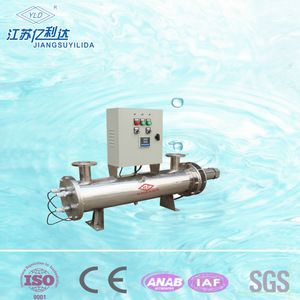

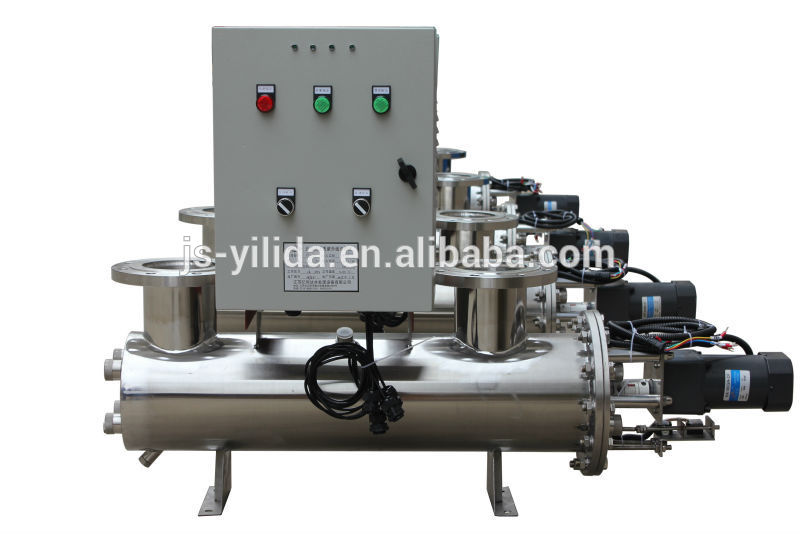

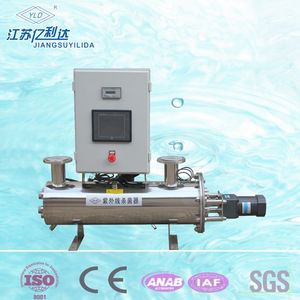

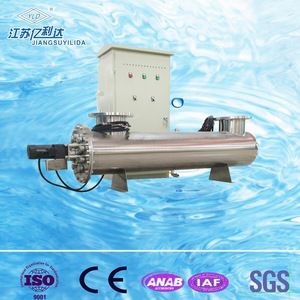

Product Show
