Hot selling Chemical Pharmaceutical continuous vacuum Fluid Bed Granulator(FL Series)

The machine is a process machine widely applied for solid preparation production in the pharmaceutical industry.

Technical Feature

  • Granulator
  • New
  • granule
  • Jiangxi, China (Mainland)
  • Wonsen
  • FL-30
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$18~49

PRIMARY PARAMETERS

Machine Type
Granulator
Condition
New
Product Type
granule
Place of Origin
Jiangxi, China (Mainland)
Brand Name
Wonsen
Model Number
FL-30
Voltage
220V/380V
Power(W)
11kw
Dimension(L*W*H)
3137*806*984
Weight
1000kg
Certification
CE ISO TUV
After-sales Service Provided
Engineers available to service machinery overseas
Keywords
Fluid bed granulator
Vessel volume
100(L)
Production capaciiy
15-30(kg/h)
ectric heating power
30(KW)
Steam pressure
0.4-0.6(MPa)
Steam consumption
116(kg/h)
Compressed air pressure
0.4-0.6(MPa)
Compressed air consumption
0.9(m3/min)
Material
SS304,SS316
Application Scope
Pharmaceutical, Chemical, Food

DETAIL DESCRIPTION

Hot selling Chemical Pharmaceutical continuous vacuum Fluid Bed Granulator





Product Description



Application



 The machine is a process machine widely applied for solid preparation production in the pharmaceutical industry. It has such functions as mixing, drying, granulation fucntions etc. It is also widely used in such industries as medicine, chemical, food, etc


Work principle

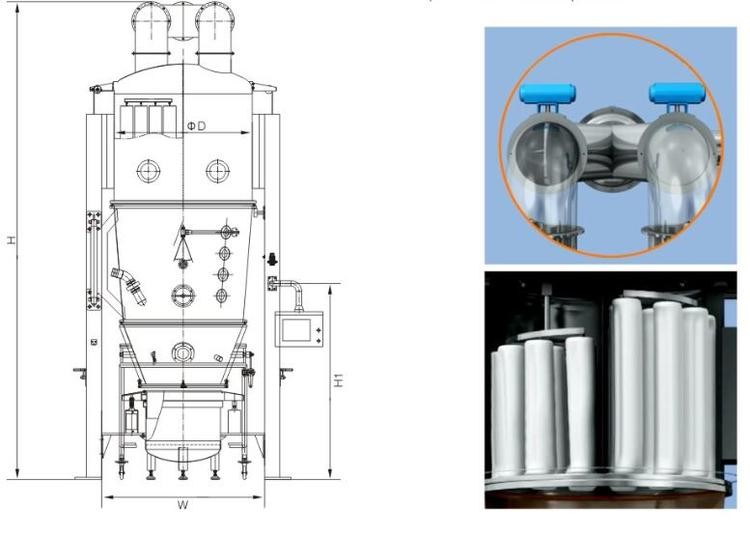

The machine is composed of main machine, air handling system, heating system, exhaust and dust filter system etc. When it works, the materials enter the hopper of the fluid bed dryer. Set the procedures and parameters according to process requirements and the machine will start working. After filtered by the air handling system and heated by the heating system, the air enters the main machine. After the materials are fluidized by hot air, the moisture is evaporated rapidly and the materials are dried instantly. After the operations are completed according to the set procedures and parameters, the material silo is pushed out and assembled onto the JTZ series lifting and turning granule sizing machine for lifting discharging, so as to effectively control dust pollution and cross contamination.



Features



The machine is a new machine researched and developed successfully by our company according to China's actual conditions after absorbing and digesting internationally advanced technology. It has such features as reasonable structure, stable performance, convenient operation, no dead corners, and no exposed bolts. The machine adopts PLC automatic control. All operations are completed automatically according to the process parameters set by users. All process parameters can be printed and the original records are true and reliable. It fully meets GMP requirements for medicine production.







Technical Parameter





Certifications





Products Patent







Part Projects





Raw Materials





Production Flow





Part of Production & Inspection Equipment



Packaging & Shipping





Our Services

1.Your enquiry or questions will reponse once we receive it!
2.Providing technical data,high-definition pictures,flow chart that all you need
3.Supply the validation documents and certificates.
4.OEM/ODM is available.
5.Providing long-term after-sale service,door-to-door service and corporate training


Why choose us



1.Specialized in designing, developing and manufacturing.
2.Above 130 National patents,national and provincial technology innovation awards
3.Provincial Pharma Equipment Engineering Technology Research Center
4.National High-Tech,National Pharma Equipment Industry Association,Provincial new special expertise Enterprises
5.Manufacture the solid preparation production line equipment for above 500 domestic and oversea enterprises
6.Modern production workshop and production line of high-end manufacturing equipment
7.Professional and efficient after-sales service management
8.Competitive price and prompt delivery
9.Meet ISO9001 and CE
10.OEM/ODM available




Our Company View







Company information



Yichun Wanshen Pharmaceutical Machinery Co., Ltd. is a research, development, production and sales of pharmaceutical equipment, Well-known manufacturer that providing domestic and overseas users with first-class equipment that conforms to GMP, CGMP and FDA standards and whole-set solutions. The main products include dispensing, granulating, drying, mixing, transferring (lifting) and coating series. They passed CE, ISO9001:2008 certificate. In addition, we also provide a chain of services including whole-set equipment design, production, installation, commissioning and project management for such industries as health products, food, new energy and chemical industry.



We are located in a national-level economic development zone in Yichun City of Jiangxi Province .With a land area of 40,000m2, a construction area of 38,000m2 and fixed assets of RMB 80 million Yuan.The products have been awarded more than 130 national patents, Such as Utility Patent, Invention Patent, Design Patent certificates etc. And the closed granulating, drying and granule sizing equipment has been awarded Technical Innovation Project of middle and small-sized Enterprises of National Science &Tech, Key Innovation Fund Project in Jiangxi Province and Key New Product in Jiangxi Province.



We offer high quality, the most competitive price and prompt delivery. Our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Eastern Asia, Mid East, Africa, Southeast Asia, Oceania, South America, North America, Europe. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, You are welcome to talk to our customer service center.




Alibaba Assessed Supplier





Exhibitions and Customers



FAQ



1.How long for the delivery?
Within 45 days after receiving the deposit.

2.What's the payment terms?
T/T, L/C,Cash,West union etc.

3.OEM and ODM?
Yes

4.How long is the warranty period?
One year after shipment
