2018 High Quality CE GMP meet Vertical fluid bed dryer/Boiling dryer(FG)

The FG series Boiling Fluid Bed Dryer can be widely used in pharmaceutical,chemical,foodstuff industry etc.

Technical Feature

  • New
  • Fluid Bed Drying Equipment
  • Jiangxi, China (Mainland)
  • Wonsen
  • FG-200
  • 220V/38V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$29~80

PRIMARY PARAMETERS

Condition
New
Type
Fluid Bed Drying Equipment
Place of Origin
Jiangxi, China (Mainland)
Brand Name
Wonsen
Model Number
FG-200
Voltage
220V/38V
Power(W)
30KW
Dimension(L*W*H)
4965*1608*1840
Weight
1900kg
Certification
CE ISO TUV
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product name
fluid bed dryer/ spray dryer
Bowl Volume
670L
Product Capacity
200kg/batch
Steam pressure
0.4-0.6Mpa
Steam consumption
400kg/h
Compressed air pressure
0.4-0.7Mpa
Compressed air consumption
1(M3/min)
Material
SS304,SS316
Application Scope
Pharmaceutical,Chemical,Food

DETAIL DESCRIPTION

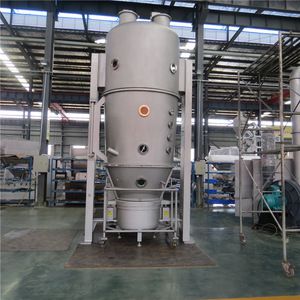

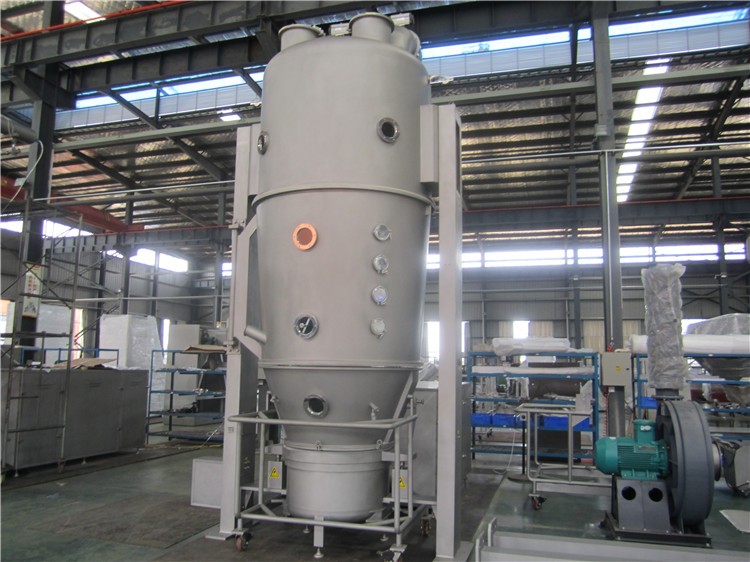

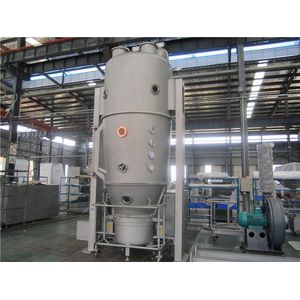

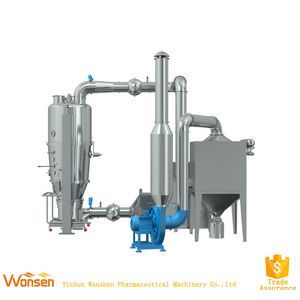

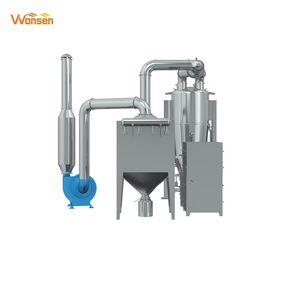

2018 High Quality CE GMP meet Vertical fluid bed dryer/ Boiling dryer





Product Description



Application


1.The FG series Boiling Fluid Bed Dryer can be widely used in pharmaceutical,chemical,foodstuff industry etc.

2.The FG series Boiling Fluid Bed Dryer is one of the standard process equipment in the solid preparation production.for example:the production of tablets,granules and other wet granules.

3.The FG series Boiling Fluid Bed Drye has many fuctions.such as mixing,granulating etc.and used for fast dry & wet mixing, homogenizing,humidifying and granulating of the powder.




Working principle:

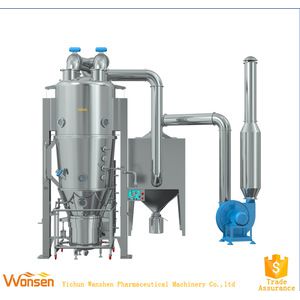

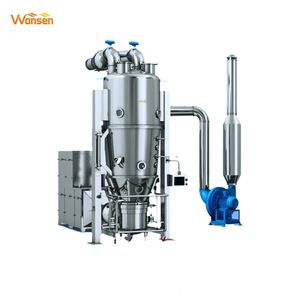

1.The FG series Boiling Fluid Bed Drye is composed of main machine (processor), air handling unit(AHU), heating and control systems. When operating, charge the materials into the Bowl, set the procedure and parameters according to process requirements
2.Start the processor.The inlet air is filtered by the air handling unit(AHU)and heated by the heating system

3.The processed air enters the processor to blow up materials into fluidization condition. Materials are apace dried and moisture rapidly vaporized.

4.When the operation has been finished; Move out the Bowl to lock with pharma Lifter for FBD/FBG Bowl for lifting and discharging the produced granules.

5.During the whole process, powder dust and cross pollution are effectively controlled.




Features:


1.The advanced technology design with high drying efficient.

2.Reasonable structure and stable performance,Closed sampling fnction

3.Easy operation

4.No dead corner or protrudded

5.High quality SUS316,SUS304 stainless steel.

6.PLC designed to ensure a fully automatic control.

7.Process parameters can be printed and original data are reliable.

8.Meets FDA/GMP requirements

9.Passed CE/CQC certificate

10.CIP online cleaning system can be chosen to install


   Technical Parameter



Certifications





Products Patent

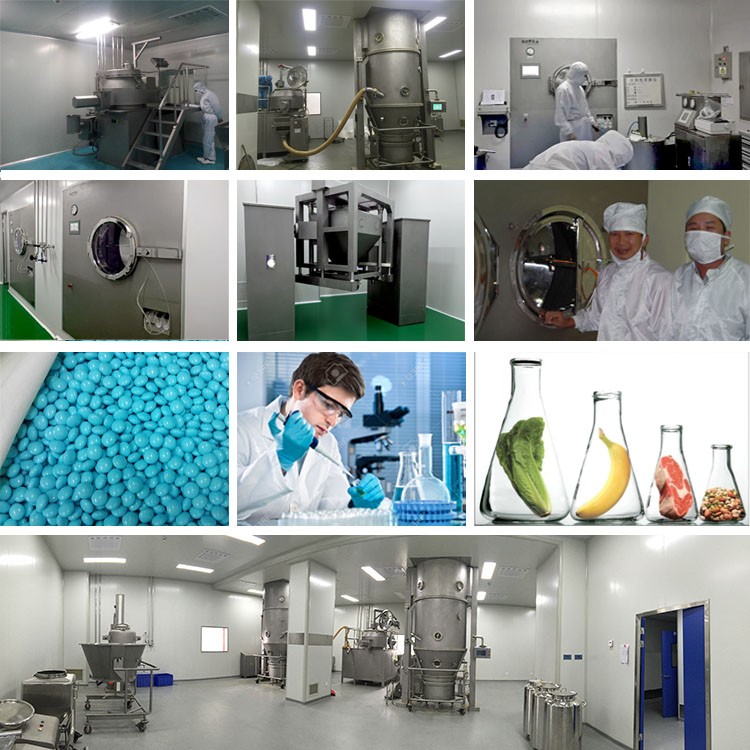

Part Projects

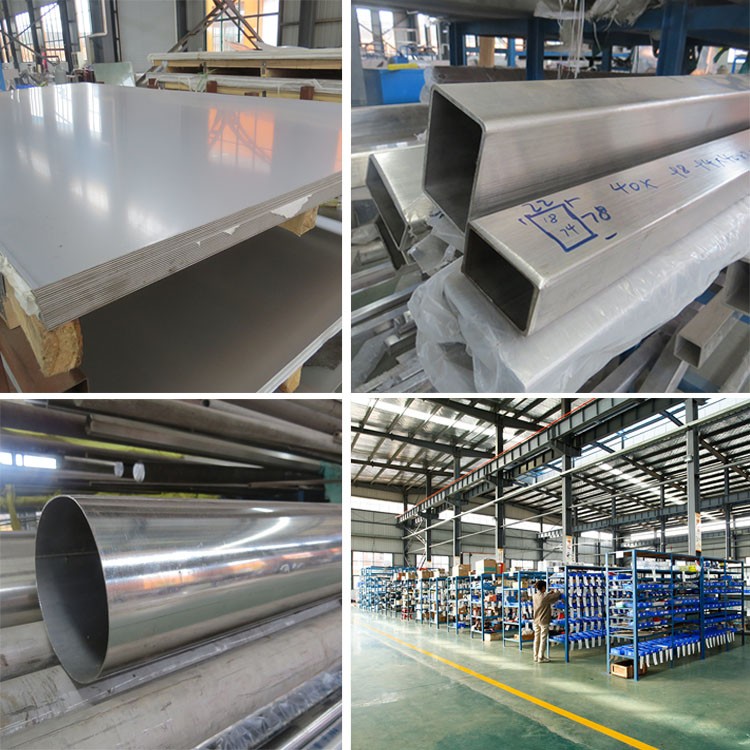

Raw Materials

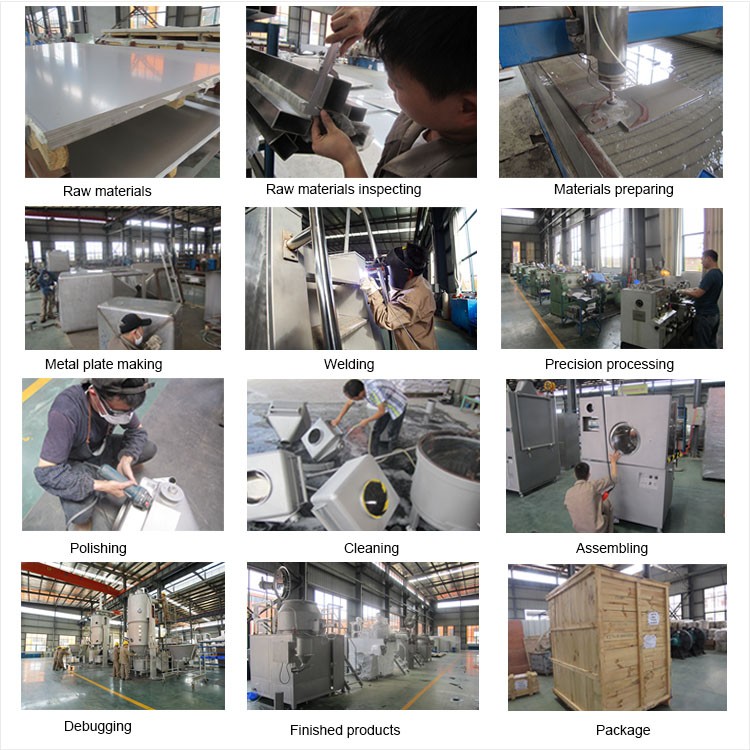

Production Flow





Part of Production & Inspection Equipment



Packaging & Shipping



 2017  High Quality CE GMP meet Vertical fluid bed dryer/ spray dryer

Our service



1.Your enquiry or questions will reponse once we receive it!
2.Providing technical data,high-definition pictures,flow chart that all you need
3.Supply the validation documents and certificates.
4.OEM/ODM is available.
5.Providing long-term after-sale service,door-to-door service and corporate training


Why choose us



1.Specialized in designing, developing and manufacturing.

2.Above 130 National patents,national and provincial technology innovation awards

3.Provincial Pharma Equipment Engineering Technology Research Center

4.National High-Tech,National Pharma Equipment Industry Association,Provincial new special expertise Enterprises

5.Manufacture the solid preparation production line equipment for above 500 domestic and oversea enterprises

6.Modern production workshop and production line of high-end manufacturing equipment

7.Professional and efficient after-sales service management

8.Competitive price and prompt delivery

9.Meet ISO9001 and CE

10.OEM/ODM available

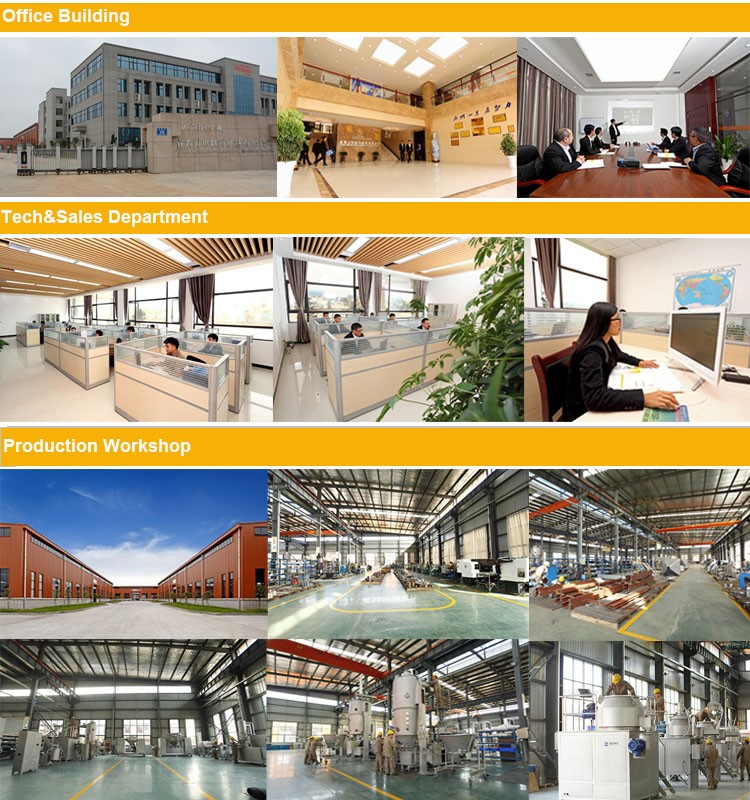

Our Company View





Company information



Yichun Wanshen Pharmaceutical Machinery Co., Ltd. is a research, development, production and sales of pharmaceutical equipment, Well-known manufacturer that providing domestic and overseas users with first-class equipment that conforms to GMP, CGMP and FDA standards and whole-set solutions. The main products include dispensing, granulating, drying, mixing, transferring (lifting) and coating series. They passed CE, ISO9001:2008 certificate. In addition, we also provide a chain of services including whole-set equipment design, production, installation, commissioning and project management for such industries as health products, food, new energy and chemical industry.



We are located in a national-level economic development zone in Yichun City of Jiangxi Province .With a land area of 40,000m2, a construction area of 38,000m2 and fixed assets of RMB 80 million Yuan.The products have been awarded more than 130 national patents, Such as Utility Patent, Invention Patent, Design Patent certificates etc. And the closed granulating, drying and granule sizing equipment has been awarded Technical Innovation Project of middle and small-sized Enterprises of National Science &Tech, Key Innovation Fund Project in Jiangxi Province and Key New Product in Jiangxi Province.



We offer high quality, the most competitive price and prompt delivery. Our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Eastern Asia, Mid East, Africa, Southeast Asia, Oceania, South America, North America, Europe. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, You are welcome to talk to our customer service center.


Alibaba Assessed Supplier





Exhibitions and Customers



FAQ



1.How long for the delivery?
Within 45 days after receiving the deposit.

2.What's the payment terms?
T/T, L/C,Cash,West union etc.

3.OEM and ODM?
Yes

4.How long is the warranty period?
One year after shipment
