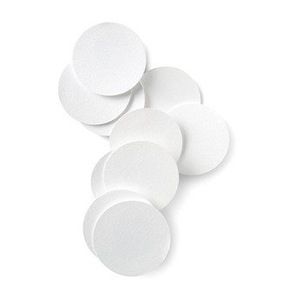

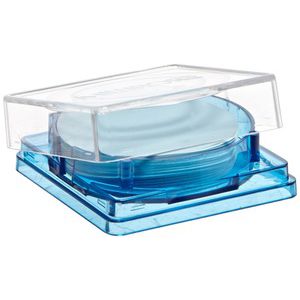

Microporous MEMBRANE FILTER

Products Introduction

In the applications of membrane separation technology , microporous membrane filter is the most widely application and easy to use . High flow rate , high particle entrapment rate , good temperature resistance , resistance to strong acid , strong alkali , organic solvents and antioxidant , ageing resistance and not sticky , incombustible , and non-toxic , good biocompatibility , etc . It’s material divided into two categories : organic and inorganic , as the separation characteristics of microporous membrane filter , it is mainly used for retaining from gas phase and liquid phase particles , bacteria and other pollutants , in order to achieve the purpose of purification , separation and enrichment . For microfiltration membrane intercept features based on the pore size of the membrane , usually in 0.1-1μm , so the microfiltration membrane can seprate the large diameter of the bacteria , suspended solid and so on . It can be used as general material liquid clarification , security filters , air aseptic , widely used in scientific research , medical science , biochemistry , food , energy , microelictronics industry , nano technology , environmental protection and other departments .

Applications

  The product is mainly used in mobile phase of chromatographic analysis and sample filter , to protect the chromatographic column and infusion pump pipe system and the sampling valve is not contaminated . Widely used in gravimetric analysis , trace analysis , colloid separation and sterility test . According to the filter samples to choose the appropriate membrane filter .

Materials :

Nylon , MCE , PES , PP , PTFE , PVDF

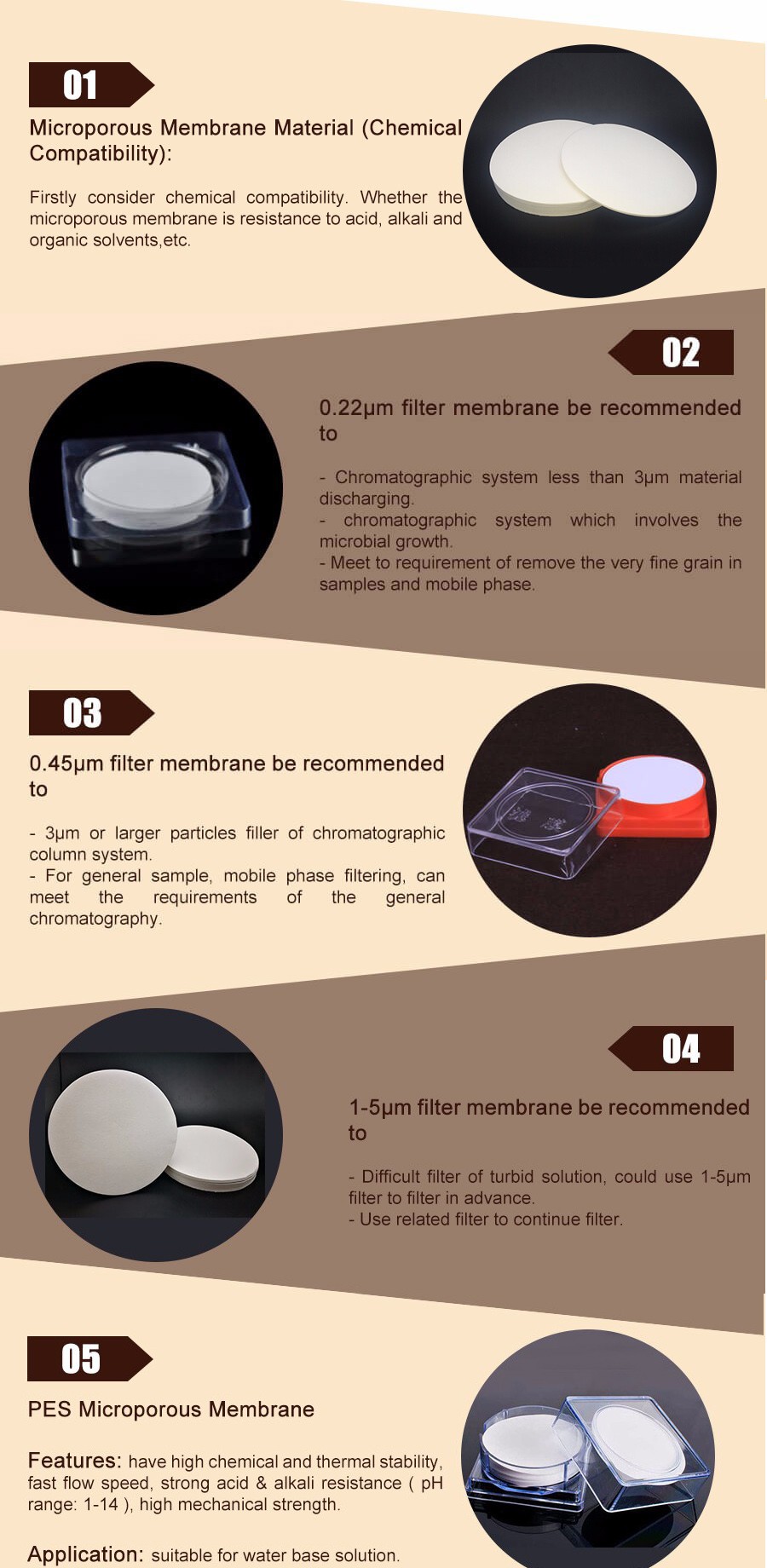

Specification :

Diameter :13mm, 25mm , 47mm , 50mm , 60mm , 150mm, 300mm

Pore size : 0.2μm, 0.45μm, 0.65μm, 0.8μm

Features

Nylon66:
Material From 1948 British company
High flow rate , high void volume Suitable for most of the organic solvent and aqueous solution
Good hydrophilicity, high strength . High temperature resistant, resistant to acid aqueous and organic solvents
Wide usage and high drug compatibility
Low protein binding and lysate rate

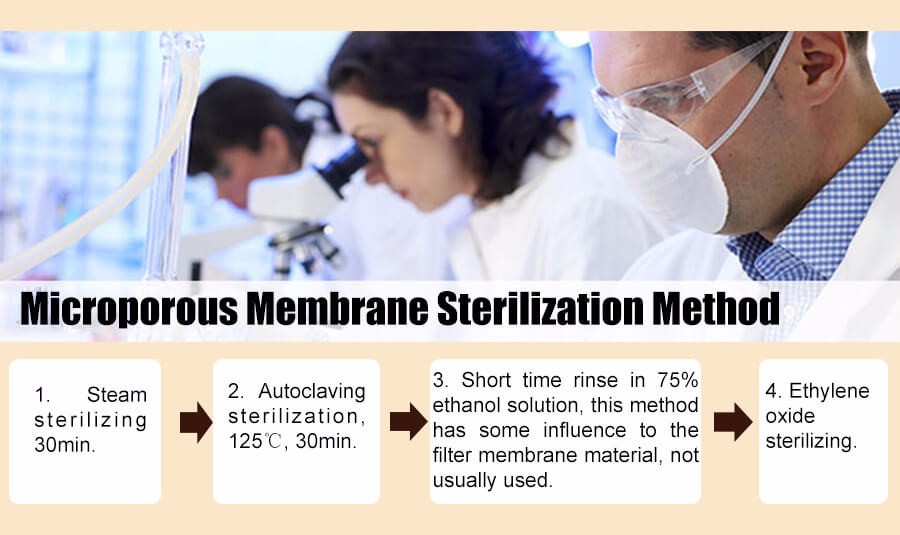

Epoxy ethane sterilization and autoclaving
Application : Liquid clarification, aseptic filtration and particle filter

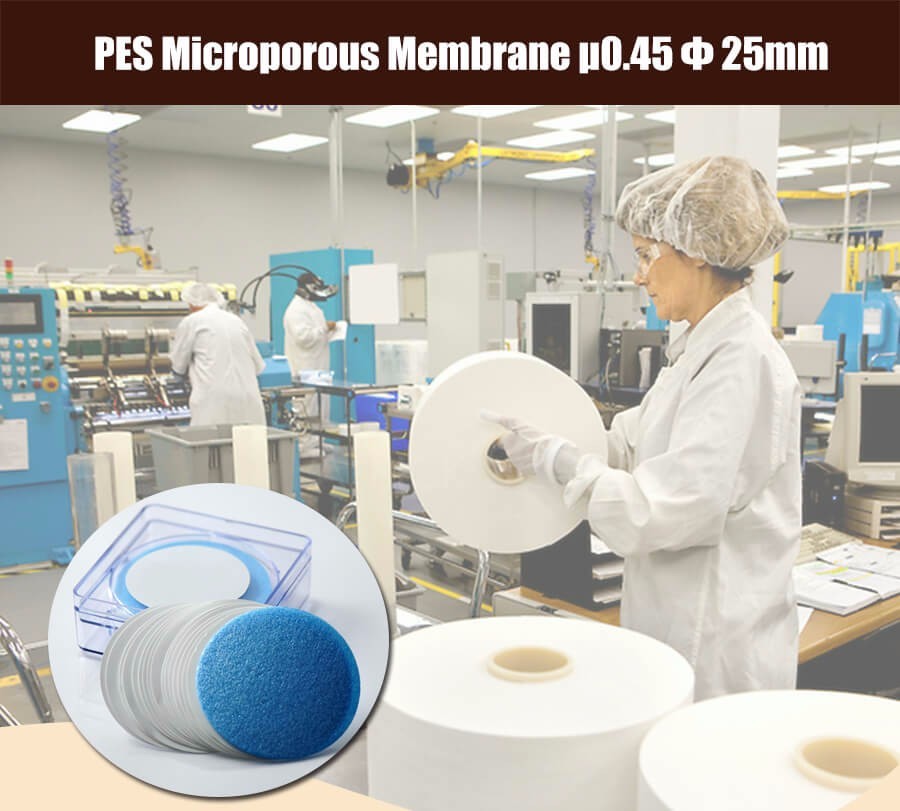

PES :  Material From 1965 German company
Hydrophilic membrane , high chemical and thermal stability
Strong acid and alkali resistance( PH 1~14) , high mechanical strength
High flow rate and high speed, the highest is PES at present .
The lowest protein binding and lysate rate , can improve the recovery rate of protein, the best choice of ion chromatography
With broad medicinal compatibility
The lowest rate of dissolution
Epoxy ethane sterilization and autoclaving (30min/121℃ )

Application :

Biological pharmaceutical industry and serum filtration , antibiotics etc . terminal filter
Food beverage industry , wine , etc . terminal filter , the terminal filtration of ultrapure water

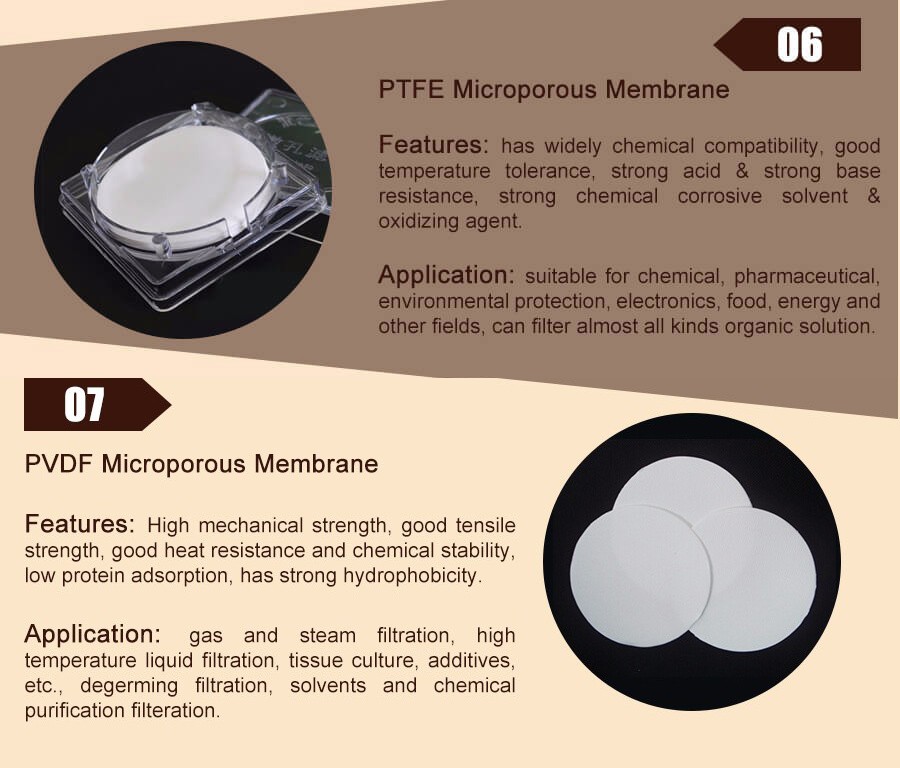

PTFE : Material From 1915 USA
Hydrophobic membrane , after treated by ethanol or isopropyl become into a hydrophilic membrane , hydrophilic membrane can be natural moist , hydrophobic membrane cannot .
High temperature resistant , resistant to strong acid , strong alkali organic solvent and antioxidant
Good chemical compatibility , resistant to most chemical solvents

Application :

Used for water , solvent aseptic filtration
Gas aseptic filtration and vacuum filtering ,
High purity gas filtration of electronics industry ,
Steam filter ,
The food industry of fermentation tank , storage tank , mixing tank sterile exhaust filter

PVDF :
Hydrophobic membrane , moisture absorption , after treated by ethanol or isopropyl become into a hydrophilic membrane
Low protein adsorption
Resistance to chemical corrosion and oxidation resistance

Application :

Western and Southern transfer and protein sequences
Protein solution , tissue culture of antibiotics and other liquid aseptic filtration
Acids , alcohols , alkanes , aromatic hydrocarbons, halogenated hydrocarbon solvent to remove particles
Aerosols in the air purification and air in addition to the bacteria in the fermentation industry
Insolubles in oil purification and the analysis of the weight of the solid particles
 Epoxy ethane sterilization and autoclaving (30min/121℃ )

MCE:
Smooth surface and light texture , high porosity , good intercept effect
Good hydrophilicity , water flux
Uniform micropore structure , low adsorption rate

Not resistant to organic solution or acid alkali solution , filtration resistance pH 2-9 , just services Agent medicine or other water solvent .

Application :

Laboratory , Small production process sterilization , removing particles
Sterilization and filtration of media and nutrient Fluid
The determination of bacteria in water
PP : Deep filter
Stable physical and chemical performance , good compatibilities
High porosity , the ability of recoil and high temperature disinfection
Good pressure resistance

Application :

Biological macromolecular sediment filter
Prefiltering

New product ---PM2.5 Special Membrane Filter

PM2.5 special membrane filters are produced in 100,000 purification workshop , high toughness , high sensitivity , interference-free , low impurity , etc ., it’s the best choice for airborne particulate sampling and analysis . In addition , PM2.5 special membrane selection of PTFE material , is one of the most inert material , with a wide range of chemical compatibility , can tolerate a wide range of acids , bases and polar solvents , can filter the corrosive chemicals subject . And has a very low of non-specific adsorption properties and almost zero extract .

Application:

1.PM10,PM2.5 Lane sampling and other techniques for air sampling and testing
2.Low ash for high –precision gravimetric determination

3.Resistance to chemical corrosion , for corrosive environmental sampling , and the corrosive chemicals that normal membrane filter can’t do
