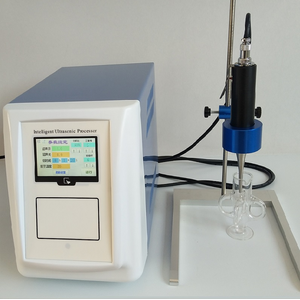

Ultrasonic Homogenizer Sonicator Cell Disruptor Mixer
Ultrasonic cell disruption system ( crusher ) is a multi-function & multi-purpose instrument, which use high strength ultrasonic to cause cavitation effect in liquid, for material ultrasonic processing. It could be used to crush a variety of animal & plant cells, viruses cells, also suitable for emulsification, separate, homogenization, extraction, defoaming, cleaning and speed up chemical reaction,etc.
Model | TU-1000E Ultrasonic Homogenizer Sonicator Cell Disruptor Mixer |
Frequency(Khz) | 20-25KHz Automatic tracking |
Power(W) | 10-1000W Adjustable |

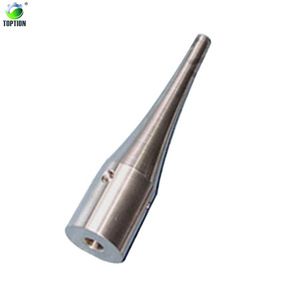

Standard Horn(mm) | 6mm |

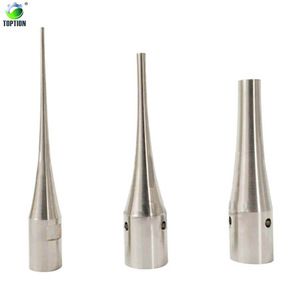

Optional Horn(mm) | 2mm, 3mm, 8mm, 10mm,12mm,15mm,20mm |
Disruption Capacity(ml) | 0.1~800ml |
Input method | Touch control |
Display | 7inch TFT |
Display items | Temperature, power, wave form, amplitude, pulse, time etc, total 10 items. |
Protection devices | Self-diagnostic function, program automatic error correction, over-load / over-temp. Protection display, etc. |
Login password protection | yes |
Computer on-line function | optional |

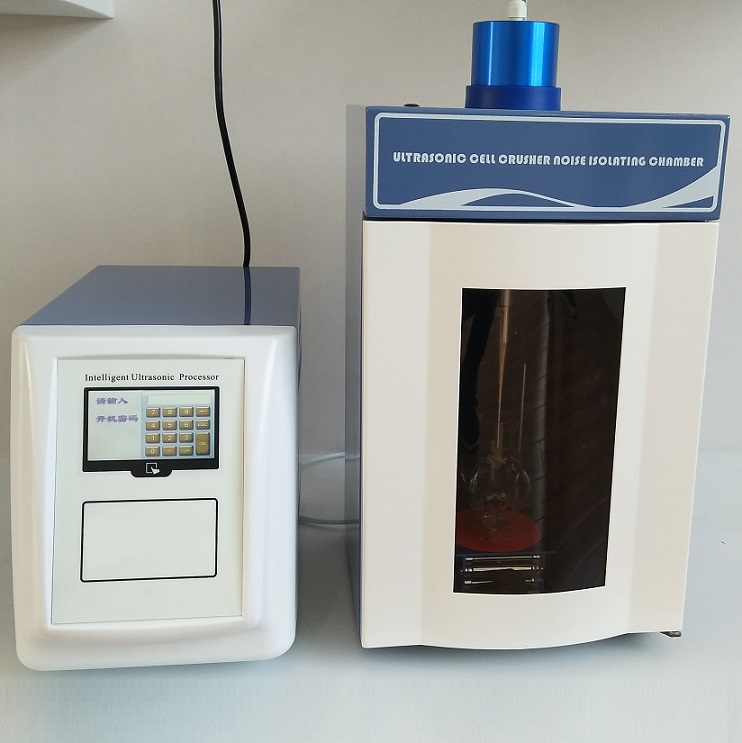

Sound proof box | illumination, sterilization, automatic lifting, etc function. |
Other function | Date storage 20 sets, print, ultrasonic interval / continuously etc function. |
1. the average droplet size of emulsion formed by ultrasonic emulsification is small, which can be 0.2 ~ 2um. The droplet size distribution range is narrow, and it can be 01 ~ 10um or narrower.
2. the concentration of ultrasonic emulsion is high, the concentration of pure emulsion can exceed 30%, and the emulsifier can be up to 70%.
3. the emulsion formed is more stable. An important characteristic of phacoemulsification is that it can produce very stable emulsion without or without emulsifier.
4. the type of emulsion can be controlled. Using phacoemulsification, O/W (water oil) and W/O (oil coated water) emulsion can be prepared under some sound field conditions; however, it is impossible to use the mechanical emulsification method, only the properties of emulsifier can control the type of emulsion.
5. toluene is emulsified in water, and a type of emulsion can be formed under low acoustic intensity. Another type of emulsion may be formed under high acoustic intensity.
6. the power required by ultrasonic emulsification to produce milk residue is small.
1.Packing method: Standard export carton or fumigation wooden box or base on your requests.
2.Shipping method: By Express door to door, or by ship, based on customer choice.
1. What's the probe sonicator ultrasonic homogenizer?
cell disrupter is a multi-function and multi-purpose instrument which produces cavitation effect in liquid by ultrasonic wave. It can be used for the fragmentation of various animals, plants, viruses, cells, bacteria and tissues, and can also be used for emulsification, separation, homogenization, extraction, defoaming, clarity, preparation of nanomaterials, dispersing and accelerating chemical reactions.
2. What's the optional parts of probe sonicator ultrasonic homogenizer?
Low temperature (control of sample temperature);
Foot tread;
PLC (can be connected to a computer);
Double beaker;
Horns cup;
3. Are you accept OEM order?
Certainly, but we have quantity requirement, please feel free to contact our sales person for details.
4. Are you trading company or manufacturer ?
We are manufacturer, welcome to visit our company.
5. Voltage 110V 60Hz North America standard can be provided?
Yes, 110~230V 50/60Hz equipment can be provided by us.
6. What's the lead time after payment?
within 5 working days. Generally, only 3 days for lead time.
7. What payment method can be accept? how to pay?
wire transfer to our company account; Western Union; Paypal; Trade Assrance by Credit card, T/T, OR e-Checking, etc
