Waste water dewatering technology for citric acid,stainless steel coated cardboard press filter

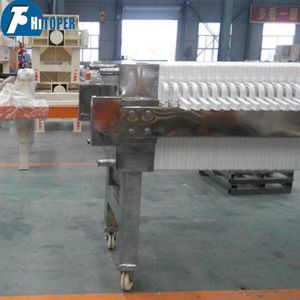

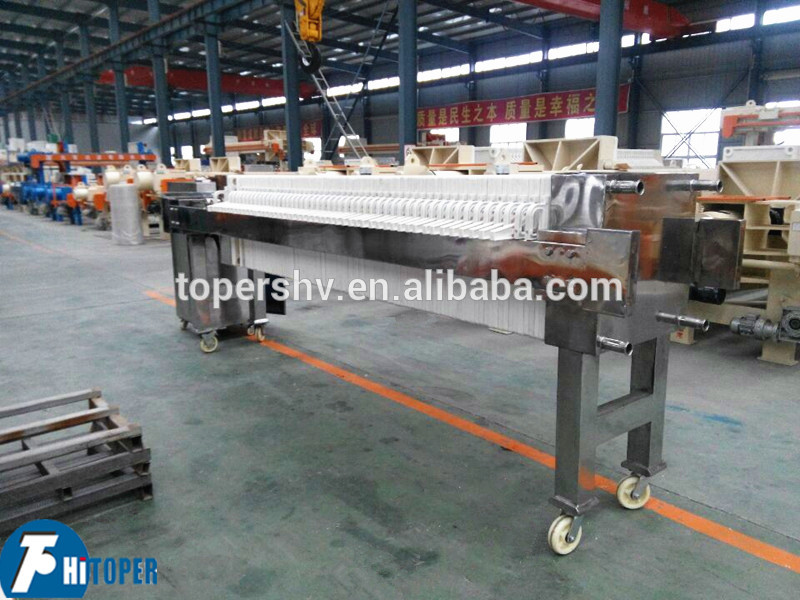

PP plate-frame cardboard filter press Introduction:
Plate and frame type cardboard filter press made of stainless steel, simple structure, convenient operation, easy maintenance and low operating costs, the biggest advantage is the good filtration quality, stable performance.
Working Principle:
Its structure by frame, piping system, fine filter plate group, the clamping device (with variable speed the handwheel, manual hydraulic, automatic hydraulic equipment for the user to choose), the filter with the cardboard, to after coarse filter, liquid turbidity value reaches the specified requirements for further purification. According to the performance of the board can realize fine filtration and asepsis filtration, especially with aseptic cardboard can be 0.2 ~ 0.5 microns and solid particles 100% intercept the bacteria, which can replace the pasteurized old technology, better retain the properties of the concentrate, so the cardboard fine filter plate and frame type is also known as aseptic filtration machine.
The fine filter is widely used in beer, wine, wine, health wine, juice concentrate, gelatin, seaweed gel after spurt to precision filtration or aseptic filtration of liquids. Especially for health wine, after a diatomite filter and after dealing with the frozen again after the fine filter can effectively solve the problem of floc.
The fine filter machine has simple structure, convenient maintenance, easy to operate, and filter the advantages of stable and reliable quality.
Filtering principle:
To filtrate under the action of certain pressure into the fine filter, respectively, into the each filter unit, under the influence of the ability of adsorption, intercept, remove the residue, the clear liquid of each filter unit to filter out converge in together, out of fine filter, thus make the filtrate obtained further purification.
Technical Parameter:
| TYPE | Filter area (m2) | Filter chamber volume (L) | plate size (mm) | Cake thickness (mm) | Number plate (pcs) | Number frame (pcs) | Weight (kg) | Pressure (Mpa) | Dimensions L x W x H(mm) |
| BAY10/610-25u | 10 | 128 | 550 | 25 | 16 | 17 | 690 | 0.4 | 2650x1020x1020 |
| BAY15/610-25u | 15 | 189 | 550 | 25 | 24 | 25 | 715 | 0.4 | 3050x1020x1020 |
| BAY20/610-25u | 20 | 257 | 550 | 25 | 33 | 34 | 727 | 0.4 | 3450x1020x1020 |
| BAY25/610-25u | 25 | 317 | 550 | 25 | 41 | 42 | 738 | 0.4 | 3820x1020x1020 |
| BAY30/610-25u | 30 | 378 | 550 | 25 | 49 | 50 | 750 | 0.4 | 4300x1020x1020 |
Other type of Toper's filter and separator equipment:
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory
4.Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.
Why choose us

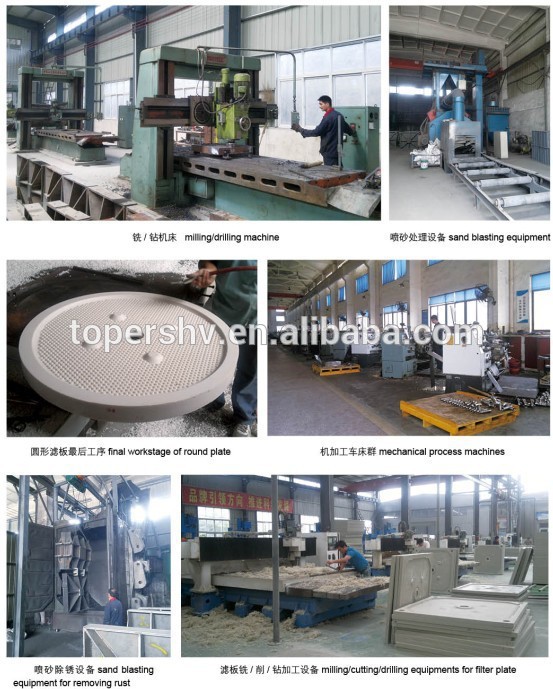

1. Manufacture experience,

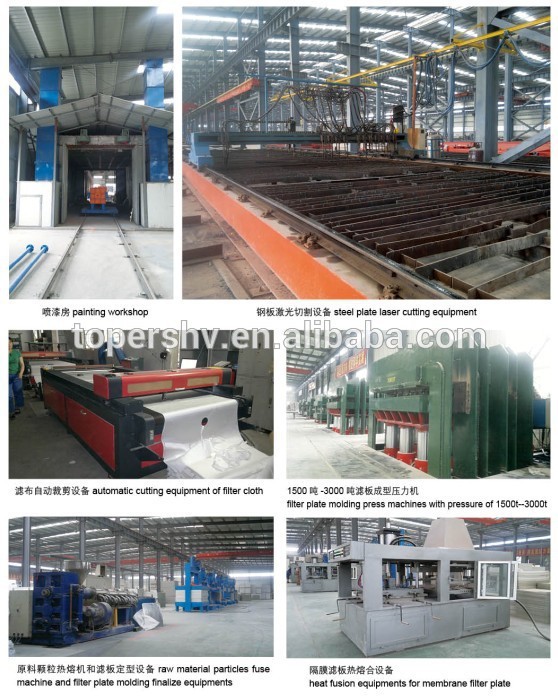

Since 1997, we have done a lot of innovation and improvement in the field of filter and separation
equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery
time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate,
also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue
developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right
type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve
your problems on the basis of no influence of your equipment working.
All of our products
1. Program-controlled automatic filter press
2. Membrane filter press

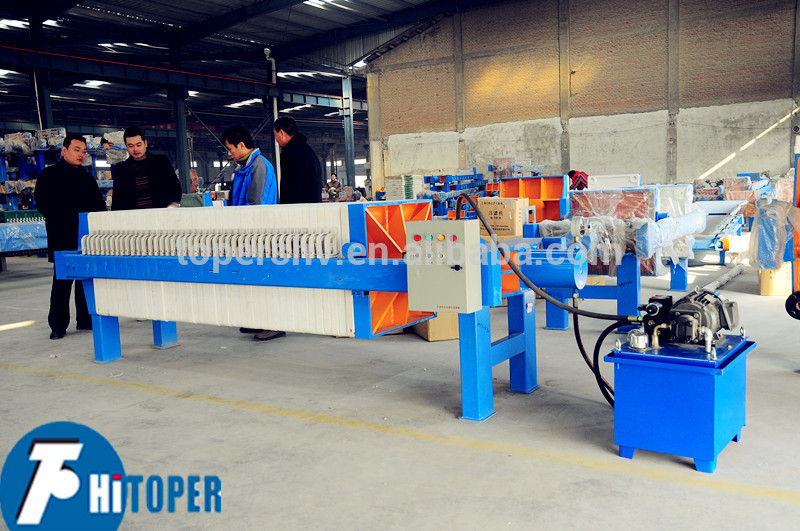

3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press

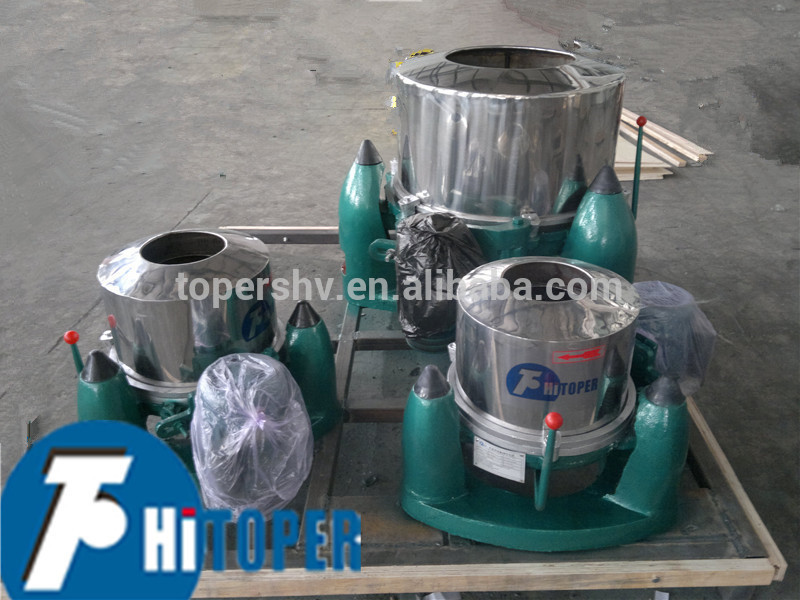

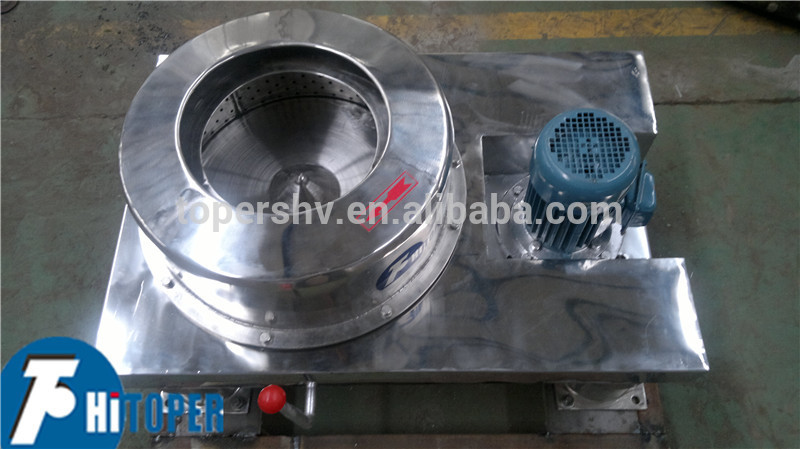

15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
