ZLG Vibrating Fluid Bed Dryer For Citric Acid

Material is fed into the dryer from feeding port, under the action of vibrating force, material moves forward with the fluidized state continuously along the horizontal direction.

Technical Feature

  • New
  • Fluid Bed Drying Equipment
  • Jiangsu, China (Mainland)
  • MACAT
  • ZLG-180
  • 220V,380V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~100

PRIMARY PARAMETERS

Condition
New
Type
Fluid Bed Drying Equipment
Place of Origin
Jiangsu, China (Mainland)
Brand Name
MACAT
Model Number
ZLG-180
Voltage
220V,380V
Power(W)
3.0*2KW
Weight
5500kg
Certification
CE,ISO9001,UL
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Fluid bed
5.625u33a1

DETAIL DESCRIPTION

Product Description



Material is fed into the dryer from feeding port, under the action of vibrating force, material moves forward with the fluidized state continuously along the horizontal direction. Hot air passes through fluid bed from bottom to up and does heat exchange with damp material. After the powder is collected by cyclone separator, damp air is exhausted out. Dried product is discharged from discharging port.

Features



1.Upper bed and bottom bed adopt the new quit-open type structure, upper bed can be moved quickly. It is easy to clean completely.

2.Bed plate adopts laser punching way to make, it can avoid the plate be out of shape during the common punching process

3.Bottom plate is supported by stainless steel seamless tube, the structure of bed is stronger, and operational life is long

4.Material is heated uniformly, heat exchange is full, drying intensity is high, energy saving is about 30% than common dryer.

5.Vibrating source is vibrating motor, its work is stable, easy to maintain, noisy is low, life is long.

6.Fluidized state is stable, no dead corner or broken out phenomenon

7.Adjustability is good, and application scope is wide

8.Small damage to the surface of material, it can be used for drying breakable materials. It doesn effect the work efficiency when the shape of material is irregular.

9.Adopts all closed structure, it can avoid the cross pollution between material and air effectively. Work environment is clean.

Application



Vibrating fluid bed dryer is widely used in light industry, chemical industry, foodstuff, agricultural products, powder, granule, and small block material in pharmaceutical industry. Material examples are as following: refined salt, aginomoto, citric acid, oxalate, potassium permanganate, sesame, pentaerythritol, HPAM, feed, hypha protein, sodium sulfate, plastic archon, catalyst, stripping and slicing potato, baking soda, detergent, quartz sand, soybean billet, ban pulp, metal powder, boric acid, sodium borate, activated clay, compound fertilizer, eat.

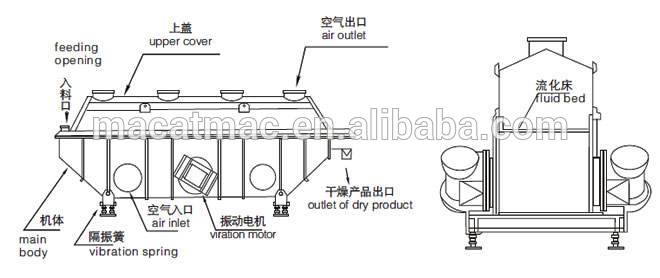

Sketch Of Flow Chart

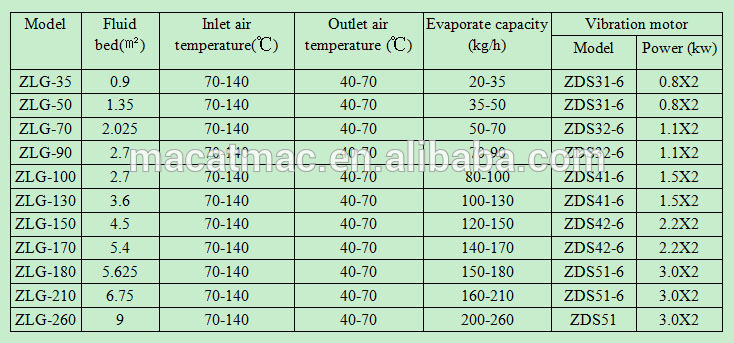

Technical parameters

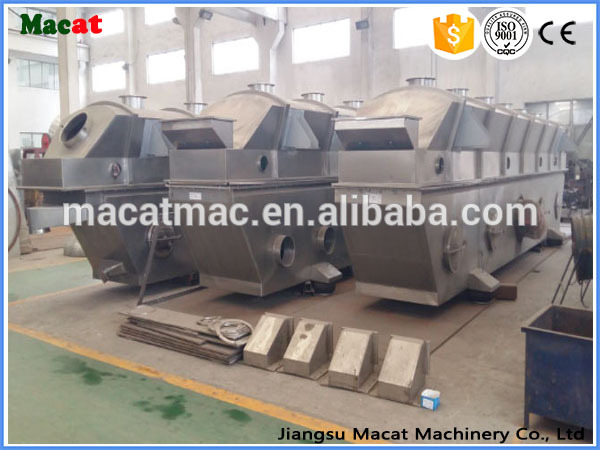

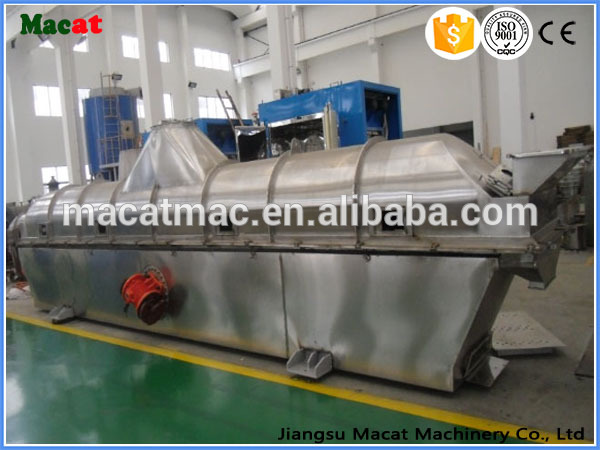

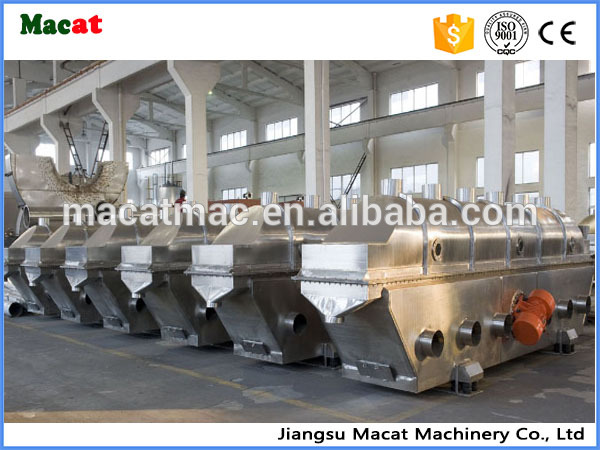

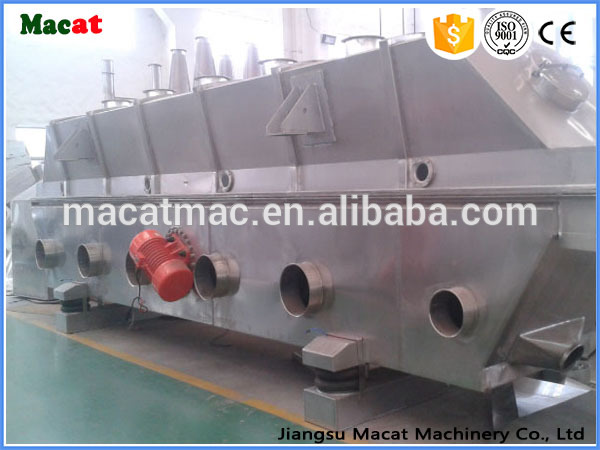

Product Picture

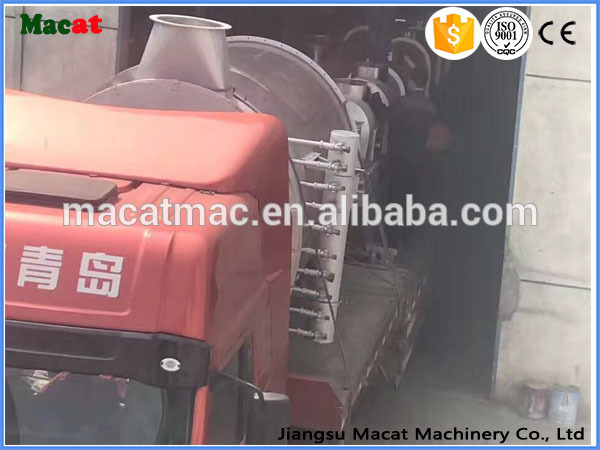

Packaging & Shipping



Our Services

 1.Warranty time: 1 year;
2.Delivery time: Usually 15 working days to 90 working days depending on the model you order.
3.Payment terms: T/T or L/C or Online
QAQ
1.Q:Do you  have factories?

A:Yes,we have two factories in Changzhou City on drying machine, and we have a filling and packing machine factory in Wuxi City.All in Jiangsu Province ,and quite near Shanghai.

2.Q:How is the progress for  an new order?

A:1) we will provide pre-sale service, it is free.Just contact us ,and tell us what you want to dry, and capacity you need and some necessary  conditions, our sales and technical people will give the best suggestion for you.
2) Once you have confirm,or if you like, welcome to visit our factories.You can sign the contact with us, and pay deposit.
3)After deposit, we will send you the drawing of each part, and confirm with you.If okay, we begin producing.
4)When completed, we will send the picture or video to you for confirmation.Or you can come  to check.If all okay,payment of balance will be needed.
5)We send the machine and you will get the machine soon.

3.Q:How can I progress if I order?

A:First,we are the gold supplier of Alibaba.And second, we are a good and large company.Third,if you still worry about it, you can order online.So your money will be in Alibaba account, and after receiving, we can get the money.

4.Q:Is the after-sales good?

A:Order is beginning of every business, not end.And after-sales service should good enough, otherwise we will have not future order.So do not worry about this.

If you are interested in our products, please contact me freely now.
