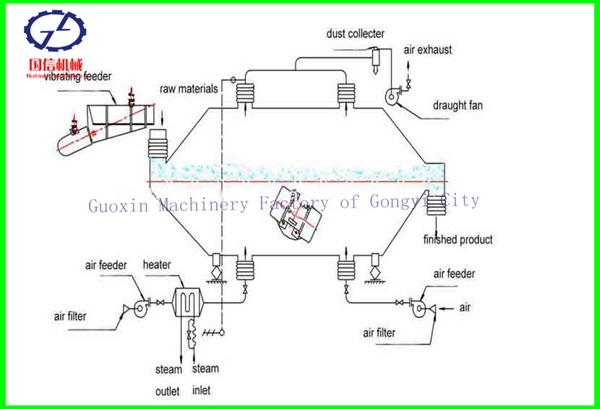

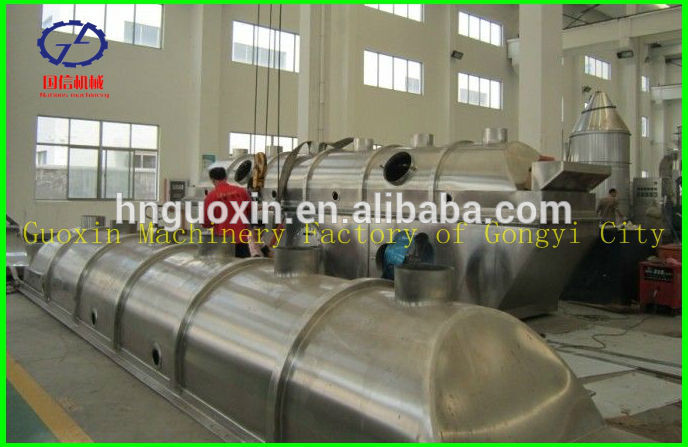

The working principle of fluid bed dryer for salt:
The raw material is fed into the fluid bed dryer for salt from the feeder port and moves forward continuously along with the level of the fluid bed under the action of vibration.
The hot air passes through fluid bed and carries out heat exchange with damp raw material,

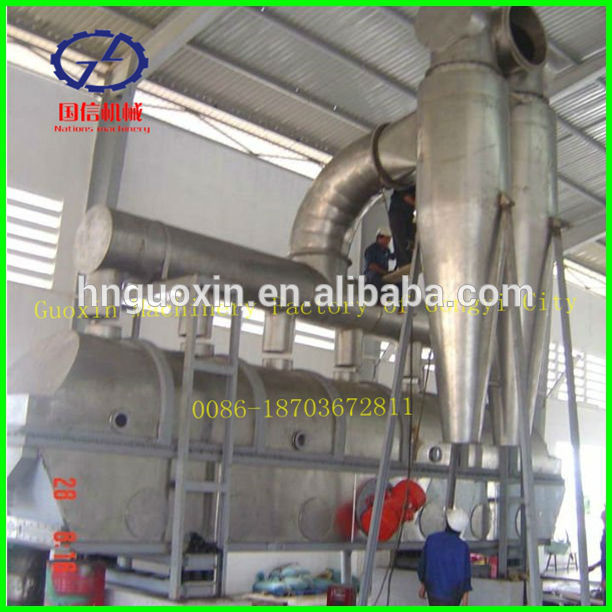

Then the damp air is exhausted out through cyclone separator and the dried materail will be come out at the discharge port.
Technical parameters of fluid bed dryer for salt:
| ZLG240 | ZLG360 | ZLG450 |
diameter of roll(mm) | Φ240 | Φ360 | Φ450 |
width of roll(mm) | 80-160 | 180-500 | 220-1000 |
revolution of roll(rpm) | 15,20,26,32 | 14,18,24,30 | 10-25 |
Max.prssure of roll(mpa) | 120 | 160 | 210 |
Max.thickness of pill(mm) | 4 | 8 | 8 |
capacity of pill(kg/h) | 200-500 | 500-3000 | 800-5000 |
diameter of finished pill(mm) | 0.5-6 | 0.5-8 | 0.5-6 |
capacity of finished product(kg) | 160-400 | 400-2400 | 680-4000 |
power of main machine(kw) | 7.5 | 22-37 | 45 |
total power(kw) | 20 | 50 | 80 |
overall dimension(L*w*H)(mm) | 1500×1300×5000 | 2000×2000×9000 | 2500×2500×10000 |
weight(t) | 6 |

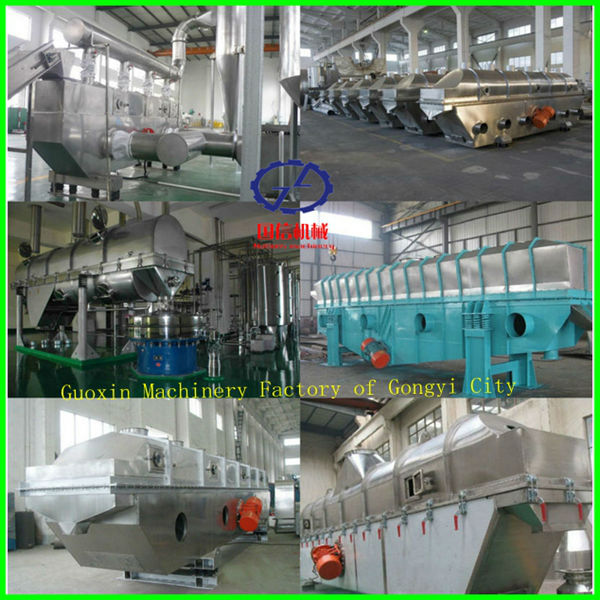

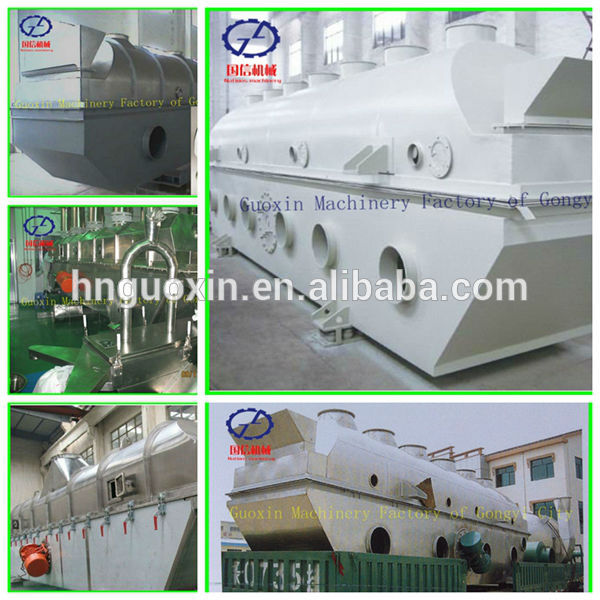

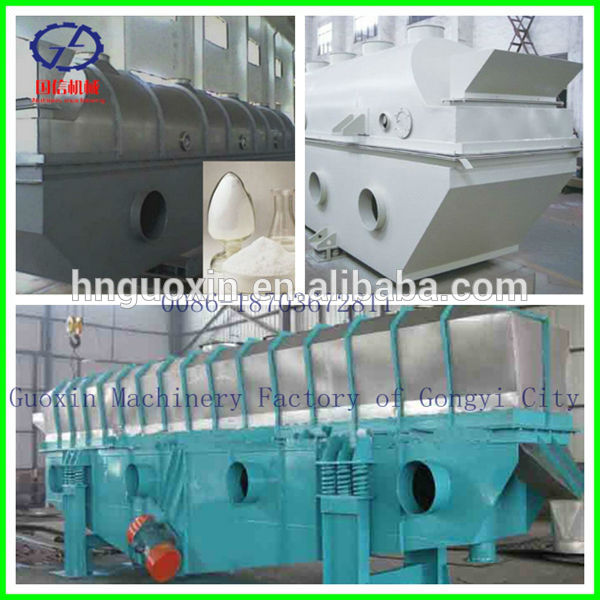

Features of ZLG powder fluid bed dryer for salt:
With new type quick-open structure for upper bed and bottom bed. Upper bed can be moved easily. So it is very convenient to clean and wash the drying system.
The salt plate adopts laser punching, it can avoid the deformation in common punching process effectively.
Bottom fluid bed dryer for salt adopts stainless steel seamless tube for supporting, the structure of bed is more stronger and make the life of equipment longer.
Material is heated uniformly, heat exchanging is full and drying intensity is high. Energy can be saved about 30%.
Vibration source is vibrating motor. It features constant operation, convenient maintenance, low noise and long life.
Fluid state of fluid bed dryer for salt is stable, there is no phenomenon of gap or blowing out.
There is less damage to the surface of material. It can be used for drying material that is easy to broken.
The usage for fluid bed dryer for salt:
This kind of fluid bed dryer is suitable for chemical industry,light industry,pharmaceutical,food,plastic,oil,slag,salt,sugar etc.
If you have any more confused and questions about fluid bed dryer for salt. please contact with us. We warmly welcome you come our factory to check machine here.
Good luck to you.
