FL Series Fluid Bed Dryer and Granulator

The powder granulating can improve the liquidity and reduce dust.

Technical Feature

New

Other

Jiangsu, China (Mainland)

ZHENGAN

220v/380v

Send Standard Inquiry

Add Inquiry List

$1~58

PRIMARY PARAMETERS

Condition

New

Type

Other

Place of Origin

Jiangsu, China (Mainland)

Brand Name

ZHENGAN

Model Number

Voltage

220v/380v

Power(W)

2.2-37kw

Dimension(L*W*H)

variable

Weight

variable

Certification

ISO9001

Warranty

1 Year

After-sales Service Provided

Engineers available to service machinery overseas

Material

Stainless Steel

Installation

Guided

Capacity

5-300kg/batch

Heating source

Customized

Power

2-40kw

DETAIL DESCRIPTION

FL Series Vertical Fluidizing & Granulating Dryer

FEATURES

1. The powder granulating can improve the liquidity and reduce dust.

2. The powder granulating can improve the solubility.

3. Mixing, granulating, and drying can be done by the same machine(one step granulation)

4. Use electrostatic to filter materials, safe working condition.

5. The atomizer for adhesive adapts multiple spray lances, the particle is uniform and the qualified rate of finished product is high.

6. There is no dead corner in granulator so the feeding and discharging is quick and convenience.

APPLICATION

GRANULATING AND COATING

Medicine
Granulating: Tablet Granule, Quick Solved Granule, Granule Capsule

Coating: Granule, Pill Protection, Formulated Color, Slow Release, Film, Enteric
Foodstuff
Sugar, Coffee, Cocoa Powder, Cream, Powder Syrup, Amino Acid, Seasonings, Puffed Food

GRANULATING

Pesticide, Pigment, Dyestuff
DRYING

Powder, Granule, Block Materials

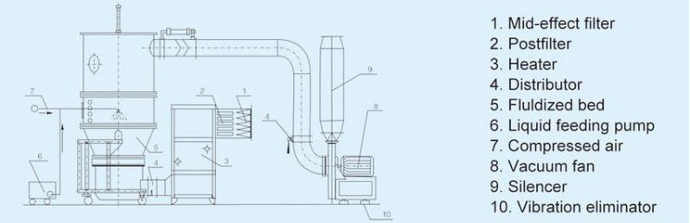

FLOWCHART

TECHNICAL PARAMETERS

Item
3
5
15
30
45
60
90
120
150
200
300
500
Volume(L)
12
22
45
100
155
220
300
420
530
660
1000
1500
Processing Capacity
(kg/per time)
1.5/4.5
4/6
10/20
15/45
25/65
40/80
60/120
80/160
90/200
100/300
150/450
300/300
Fan Power (kw)
2.2
3
4
5.5
7.5
11
15
18.5
18.5
22
30
37
Steam Consumption 0.4MPa(kg/h)
12
23
42
70
99
141
169
211
251
282
366
451
Compressed Air
Consumption m3/min
0.3
1.3
0.3
0.4
0.4
0.6
0.6
0.9
0.9
0.9
1.3
1.5
Noise, dB(A)
(fan is installed separately)≤75
Overall Dimension(m)
LxWxH
1.0x 0.55x1.8
1.2x 0.6x2.1
1.25x 0.9x2.1
1.6x 0.9x2.3
1.65x 1.1x2.4
1.85x 1.25x3
1.85x 1.25x3
2.2x 1.65x3.1
2.27x 1.72x3.1
2.34x 1.9x3.5
2.8x 1.9x3.8
3x 2.55x4.2
