Product Description
Applications of batch type fluid bed dryer :
1. For drying powder,small granule and diced products with good flowability in Food,Chemical and Pharmaceutical industry ;
2. Drying temperature: RT-180 degree C (adjustable)
3. Drying capacity: 5-500 kg/batch
4. GMP design
5. Heat supply can be steam, electricity, hot water, hot oil and oil/gas fired hot air generator.
Working principle of batch type fluid bed dryer :

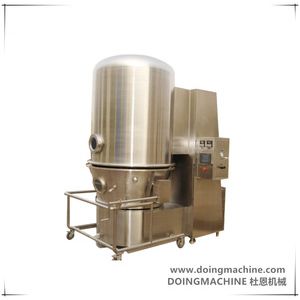

GFG series batch type fluid bed dryer is designed based on the GMP standard and is known for its enhanced drying capacity and sanitary operation condition. This design is mainly used to dry small granules and powder materials with good flowability in foodstuff, pharmaceutical and chemical industry.

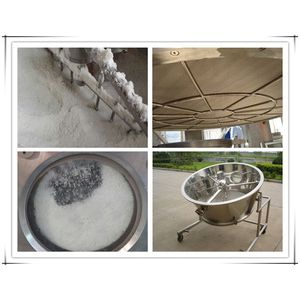

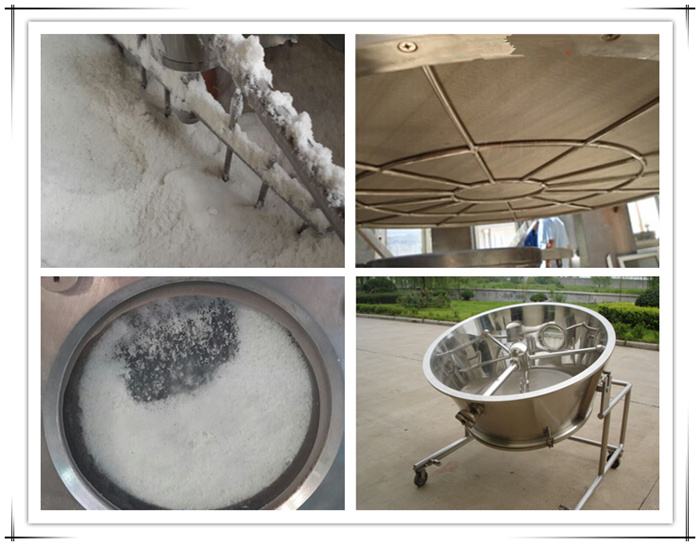

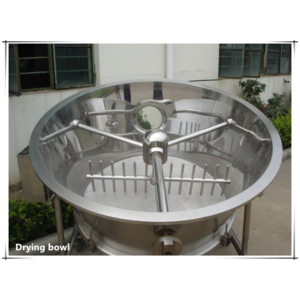

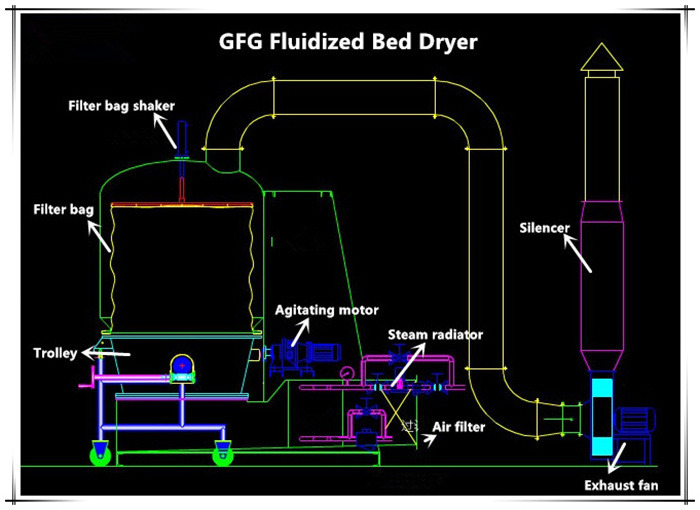

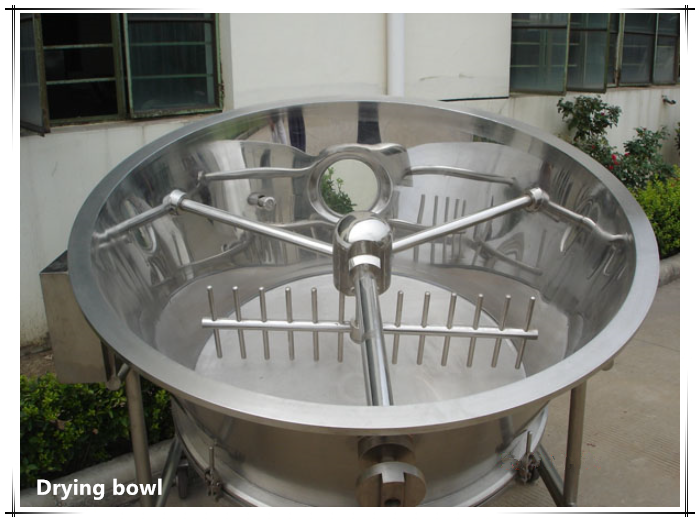

After being heated and filtered, the fresh hot air is blew into the air distributor at the bottom of the machine and penetrate through the perforated bowl on which wet materials are loaded. Under the effect of air-flow and agitator, the wet material is completely fluidized. During the fluidization, the moisture is rapidly evaporated. At the top of dryer, filter bags are fixed to separate fine products from the exhausted damp air. And the filter bags are regularly cleaned by compressed air jetting. At the exhaust vent, a silencer is combined to lower the noise.
GFG series batch type fluid bed dryer is designed based on the GMP standard and is known for its enhanced drying capacity and sanitary operation condition. This design is mainly used to dry small granules and powder materials with good flowability in foodstuff, pharmaceutical and chemical industry.
After being heated and filtered, the fresh hot air is blew into the air distributor at the bottom of the machine and penetrate through the perforated bowl on which wet materials are loaded. Under the effect of air-flow and agitator, the wet material is completely fluidized. During the fluidization, the moisture is rapidly evaporated. At the top of dryer, filter bags are fixed to separate fine products from the exhausted damp air. And the filter bags are regularly cleaned by compressed air jetting. At the exhaust vent, a silencer is combined to lower the noise.
Technical advantages of batch type fluid bed dryer :

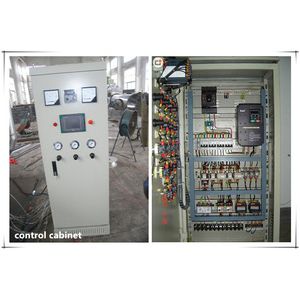

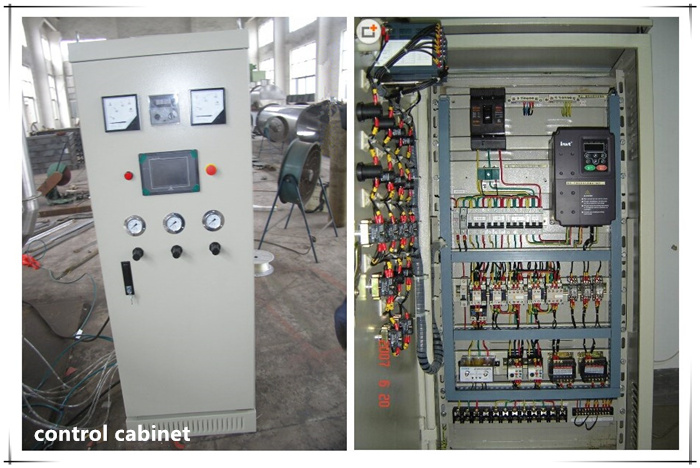

1. Easy and convenient temperature control: The drying temperature is controlled by temperature sensor which makes it very easy to control and display the drying temperature through the control panel.
2. Perfect fluidization: With the special designed agitator, the fluidization is perfect and without dead corner.
3. Wide application scope: The application scope is extensive and its drying efficiency is relatively high.
4. Good compatibility: It can be use to dry sticky granules with wide granule size distribution.
5. Sanitary working condition: The whole machine body is compact and easy to clean, operate and install. Its working condition can meet the GMP standard.
6. Enhanced drying capacity: Because of perfect fluidization, the drying time is considerably reduced.
1. Easy and convenient temperature control: The drying temperature is controlled by temperature sensor which makes it very easy to control and display the drying temperature through the control panel.
2. Perfect fluidization: With the special designed agitator, the fluidization is perfect and without dead corner.
3. Wide application scope: The application scope is extensive and its drying efficiency is relatively high.
4. Good compatibility: It can be use to dry sticky granules with wide granule size distribution.
5. Sanitary working condition: The whole machine body is compact and easy to clean, operate and install. Its working condition can meet the GMP standard.
6. Enhanced drying capacity: Because of perfect fluidization, the drying time is considerably reduced.

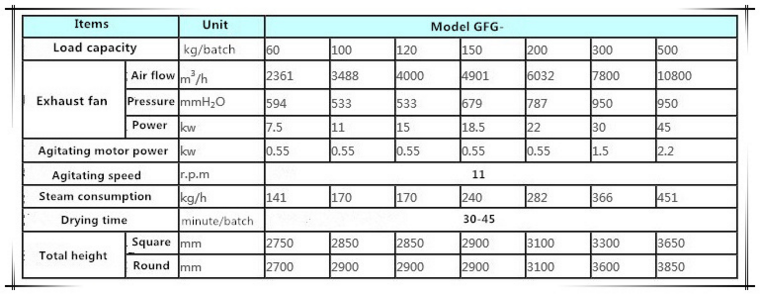

Standard Models of GFG series batch type fluid bed dryer :
