NN15 Pneumatic diaphragm pump (plastic)

NN15 Pneumatic diaphragm pump (plastic)

Technical Feature

  • -
  • -
  • -
  • -
  • -
  • -
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1000~5000

PRIMARY PARAMETERS

Brand name
Ningneng
Application
-
Process input material
-
Process output material
-
Place of origin
China
Equipment material
-
Power (kW)
-
Weight (kg)
6.8
Outer dimension (mm)
-
Warranty
One year
Delivery
30 days
Main spare parts
-

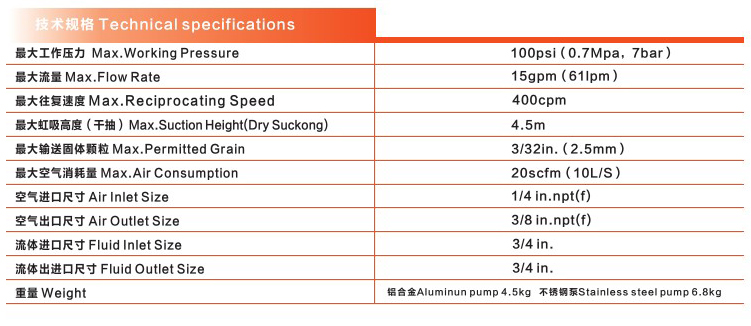

MODEL SPECIFICATIONS

Model NN15
Max. working pressure(Mpa) 0.7
Max. flow rate(Lpm) 61
Max. Reciprocating speed(cpm) 400
Max. suction height(dry suckong)(m) 4.5
Max. permitted grain(mm) 2.5
Max. air consumption(L/s) 10
Air inlet size 1/4 in.npt(f)
Air outlet size 3/8 in.npt(f)
Fluid inlet size 3/4 in.
Fluid outlet size 3/4 in.

DETAIL DESCRIPTION


NN15 Pneumatic diaphragm pump (plastic)
