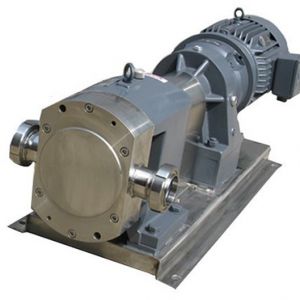

Rotor pump

Lope pump is also referred as colloid pump, rotary pump, three lobe pump, milti-purpose conveying pump, and it may be categorized into positive displacement pump. Material conveying in rotary pump is perormed by a pair of rotor in synchronous ratation

Technical Feature

Single impeller

Double impeller

Tri-impeller

Multi-impeller

Send Standard Inquiry

Add Inquiry List

$500~5000

PRIMARY PARAMETERS

Brand name

Ningneng

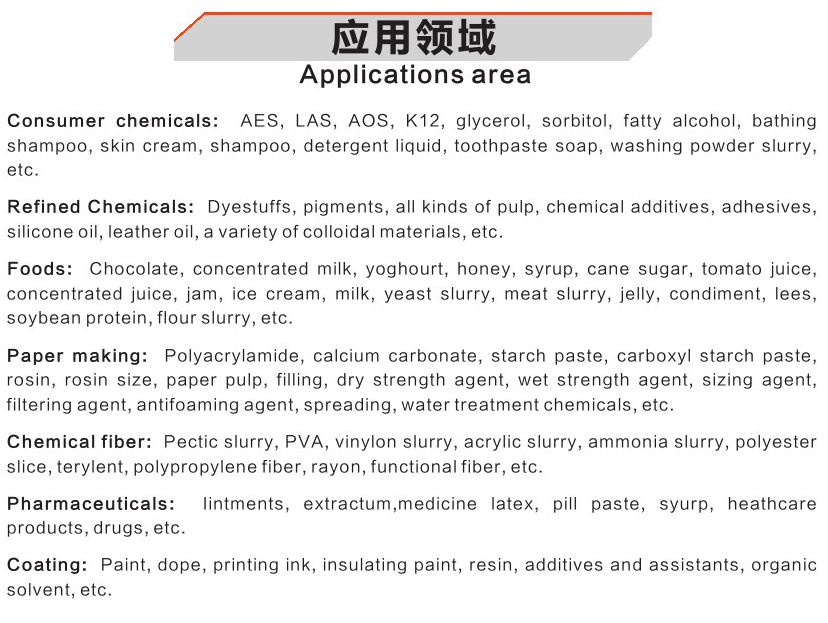

Application

Consumer chemicals, refined chemicals, foods, paper making, chemical fiber, pharmaceuticals, coating

Process input material

Process output material

Place of origin

China

Equipment material

SS304 & CS

Power (kW)

Depends

Weight (kg)

Depends

Outer dimension (mm)

Depends

Warranty

One year

Delivery

30 days

Main spare parts

MODEL SPECIFICATIONS

Model	15NNB12-0.5	25NNB12-2	40NNB12-5	50NNB12-10	65NNB12-15	65NNB12-20	80NNB12-30	100NNB12-40	100NNB12-60	125NNB12-80	150NNB12-120	150NNB12-150	300NNB12-200
Capacity(L/r)	0.04	0.15	0.32	0.65	1.1	1.74	2.6	3.65	5.2	6.8	9.8	12.8	20
Rotation speed(r/min)	10-720	10-720	10-500	10-500	10-500	10-500	10-500	10-500	10-500	10-500	10-400	10-400	10-300
Flow(m3/h)	0.5	2	5	10	15	20	30	40	60	80	120	150	200
Pressure(Mpa)	0.1-1.2	0.1-1.2	0.1-1.2	0.1-1.2	0.1-1.2	0.1-1.2	0.1-1.2	0.1-1.2	0.1-1.2	0.1-1.2	0.1-1.2	0.1-1.2	0.1-1.2
Power(kw)	0.25-1.5	0.25-2.2	0.37-3	1.5-7.5	2.2-11	2.2-15	3-22	4-30	5.5-45	7.5-55	11-90	15-160	18.5-185
Suction pressure(Mpa)	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08
Viscosity(Cp)	1-1000000	1-1000000	1-1000000	1-1000000	1-1000000	1-1000000	1-1000000	1-1000000	1-1000000	1-1000000	1-1000000	1-1000000	1-1000000
Inlet & outlet DN(mm)	15	25	40	50	65	65	80	100	100	125	150	150	300

DETAIL DESCRIPTION

Rotor pump

Rotor pump

Technical Feature

PRIMARY PARAMETERS

MODEL SPECIFICATIONS

DETAIL DESCRIPTION
