VB-51DA/VB-51SR Flange ball valve

Face to face: DIN32002 F4/F5, Flange: DIN2501 PN10/16, Certificated to API607 4th Edition

Technical Feature

  • DIN3202 F4/F5
  • DIN2501 PN10/16
  • API607
  • -
  • -
  • -
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$200~1000

PRIMARY PARAMETERS

Material
304  201  304L  316  316L  Customer's request
Standard
ASTM  AISI  GB  JIS  Customers' request
Thickness range
-
Tolerance (mm)
-
Lead time
-
Material brand
-
Place of original
-
Seam type
Seamless
Surface
No.2B

MODEL SPECIFICATIONS

Model -
Size DN15-DN250

DETAIL DESCRIPTION

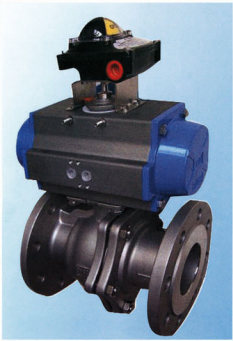

VB-51DA/VB-51SR Flange ball valve


Size: 1/2" -10" (DN15-DN250)

Blow out-proof stem, anti-static design

ISO5211 mounting flange

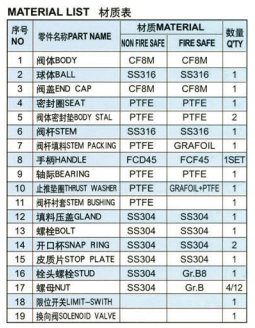

Body: ASTM A-351 Gr, CF8M(DIN 1.4408)

Ball: SS316

Stem: SS316

Seat: PTFE+15%GF

Temperature range: -40 to 450 F

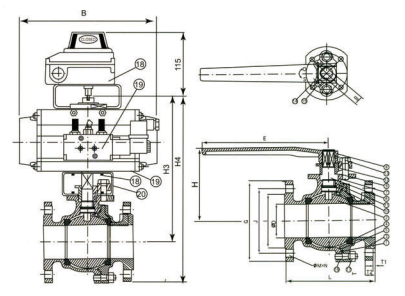

Face to face: DIN32002 F4/F5

Flange: DIN2501 PN10/16

Option: Certified to API607 4th Edition

Options:

  1. Actuator

  2. Solenoid Valve

  3. Limit Switch

  4. Positioner

  5. F.R.L
