VF-735DA/VF-735SR butterfly valve

Flage requirements: designed to suit ANSI 125/150, BS 10 Table E, BS 10 Table D, JIS 10K, DIN PN 10/16, Eather flat face or raised face

Technical Feature

  • ANSI 125/150
  • BS 10 Table E
  • BS 10 Table D
  • JIS 10K
  • DIN PN 10/16
  • Eather flat face or raised face
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$200~500

PRIMARY PARAMETERS

Material
304  201  304L  316  316L  Customer's request
Standard
ASTM  AISI  GB  JIS  Customers' request
Thickness range
-
Tolerance (mm)
-
Lead time
-
Material brand
-
Place of original
-
Seam type
Seamless
Surface
No.2B

MODEL SPECIFICATIONS

Model -
Size DN50-DN600

DETAIL DESCRIPTION

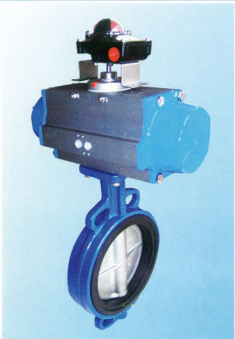

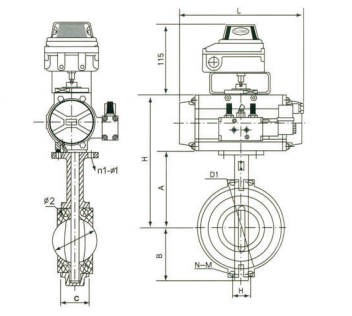

VF-735DA/VF-735SR butterfly valve


Size: 2"-24" (DN50-DN600)

Face to Face: Designed to meet ISO572 table 5 short

Mounting Flange: Desinged according to ISO5211

Flange requirements: Designed to suit:

                 ANSI 125/150

                 BS 10 Table E

                 BS 10 Table D

                 JIS 10K

                 DIN PN 10/16

                 Eather flat face or raised face

Options:

  1. Actuator

  2. Solenoid Valve

  3. Limit Switch

  4. Positioner
