Full automatic style most labor saving filter press,small press filter of recessed plates
Brife introduction of the full automatic style most labor saving filter press
This type of filter press machine is mainly consist of frame,filter plate ,hydraulic pressing system ,PLD control system and electric control cabinet .
According to our research for market and the feedback of our customer, we design and
manufacture the simultaneous plate shifting filter press. This kind of filter press has following
advantages:
- PLC control, automatic plate compress and automatic cake discharge
- fast cake discharge and shorten working cycle

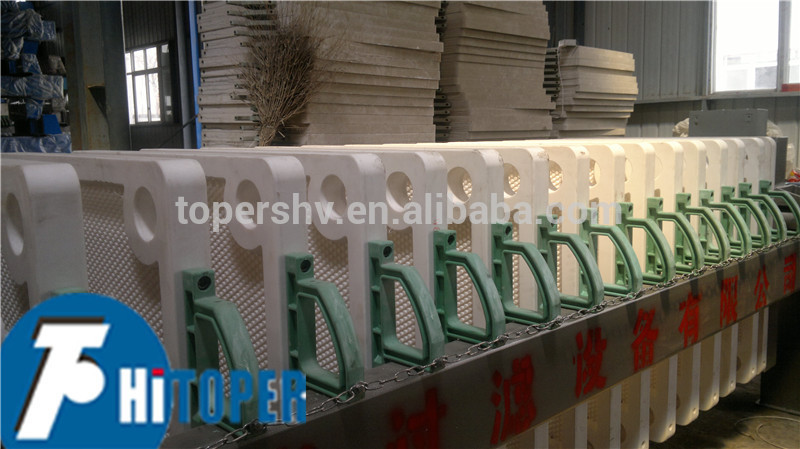

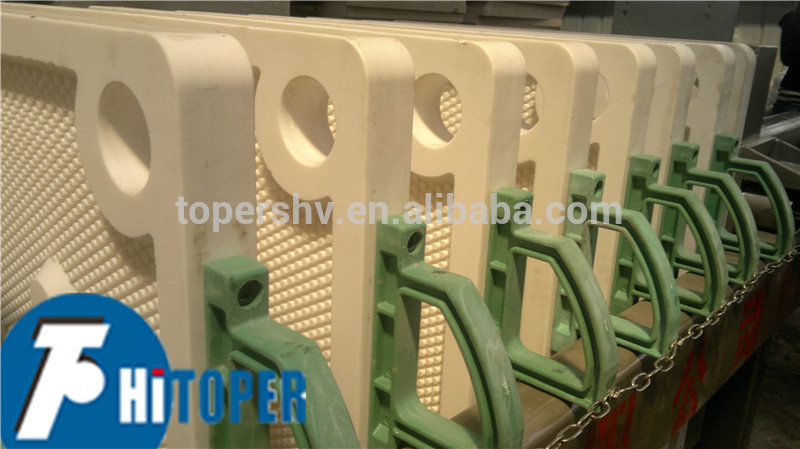

- each filter plate is connected by chains

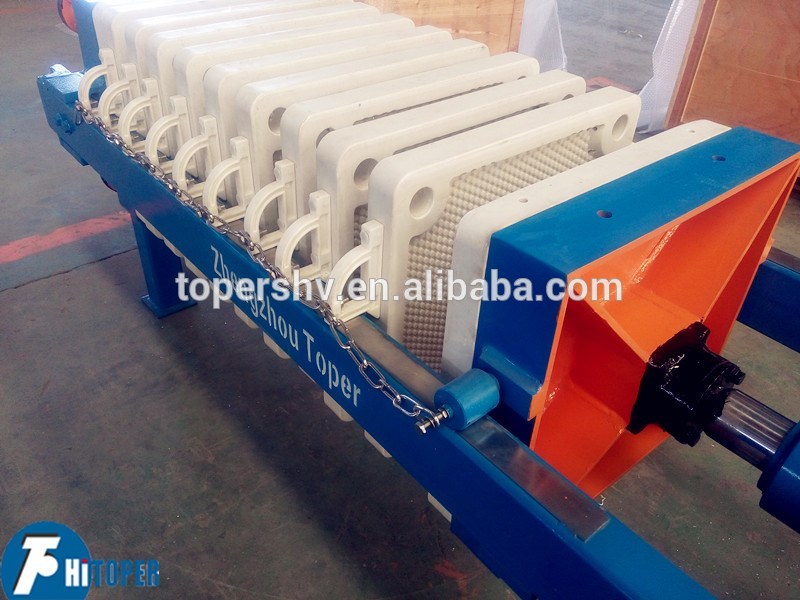

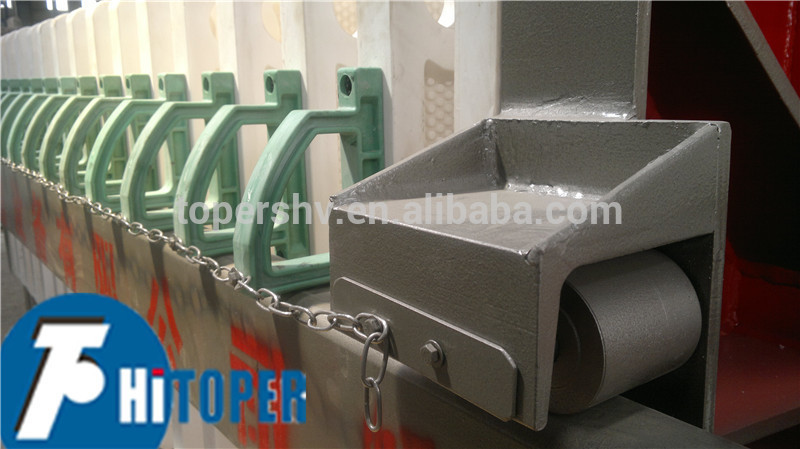

The main difference from other kinds of filter press is the filter plates are linked by the chain,so after the cakes formed in the chamber ,through the pulling plate device,the plates will be opend once ,this proces greatly saving time for the whole process.
The fitler press is widely used in mining ,metallurgy,petroleum,chemical ,environmental protection,electroplating ,food ,pharmacy,oil,biological,beverage,textiles,printing and dreing,papermaking,inorganic salt,coal washing ,sewage treatment,ceramics,leather such industries.
Working principle the full automatic style most labor saving filter press
When the filter press is suitable installation, you can push the power button ,and the pressing process is start as the machine is automatically controled :

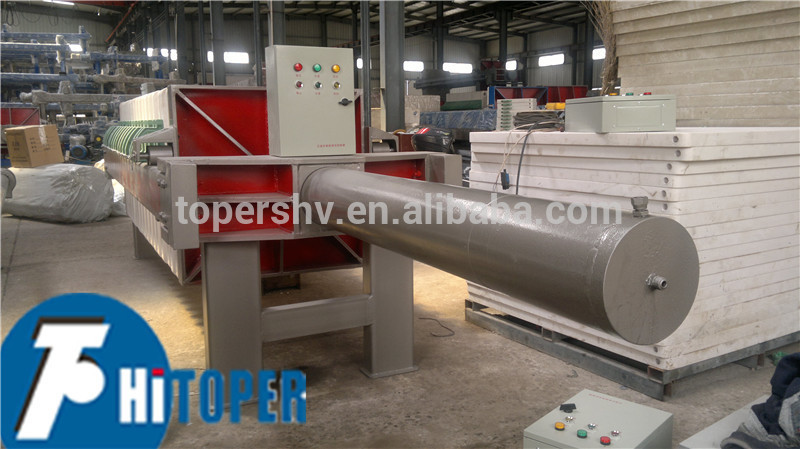

The cylinder piston of hydraulic device drives the push plate to press the filter plate and filter cloth between push plate and tail plate.Filter chamber are formed between pressed filter plates and materials get into the filter chamber through the inlet of tail plate with the help of feeding pump.
Solid particles are remainned in filter chambers forming into cakes ,while liquid is discharged out of the machine through press cake and filter cloth.
To wash the press cakes,washing water can be introduced through the washing inlet of the tail plate.
Technical parameters of the full automatic style most labor saving filter press
| Model | Filter area (m2) | Filter plate size(mm) | Filter cake thickne (mm) | Filter chamber volume (L) | Filter plate number (PCS) | Filtrating pressure (Mpa) | Motor power (kw) | Weight (kg) | Dimension(mm) (L*W*H) |
| XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 890 | 2230×800×900 |
| XY5/450-30U | 5 | 79 | 12 | 920 | 2630×800×900 | ||||
| XY6/630-30U | 6 | 630×630 | 95 | 7 | 1450 | 2200×1050×1150 | |||
| XY8/630-30U | 8 | 119 | 9 | 1500 | 2400×1050×1150 | ||||
| XY10/630-30U | 10 | 154 | 12 | 1610 | 2540×1050×1150 | ||||
| XY12/630-30U | 12 | 178 | 14 | 1720 | 3130×1050×1150 | ||||
| XY15/630-30U | 15 | 226 | 18 | 1880 | 3550×1050×1150 | ||||
| XY10/870-30U | 10 | 870×870 | 154 | 7 | 1940 | 2720×1270×1300 | |||
| XY20/870-30U | 20 | 208 | 15 | 2230 | 3500×1270×1300 |

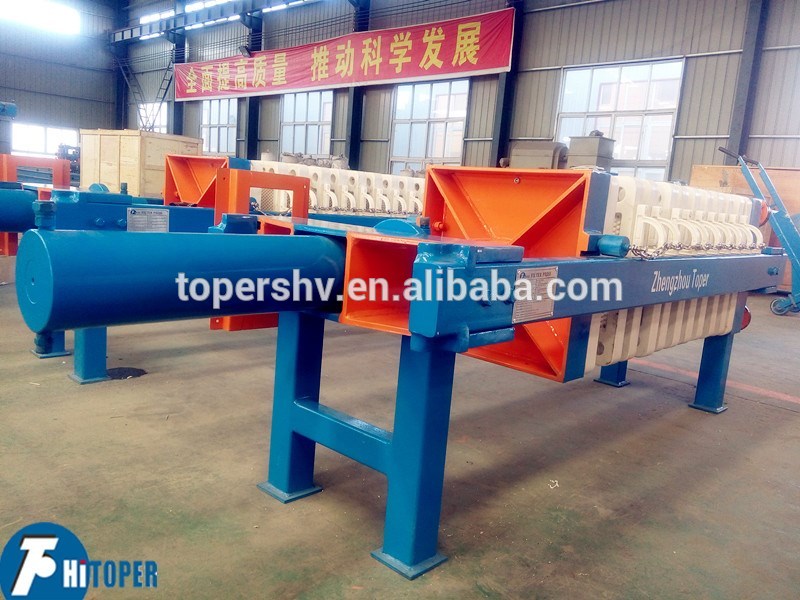

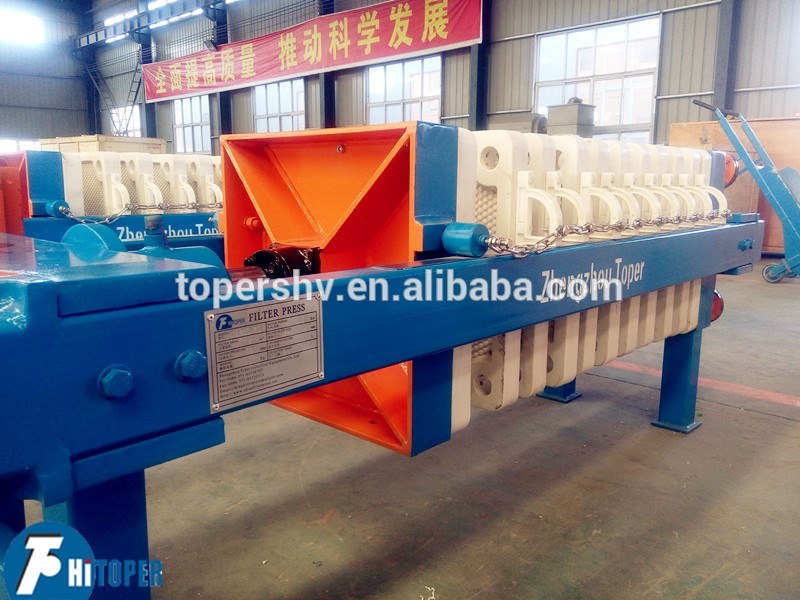

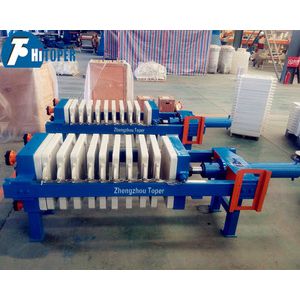

More detail photos of the full automatic style most labor saving filter press
Widely application of Toper's filter press in variety industry :
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory
4.Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.
Zhengzhou Toper is the leading supplier of industrial eqipment in China,and also the professional export and service provider of fitler and separation equipment.Also ,we focus on full service for filtering project from desigh to after -sale service and fast supply of spare parts.
