multistage hydrocyclone unit for concentration ,rinsing, and refining of starch milk

Adopt combination system of single cyclone tube for easy maintenance and low cost.

Technical Feature

  • Anhui, China (Mainland)
  • sgt
  • sgt
  • Grain Processing Equipment
  • Engineers available to service machinery overseas
  • starch process
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Place of Origin
Anhui, China (Mainland)
Brand Name
sgt
Model Number
sgt
Type
Grain Processing Equipment
After-sales Service Provided
Engineers available to service machinery overseas
Application
starch process

DETAIL DESCRIPTION

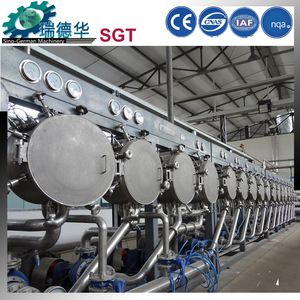

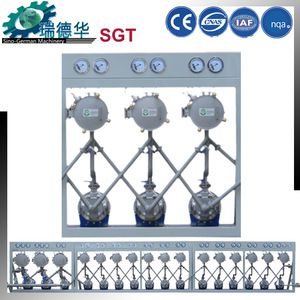

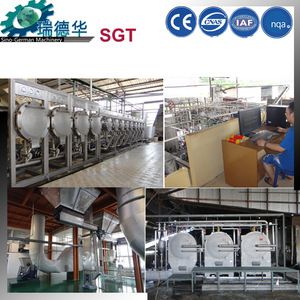

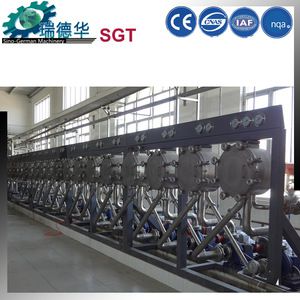

SGT the most advanced multistage hydrocyclone unit





 Main Features:

1.Adopt combination system of single cyclone tube for easy maintenance and low cost.

2.Stable parameter control results in smooth running thus to produce higher grade product.

3.Wholly in SS material

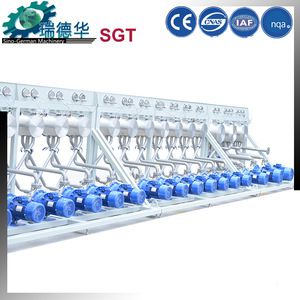

4.Adopt self-developed centrifugal pump with shrouded impeller especially suitable for potato starch application,which perform stable working condition.

5.Cyclone tube is made of US.FDA Approved material.

6.Utilize medium-high pressure for higher rinsing efficiency.

7.Adopt the optical design and material for sealing to prevent from leakage.

8.Different types of hydro cyclone are available for different feeding materials,features easier operation&maintenance and higher rinsing efficiency.



Main Technical Specification

modelDrum Dia(mm)Motor(kw)CapacityWeight(kg)
HCC250.02503-7.55-945.96
HCC300.03007.5-1110-1659.4
HCC350.03507.5-1120-2486.16
HCC400.040011-1530-40102.9
HCC450.045015-18.545-55120.5
HCC500.050015-2250-70143
HCC550.055018.5-3770-85166.41

Packaging & Shipping

Our Services



Our Committment

SGT is dedicated to providing customers with satisfaction service experience of easy access and high-effiency.With advantages of professionals backup,7*24 stay on the line,on-site service,training,space parts and customer care,extra value for customers.



Service Team

SGT has spreaded its branches around the globle for service.For the branches,you may find professionals from R&D,Engineering,Production,Commissioning and Marketing Departments to form a team of 30+ personnel for service.

The team has been working in line with project progression via collecting,analyzing problems and providing customers with continuously improved after service.The team fulfill the target of ''establish service icon,standarize service flow,normalize service work,refine service management.''
