Product Description
Starch Separation machine
Unload to anticipate the foundation of leave the scheming under three foot types of SGZ up, follow the international advanced technique of contemporary, adopt the all new design
Principle, according to new model of the provision but design manufacturing of the national GMP system medicine equipments.
1, baseless gearing, canceled the tradition hang type machine leg, simplify the gearing process, the structure is simple and direct, the features is beautiful
View, clean the convenience.
2, the equipments foundation flat panel go together with heavy and separate the choice of flap the machine type for entrust the German professional company to enter to act the mechanics and
Vibrate the mode analysis, design. High glue a type of one degree liquid damping to separate to flap the machine to make equipments because of vibrating the output energy all
Was separate to flap the machine absorption, have no vibration interference to the foundation ground and peripheral.
3, the equipments foundation flat panel for a work operation terrace, operate to support the convenience
Tacnical Parameter:
Item | Type | ||
LGZ800 | LGZ1000 | LGZ1250 | |
Revolving drum diameter (mm) | 800 | 1000 | 1250 |
Wall thickness of revolving drum(mm) | 8/10 | 10/12 | 12/14 |
Revolving drum volume(L) | 115 | 175 | 400 |
Maximum Charge limit(kg) | 155 | 250 | 530 |
Revolving drum speed(r/min) | 1200/1500 | 1000/1200 | 960/1100 |
Separating factor | 645/1008 | 560/806 | 645/770 |
Motor power(kw) | 7.5/11 | 11/15 | 18.5/22 |
External dimensions(length*width*height)(mm) | 1850*1450*2050 | 2000*1550*2150 | 2260*1765*2350 |
Machine weight(kg) | ≈2500 | ≈3500 | ≈5000 |

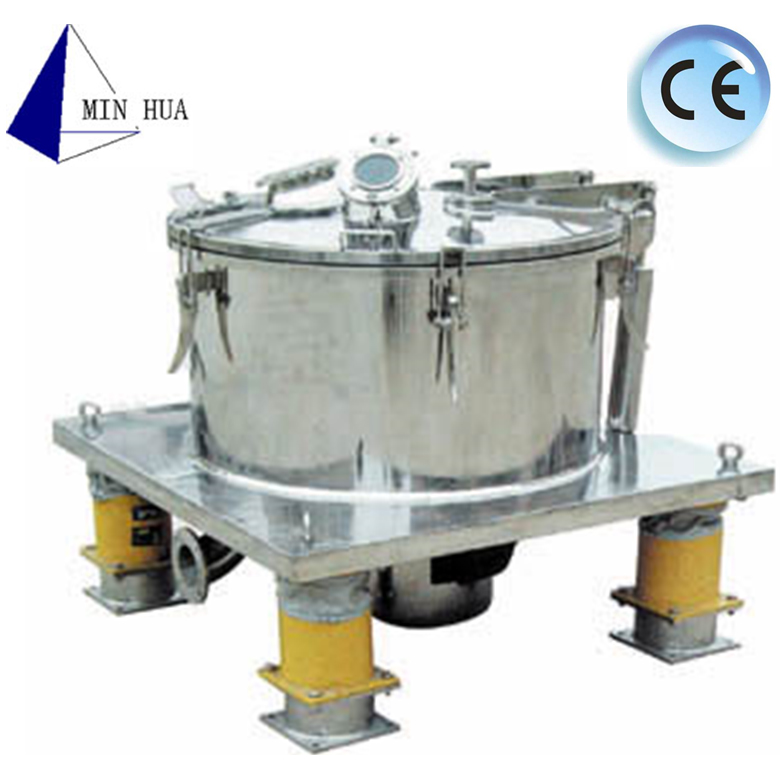

Product Pictures
