Main Application
The machine is widely used for material crushing in the industries of pharmaceutics, chemical and foodstuff, etc.
Working Principle
The machine uses the high-speed relative motion of the active fluted disc and the fixed fluted disc to impact and crush the raw matreial. The different size of granules can be acquired by changing different screen.The whole machine is designed according to GMP standard and is made of stainless steel. The machine has the advantages of simple structure, low energy consumption, easy cleaning and is an ideal crushing equipment.
| Model | 15B | 20B | 30B | 40B | 50B | 60B | 80B | 100B |
| Production capacity（kg/h） | 10-150 | 60-150 | 100-300 | 160-800 | 200-1000 | 250-1500 | 350-2000 | 500-3000 |
| Feeding size(mm) | <6 | <6 | < 8 | < 10 | <12 | < 15 | < 18 | < 20 |
| Fineness of products(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| Motor power(kw) | 2.2 | 4 | 5.5 | 11 | 15 | 22 | 30 | 37 |
| Spindle speed(r/min) | 6000 | 4500 | 3800 | 3400 | 3000 | 2800 | 2400 | 2000 |
| Overall dimension(mm) | 550*400*850 | 600*550*1250 | 700*600 *1450 | 900*800*1550 | 1050*850*1750 | 1100*900*1880 | 1200*950*2000 | 1350*1000*2100 |
| Weight(kg) | 150 | 280 | 340 | 450 | 550 | 670 | 900 | 1300 |
According to the different requirements of customers, we have other types of the grinder

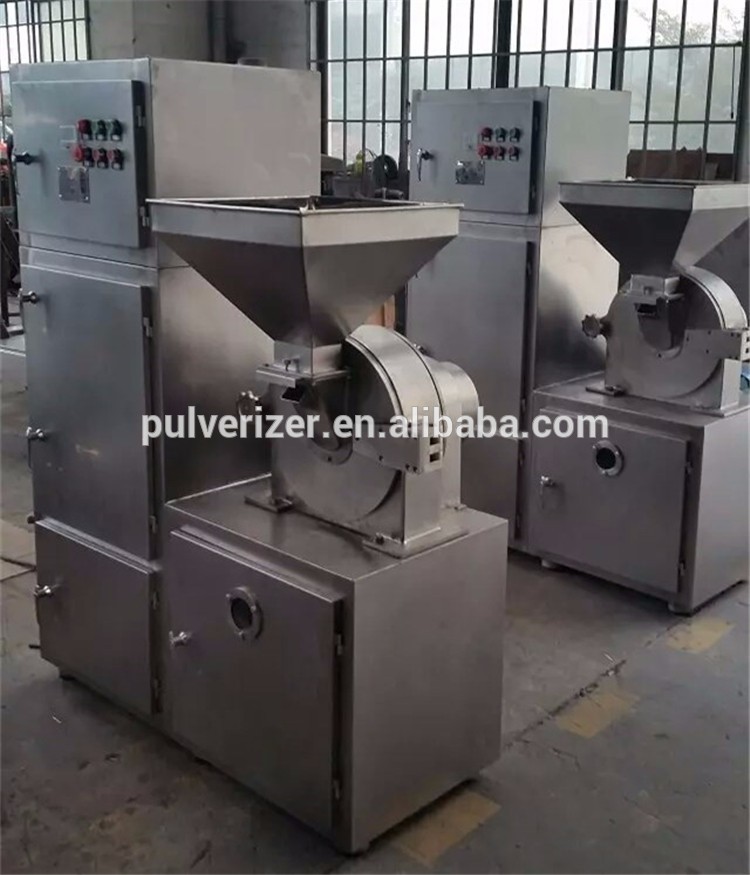

B Series Dust-collecting Universal Crusher

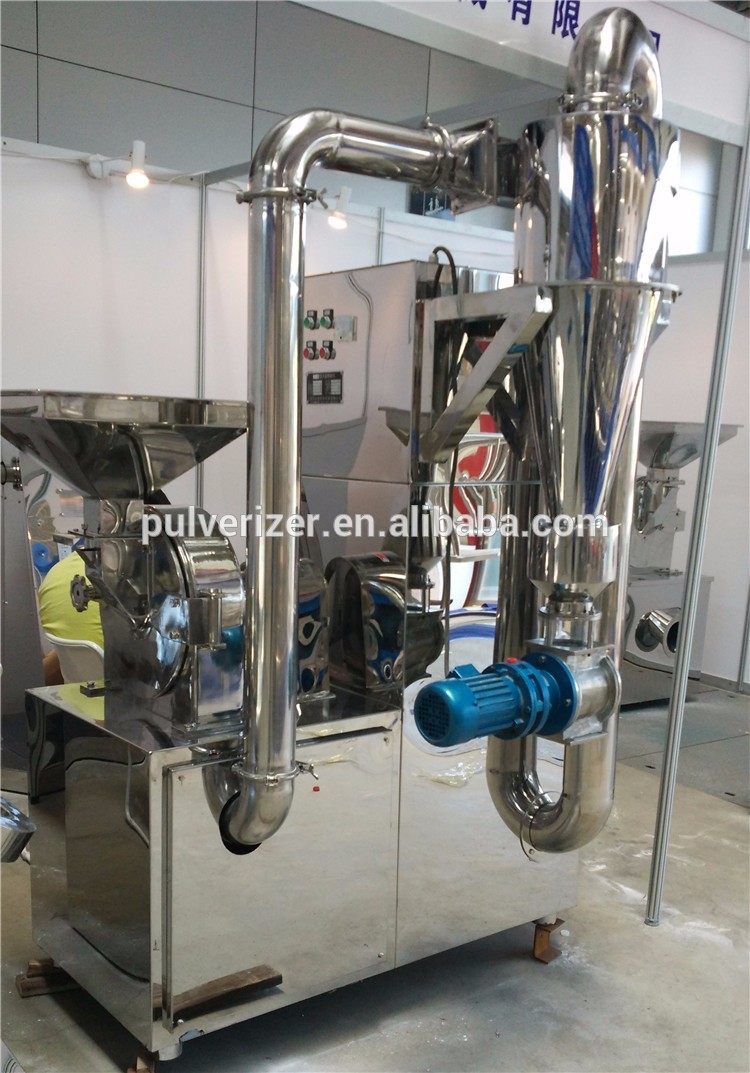

B Series Universal Crusher With Cyclone Separator(vertical)

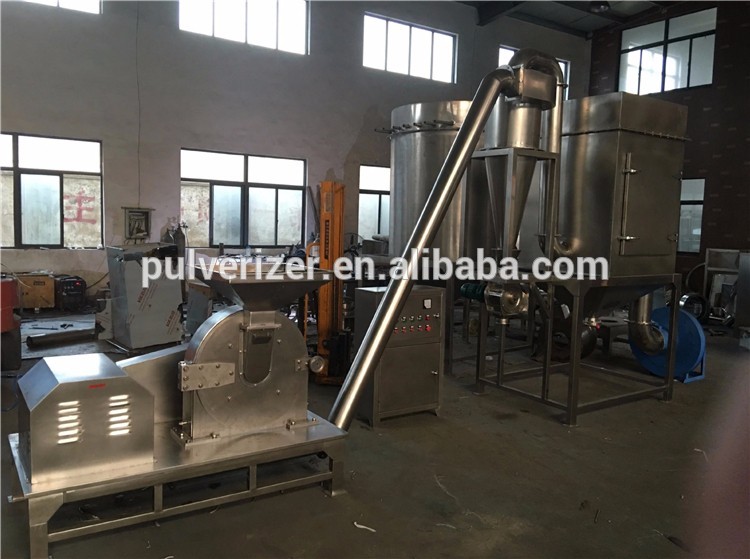

B Series Universal Crusher With Cyclone Separator(horizontal)
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) With water cooling jacket around grind chamber.
3) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| Packaging | |
| Size | It depends |
| Weight | It depends |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
| Packaging | |
| Size | It depends |
| Weight | It depends |
| Packaging Details | If machine is big, we will fix the machine inside container with steel wires and nails.Machine won't move inside the container. |

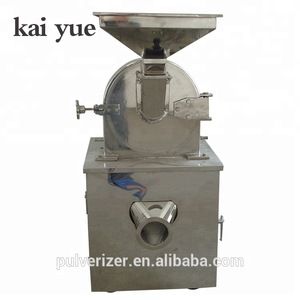

Universal crusher
fine powder grinder

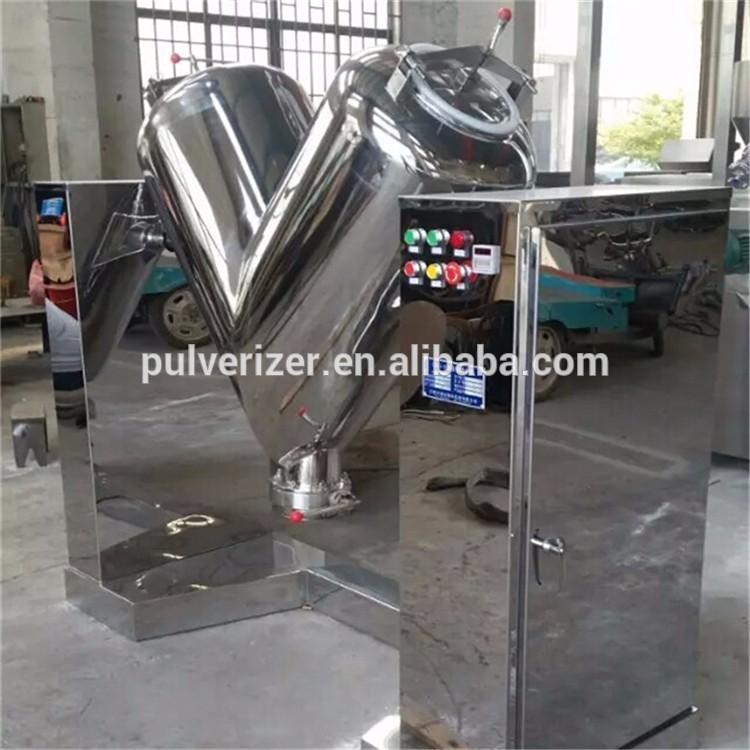

V shaped mixer
mix powder and particles

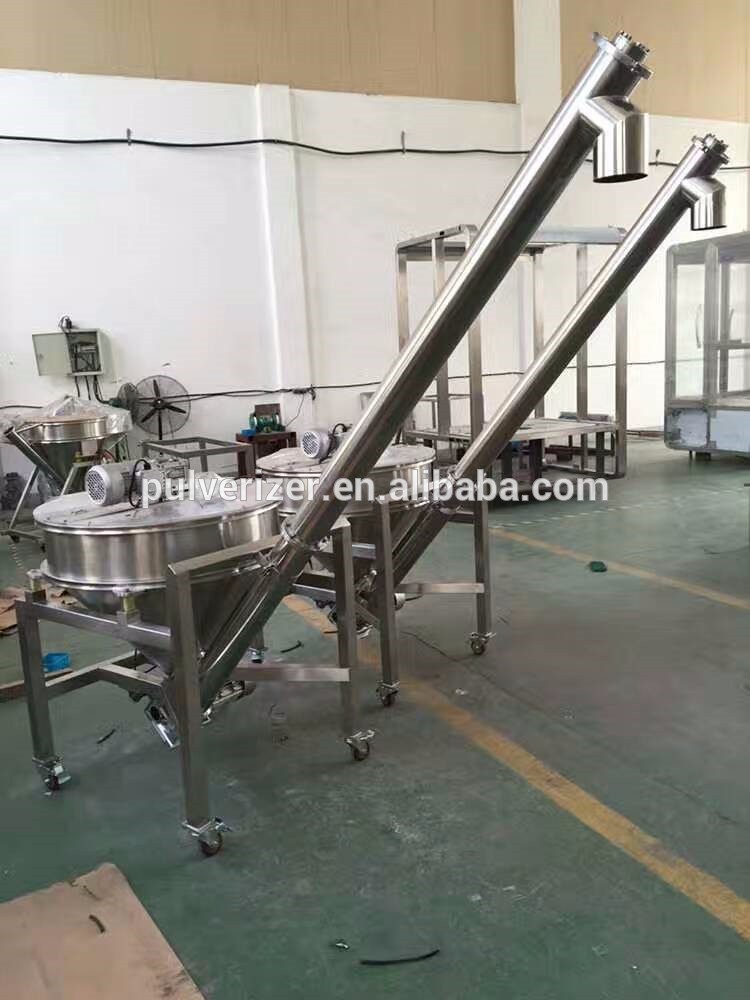

Screw conveyer
