ss screw press juicer with stainless steel grater-filter/commercial professional wheat grass juicer/single gear juicer
1.Feature of ss screw press juicer with stainless steel grater-filter
| 1 | This machine is composed of front support, feeding entrance, spiral, filter, juice container back support, dregs outlet. The spiral is supported by rolling beating at one end, and by hard wheel beating at the other end. |
| 2 | The spiral is driven by drive motor through a pair of pulley. |
| 3 | Gradually, the minor diameter increase and meanwhile the pitch decrease. So when the fruit are fed in and driven by the spiral, the red cement of the space between the axle and the inside wall results to the press on the fruits. |
| 4 | The juice flew into the juice container at the bottom while the dregs are let out through the annular space between the spiral and pressure-adjusting cone, when the gap decrease and the dregs rate will reduce. But when the volume of the gap is too small, granular of dregs will be extrude through the filter with juice. So the magnitude of the gap depends on the demand of client’s cleaned on technology. |
2.Main structure principle(ss screw press juicer with stainless steel grater-filter)
The main component is to nuclear pulp, juice, leather through a pipe into the spiral juice machine, by screw, screw diameter along the bottom slag is expected to export direction
gradually increase and pitch gradually reduce, when the material being spiral propulsion
for spiral cavity volume shrinking, form for material crushing. Screw spindle rotation direction from the feed hopper to slag trough direction, as the clockwise direction. Raw material add to the feed hopper, under the propulsion of spiral compression, the squeezing the juice through a filter at the bottom of the gravy, while the waste and the conical part of the surge tank by screw formed between the annular gap discharge, pressure regulating head along the axial movement of adjustable gap size. From the slag trough of equipment used in clockwise (to the feed hopper depending on the rotation handwheel bearing seat, regulating the head to the left, the gap is narrowing, conversely gap bigger.) Change the size gap, changing the resistance of slag discharge, can change the rate of slag, but if the gap is too small, the strong pressure, part of
slag particles with juice by filter out, although the juice increased, but the quality of juice relative decline, the size of the gap should be depending on the user's specific technical requirements. Achieve the goal of separatingjuice and residueautomatically.
3.Application of our ss screw press juicer with stainless steel grater-filter :
| 1 | Applied in juicing fruits(apple, pineapple,orange, pear, limon,strawberry, mulberry, blueberry, grape, kiwi and so on)and vegetables(carrot, tomato, celery, garlic, ginger and so on). |
| 2 | Spiral propelling and extruding. |
| 3 | Procedures such as juicing and residue discharging of berries, pome fruit and vegetables are completed automatically. |
| 4 | The screw ss screw press juicer with stainless steel grater-filter parts that contact materials are made of high quality stainless steel. |
| 5 | This screw ss screw press juicer with stainless steel grater-filter’s range is very wide. The space between screw and cylinder can be adjusted according to different material extracted. |
| 6 | Less electricity consumption, less noise, high efficiency, easy to move. |
4.Specification of our ss screw press juicer with stainless steel grater-filter :
| Model | NT-500 | NT-1000 | NT-1500 | NT-2500 |
| Capacity | 500kg/h | 1000kg/h | 1500kg/h | 2500kg/h |
| Power | 1.5kw | 2.2kw | 4kw | 11kw |
| Screw diameter | 87.5mm | 120mm | 175mm | 220mm |
| Filter diameter | 0.6mm | 0.6mm | 0.6mm | 0.6mm |
| Mainshaft speed | 400rpm | 400rpm | 400rpm | 400rpm |
| Feeder size | 0.25m*0.25m | 0.35*0.35m | 0.45m*0.45m | 0.5*0.5m |
| Machine size | 1250*500*1100 | 1450*500*1250 | 1600*500*1350 | 1980*680*1620 |
| Weight | 105KG | 175kg | 250kg | 480kg |
5.Products show of our ss screw press juicer with stainless steel grater-filter :

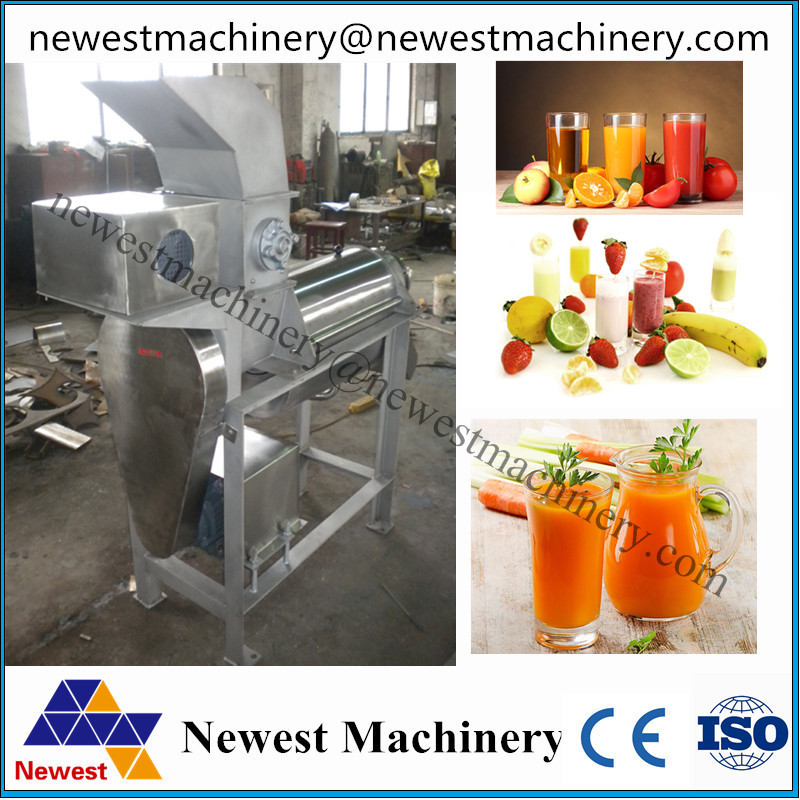

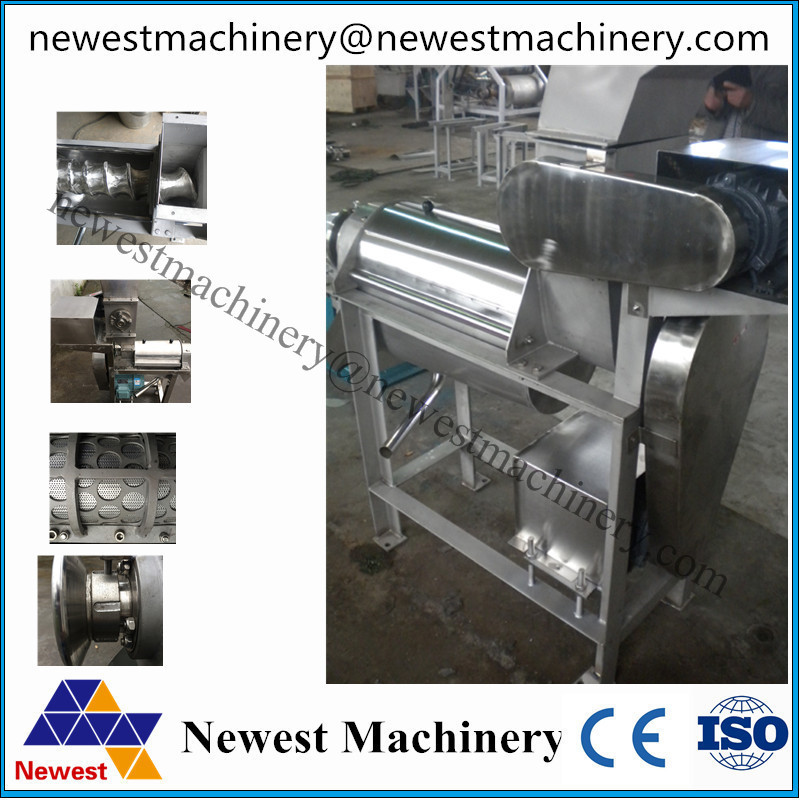

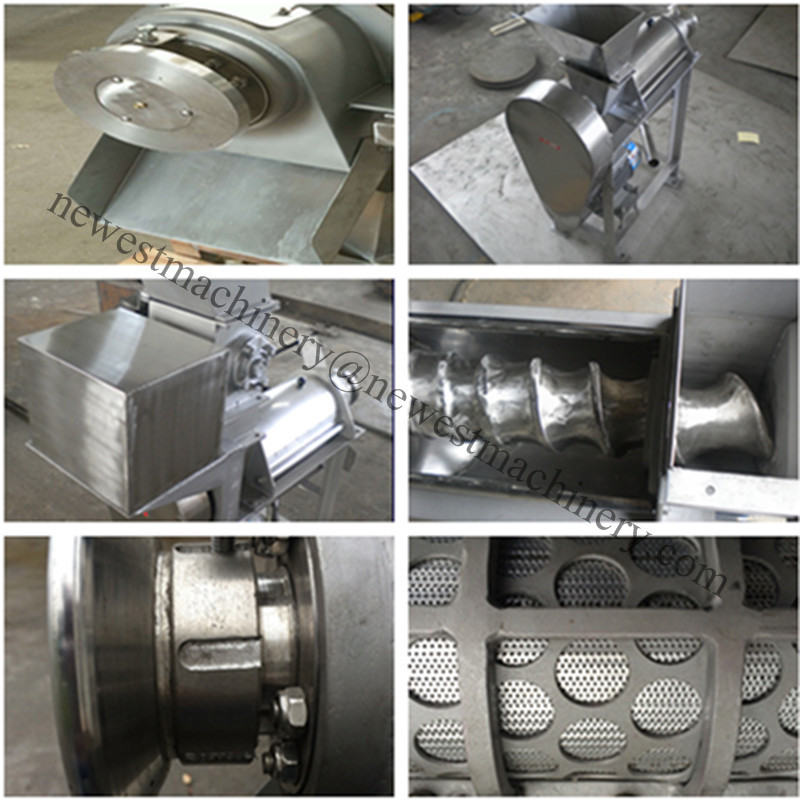

6.The crusher and ss screw press juicer with stainless steel grater-filter Deail (ss screw press juicer with stainless steel grater-filter)

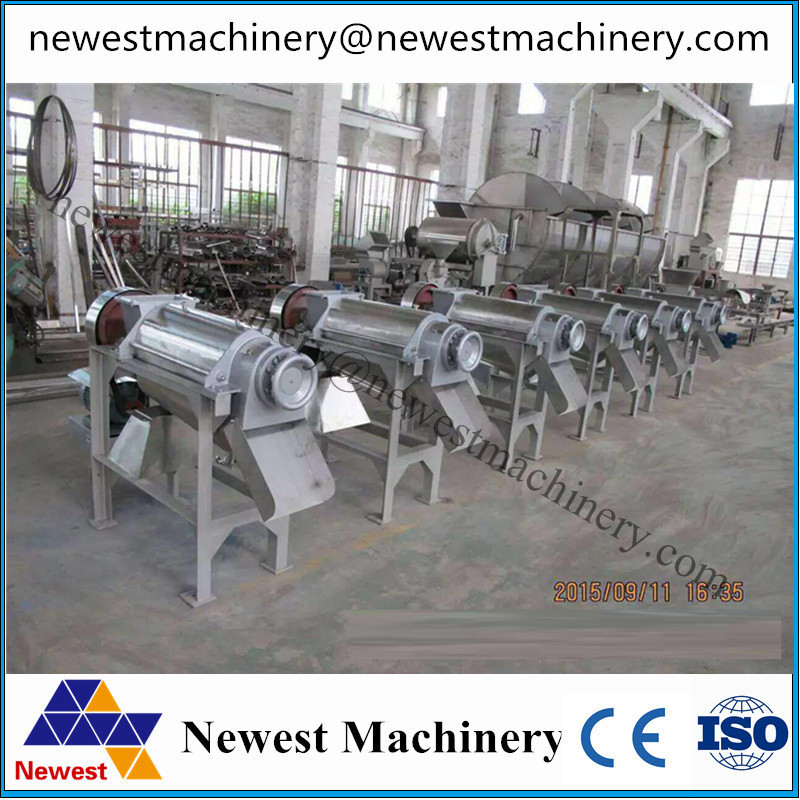

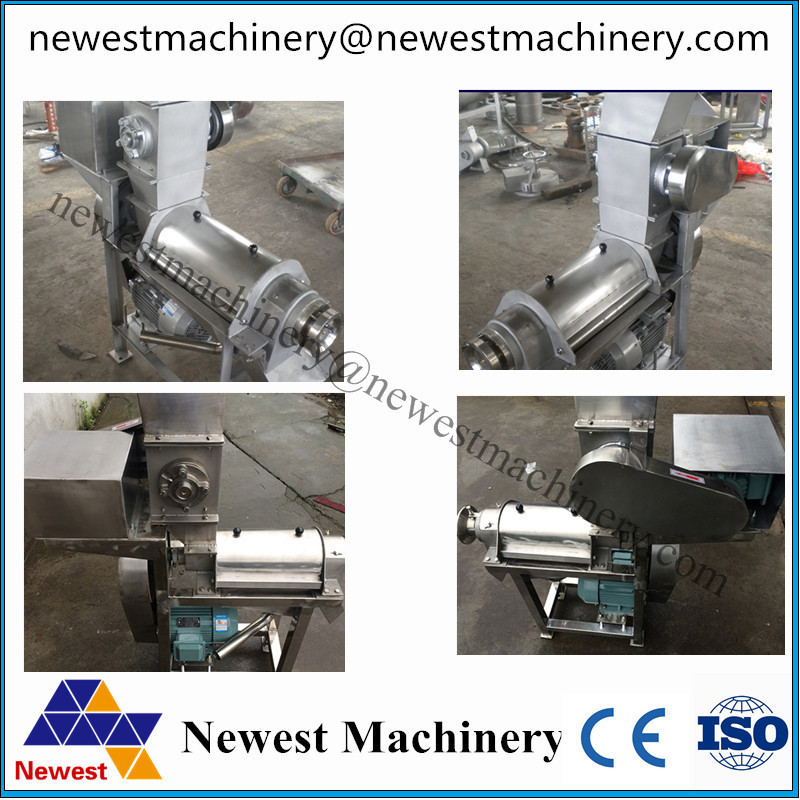

7.The other photo of ss screw press juicer with stainless steel grater-filter

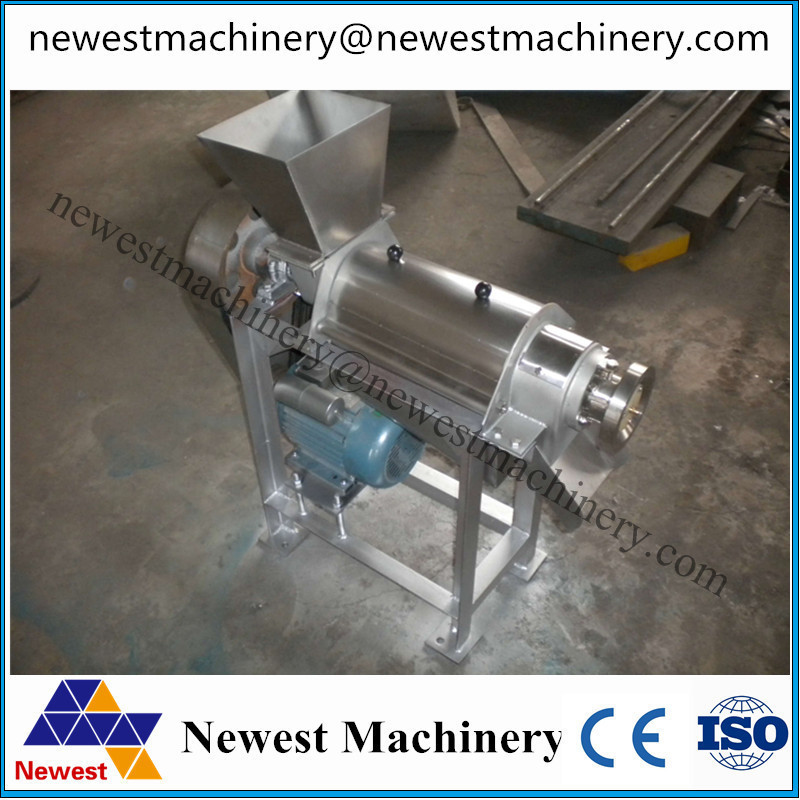

8.The final product ss screw press juicer with stainless steel grater-filter
9.The pakcing of ss screw press juicer with stainless steel grater-filter
