TQSX series gravity classified stoner

 Suction style specific weight stone remover is mainly used in foodstuff or feedstuff plants. The stone remover is able to remove stone from grains, wheat, rice, beans, corns, sesames, rapeseeds and malts as well as other granules such as chemical plastic

Technical Feature

  • Vibration motor driving gears
  • stable operation
  • sturdy
  • reliable
  • steady performance
  • low vibration and noise
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~50000

PRIMARY PARAMETERS

Brand name
Green Dragon
Application
Grain
Process input material
Rice, wheat
Process output material
-
Place of origin
China
Equipment material
SS & CS
Power (kW)
Depends
Weight (kg)
Depends
Outer dimension (mm)
Depends
Warranty
One year
Delivery
30 days
Main spare parts
-

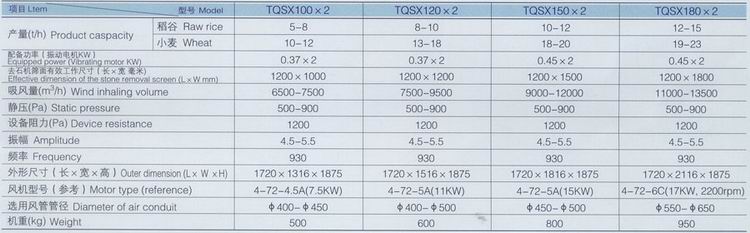

MODEL SPECIFICATIONS

Model TQSX100*2 TQSX120*2 TQSX150*2
Capacity(t/h) Rice 5-8, Wheat 10-12 Rice 8-12, wheat 13-16 Rice 10-15, wheat 16-20
Equipped power(kw) 0.37*2 0.45*2 0.45*2
Dimension of removal screen(mm) 1200*1000 1200*1200 1200*1500
Wind inhaling volume 6500-7500 7500-8500 9000-12000
Static pressure(Pa) 500-900 500-900 500-900
Suction pressure(Pa) 1200 1200 1200
Outer dimension 1720*1316*1875 1720*1516*1875 1720*1816*1875
Motor type(reference) T4-72 4.5A (7.5kw) T4-72 5A (11kw) T4-72 5A (15kw)
Diameter of air conduit ø400-450 ø400-500 ø400-500
Weight(kg) 500 600 800

DETAIL DESCRIPTION


TQSX series gravity classified stoner


Suction style specific weight stone remover is mainly used in foodstuff or feedstuff plants. The stone remover is able to remove stone from grains, wheat, rice, beans, corns, sesames, rapeseeds and malts as well as other granules such as chemical plastics. It is ideal equipment in modern foodstuff processing.

Utilizing the property that the grains and the mixed stone have different specific weight and suspension speed as well as the airflow that is blown upward through the grains, the machine keep the heavy impurity at the lower layer and uses a screen to force the material and impurity to move in different directions, thus separating the two of them.

This machine employs vibration motor driving gears, which ensures stable operation, sturdy and reliable work, steady performance and low vibration and noise. There's no powder and it is easy to operate and to provide maintenance to it. The wind magnitude and wind pressure can be easily adjusted in a wide range with a displaying device available.

A well-illuminated air suction hood is equipped, which ensures clear observation of the movement of materials. Besides, on both sides of the screen there are four holes available that make cleaning easy. The inclination angle of the screen can be adjusted within a scope of 7-9. Therefore, this machine stone is able to maintain stone-removing effect even the amount of material fluctuates. It can be used to remove the mixed stones in foodstuffs, grease, feedstuffs and chemical products.
