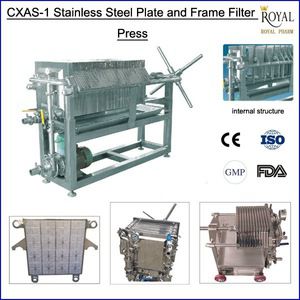

CXAS-1 Stainless Steel Plate and Frame Filter Press

It gains five state patents and national invention silver prize.

Technical Feature

  • New
  • Automatic, Automatic
  • Zhejiang, China (Mainland)
  • Hangzhou Royal
  • BAS-1
  • 380V/400V/440V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~1

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic, Automatic
Place of Origin
Zhejiang, China (Mainland)
Brand Name
Hangzhou Royal
Model Number
BAS-1
Voltage
380V/400V/440V
Power(W)
2.2-7.5
Weight
0.2-2T
Certification
ISO/SGS/BV/GMP/CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
material
SS304/316l
area
0.4-20
layers
13-75
application
pharmaceutical, fruit
Pressing Modle
Hydraulic,Automatic,Mechanical
filter pressure
0.2-0.4

DETAIL DESCRIPTION





CXAS-1 Stainless Steel Plate and Frame Filter Press

Introduction:                                                                                             Royal Pharm

This product is awarded Silver Medal in The Eighth China Invention Exposition



Yongquan Brand Model CXAS-1 stainless steel plate and frame filter press adopts 304 or 316L superior stainless steel materials for the manufacture.  It is the first updating and upgrading product in China.  It can only be produced by this factory with unique appearance design, novel internal structure, strong anti-corrosion performance, fine durability, long service life.  Its function will be doubled after use.  This product reaches the advanced international level.  It can replace for the imported equipments.  The sound when the machine runs is lower than 80Db(A).  It is an ideal device for GMP and CGMP Attestation.  It gains five state patents and national invention silver prize.



Characteristics:

1.High efficiency: double pipe input structure, protuberant point deign filter board highly increases the liquid working sectional area. Compared to similar machine, we can increase the filtrate efficiency doubly.

2. Very good sealing: All the parts are installed with silicone rubber, when work, there will be no leak.

3. Remove bacterial: when use middle-speed filter paper and tiny-hole filter film as filter medium, can remove bacterial well.

4. Easy to take-down: The whole machine structure is very easy to take-down, use snap ring to join, easy to clean and take-down.

5. Easy to adjust: According to different production technology of products requiments (first-filter, half extractive filter, extractive filter), you can adjust the frame, board and filter medium of the filter machine. Also you can increase or reduce the frame, board and filter medium according to the flow of the liquid.

6. Can filter high viscidity liquid.7. Meet the sanitation requirement: Use sanitation septum pressure gauge, septum ball valve, the whole machine meets the requirement of sanitation.

8. Prolong the use life of the filter materials: protuberant point deign filter board can help the filter materials (such as filter film, filter paper) not easy to break. This can prolong the use life of the filter materials well.

9. Improve the stability of the liquid capacity: protuberant point deign filter board make the liquid can flow to any direction well. This make the liquid can keep their own capability well.

10. It is very easy to clean the filter materials. This machine has automaticcircumfluence equipments. When pump stops running, open circumfluence valve, then all the sediments will come out automatically. At the same time, use clean water to flush filter materials circumfluence. Then can clean well.





Technical parameters:                                                                             Royal Pharm

Model

Filter area (m²)

Filter board size

(mm)

Filter frame size

(mm)

Machine size

(mm)

Machine weight

Kg

Layers

Water flow t/h

Filter pressure

Mpa

Pump motor power

Kw

CXAS

0.4

176×176

200×200

700×330×650

75

13

3

0.2

0.75

CXAS

1

268×268

300×300

900×460×870

190

17

7

0.2

1.5

CXAS

2

352×352

400×400

1100×560×960

300

19

9

0.3

2.2

CXAS

4

352×352

400×400

1500×560×960

450

35

11

0.3

3

CXAS

6

402×402

450×450

2200×680×1180

680

39

14

0.4

3

CXAS

8

402×402

450×450

2400×680×1180

790

53

17

0.4

4

CXAS

10

402×402

450×450

2600×680×1180

920

65

20

0.4

4

CXAS

12

402×402

450×450

2800×680×1180

1200

77

22

0.4

5.5

CXAS

14

402×402

450×450

3000×680×1180

1500

89

26

0.4

5.5

CXAS

18

528×528

600×600

2800×780×1200

1900

67

28

0.4

7.5

CXAS

20

528×528

600×600

3000×780×1200

2300

75

33

0.4

7.5

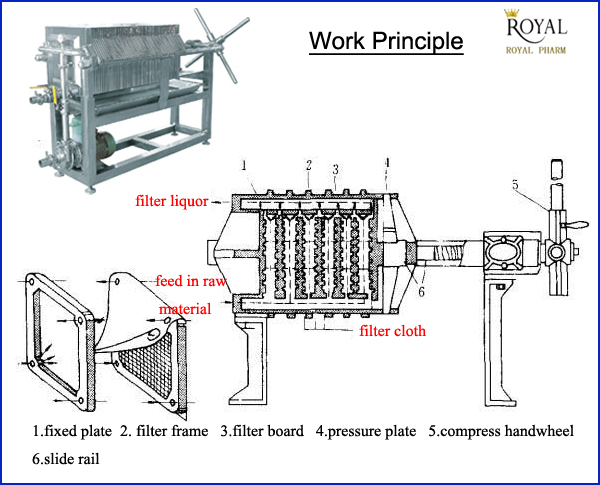

Work Principle:                                                                                      Royal Pharm

CXAS-1 stainless steel plate and frame filter press adopts 304 or 316L superior stainless steel materials for the manufacture, have novel internal structure, strong anti-corrosion performance, fine durability, long service life.  The whole machine is a case and multi-layer structure. Use double pipes for input liquid, this can double the flow. The protuberant point deign filter board make the sectional area much bigger. Use silicone rubber to seal all the parts that need sealing, and make sure there is no leak. In the joint of the input pipe and pump use snap ring to join, good sealing and easy to take-down and clean. There is auto circumfluence pipe, which can exclude the impurities and rest liquid automatically.



Main Uses:                                                                                               Royal Pharm

This machine can be used for the filtration, clarify, purification and removing bacterial of liquid products. It meets GMP standard. It is suitable for medical, food, drink, petro-chemical, fine daily chemicals, paint, grease, brewing etc.

It is suitable for the filter media such as the multiple filter cloth, filter plates, filter film. It is for various accuracy and grade purification and filter crafts and technology to various matter liquids. The filter materials can be repeatedly used for many times. The cost is low.

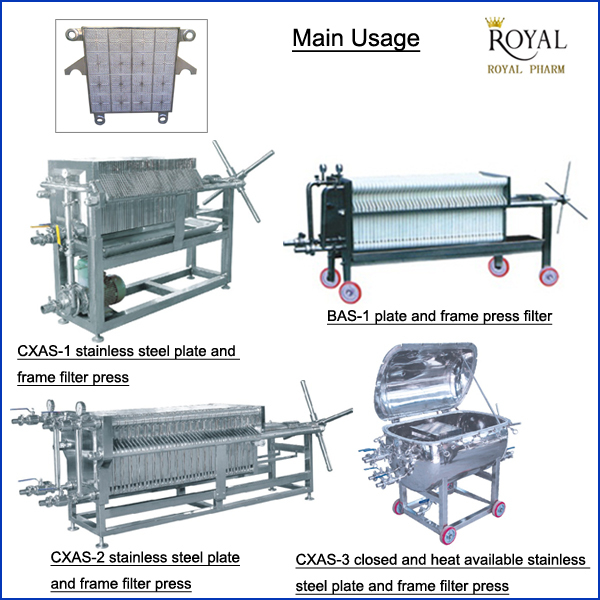

Main Types:                                                                                            Royal Pharm

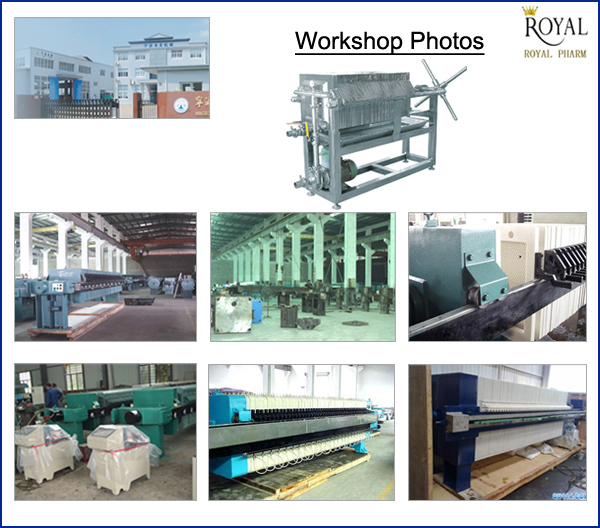

Our Workshop:                                                                                         Royal Pharm
