LPG-5 High Speed plant lab spray drying equipment

For this reason,the particle size and distribution of the final products,residual water contents,mass density and the particle shape must meet the precise standard,spray drying is one of the most desired technologies.

Technical Feature

  • New
  • Spray Drying Equipment
  • Jiangsu, China (Mainland)
  • JSMachine
  • LPG-5
  • 380V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
Jiangsu, China (Mainland)
Brand Name
JSMachine
Model Number
LPG-5
Voltage
380V
Power(W)
9kw
Dimension(L*W*H)
1.6*9.1*1.75m
Weight
1000kg
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Centrifugal Spray Dryer
LPG-5

DETAIL DESCRIPTION

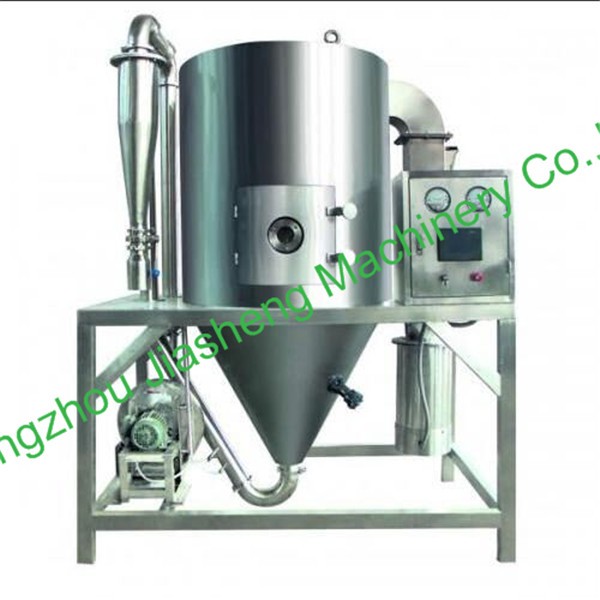

LPG-5 High Speed plant lab spray drying equipment

Product Description

Spray drying is the most wide applied process in liquid process shaping and drying industry.The drying technology is most suitable for producing solid powder or practical products from liquid material,such as :solution,emulsion,suspension and pumpable paste states.For this reason,the particle size and distribution of the final products,residual water contents,mass density and the particle shape must meet the precise standard,spray drying is one of the most desired technologies.

Main Principle:

After air gets filtered and heated,it enters into an air distributor on the top of the dryer.The hot air enters into the drying room in a uniformly spiral form.Passing through the high speed centrifugal sprayer on the top of the tower,the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Through a very short time of contacting the hot air,materials get dried.The final products discharge continuously from the bottom of the drying tower and from the cyclones.The waste gas will be discharged from blower.

Feature:

High drying speed atomizes material into liquid,the surface of the material increase greatly.It only takes few seconds to evaporate 95-98% water in a hot air flow.This is especially suitable for drying the heat sensitive materials.

The final product has features of good uniformity,flow ability,and solubility.It is in a high purity and quality as well.

The production procedure is simple,operation and control are easy.For material contains 40-60% water(special material can contain more than 90%),it can be dried into powder or particles once a time.After the drying process,there is no need for smashing and sorting,so as to reduce the operation procedures in the production and to enhance the product purity.The product particle diameters,losseness and water contents can be adjusted through changing the operation condition whining a certain range.It is very convenient to carry out control and management.

Nowadays, Changzhou Jiasheng Machinery Co.,Ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.

Model

LPG-5

LPG-25

LPG-50



max evaporated zmount
   pf mousture(kg/h)

5

25

50



spray type

hing speed
centrifugal
atomizer

hing speed
centrifugal
atomizer

hing speed
centrifugal
atomizer



revolution of atomizer

25000

18000

18000



diameter of atomizer

50

120



diameter of tower

0.9

1.75

2.3



power of electric heating(kw)

9

31.5

steam+18



heating source(kw)

electric,steam
 electric and
oil fuel,gas
fuel,hot air
furnace

electric,steam
 electric and
oil fuel,gas
fuel,hot air
furnace

electric,steam
 electric and
oil fuel,gas
fuel,hot air
furnace



Overall size(L×W×H)

1.6×9.1×1.75

4×2.7×4.5

4.5×2.8×5.5



LPG-100

LPG-150

LPG-200

LPG-500

LPG-800-1000

100

150

200

500

800-1000

hing speed
centrifugal
atomizer

hing speed
centrifugal
atomizer

hing speed
centrifugal
atomizer

hing speed
centrifugal
atomizer

hing speed
centrifugal
atomizer

16000

16000

11000-13000

11000-13000

11000-13000

150

by craft

2.7

3

3.2

4.7



steam+36

steam+54

by craft

electric,steam
 electric and
oil fuel,gas
fuel,hot air
furnace

electric,steam
 electric and
oil fuel,gas
fuel,hot air
furnace

electric,steam
 electric and
oil fuel,gas
fuel,hot air
furnace

electric,steam
 electric and
oil fuel,gas
fuel,hot air
furnace

electric,steam
 electric and
oil fuel,gas
fuel,hot air
furnace

5.2×3.5×6.7

7×5.5×7.2

7.5×6×8

12.5×8×10

by site
condition design layout
