Chemical better spray freeze drying equipments

Shanghai R&D Center, Jiangnan University, China Agricultural University, Zhejiang University, Tongji University and Huazhong University of Science and Technology,and exported to over 30 countries and regions such as the United States, Italy, South Korea,

Technical Feature

  • New
  • Spray Drying Equipment
  • Shanghai, China (Mainland)
  • yacheng
  • yc-015
  • 220V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$6~7

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
Shanghai, China (Mainland)
Brand Name
yacheng
Model Number
yc-015
Voltage
220V
Power(W)
3.5kw
Dimension(L*W*H)
1200*650*550mm
Weight
110kg
Certification
CE certification
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Maxmum capacity range
1500-2000ml/h
Minimum Capacity range
30-50ml/h
collagen lab spray dryers nozzle
SUS 316 stainless steel
Nozzle's Diameter
0.5mm/0.7mm/0.75mm/1.0mm/1.5mm/2.0mm(optional)
Material body
SUS 304 stainless steel
Dryer time
1.0-1.5S
Power
3.5KW 220V
Precision Temperature
u00b11u2103
Inlet Temperature
30~300 u2103
Outlet Temperature
30~140 u2103

DETAIL DESCRIPTION

Product Detail

PRODUCT DETAIL

YC-015 Lab Spray dryer(mini spray dryer) have been applied by over 2,500 domestic customers of first class universities, enterprises and research institutes including AMSS Institute of Systems Science, Tsinghua University, Shanghai Jiao Tong University, South China University of Technology, Wuhan University, Tongrentang, Xiehe Pharmaceutical, Bright Dairy, Hong Kong Polytechnic University, Harbin Pharmaceutical Group, Strong Group, General Electric (GE) Shanghai R&D Center, Jiangnan University, China Agricultural University, Zhejiang University, Tongji University and Huazhong University of Science and Technology,and exported to over 30 countries and regions such as the United States, Italy, South Korea, Singapore, Canada, Malaysia, Chile ,Russia and so on, respecting reputation in view of good product quality.

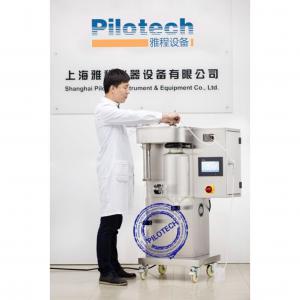

YC-015 lab spray dryer (mini spray dryer)is self contained and supplied complete and ready for immediate operation. All major components are housed within a stainless steel cabinet and the unit can be used on a bench top or with an optional stainless steel stand. The system was designed to be stand by a keyboard, conducted by a colorful crystal screen of touch guidance mode , and allowed two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process .











YC-015 lab spray dryer operating principle



PLC controller allows the selection of inlet temperature, airflow, automatic de-blocker frequency and pump speed. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber. At the same time an integral compressor pumps air into the outer tube of the jet which causes the liquid to emerge as a fine atomised spray into the drying chamber.

Heated air is blown through the main chamber evaporating the liquid content of the atomised spray. The solid particles of the material, which are normally in a free flowing state, are then separated from the exhaust air flow by a cyclone and collected in the sample collection bottle. The exhaust airflow is directed through a flexible 60 mm diameter hose direct to atmosphere or to an existing extraction system.

Product Parameters

PRODUCT PARAMETERS

YC-015 lab spray dryer technical parameter



1.   Automatic-mode and Eye-monitored mode for the purpose of easily controlling experimental process ,English interface.

2.       Evaporation rate of water at inlet temperature of 250ºC using Standard:Approximately 1500 ml/hour

3.       Air inlet temperature range 30ºC to250ºC

4.       Air outlet temperature range 30ºC to 140ºC

5.       Max. Sample feed: 1500ml/h

6.       Min. Sample : 30mL

7.    To assure accurate temperature control and easy parameter adjusting, YC-015 applies PID. Temp. Precision:±1℃, dry cycle time: 1.0-1.5S

8.      As standard a touch screen to display temperature, airflow volume, air pressure,pump speed and de-blocker frequency.

9.     standard with 0.7 mm jet and other sizes are available as accessories(0.5mm 1mm 1.5mm 2mm)

10.Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alk li, high temperature. It can work in a no-pollution and stable environment, and the whole process can be inspected. All the spare parts are easy to install and wash.

11.    Power: 3.5KW AC220V

12.    With cooling device for temperature-sensitive material  (optional)











YC-015 lab spray dryer applications



Spray drying can be used in a wide range of applications where the production of a free-flowing powder sample is required. This technique has successfully processed materials in the following areas:

Beverages • Flavours and Colourings • Milk and Egg Products • Plant and Vegetable Extracts • Pharmaceuticals • Heat Sensitive Materials • Plastics •  Polymers and Resins • Perfumes • Ceramics and Advanced Materials •

Soaps and Detergents • Blood • Dyestuffs • Foodstuffs • Adhesives • Oxides • Textiles • Bones, Teeth and Tooth Amalgam and many others. Most solutions and suspensions can be spray dried providing that the resulting product has the characteristics of a solid material.

Shanghai Pilotech Lab Spray Dryer  With firm grasp of domestic market advantage, Pilotech also vigorously (Model YC-015A lab spray dryer can be used for organic & water solvents, Model YC-1800 lab low temperature spray dryer can be used for thermo-sensitive materials and high carbohydrate compositions materials. Model YC-2000 lab vacuum spray dryer can be used for probiotics, enzyme and other thermo-sensitive materials. Model YC-3000 Lab spray freeze dryer is a new freeze dryer method which is faster than traditional freeze dryer. Model YC-1000 laboratory spray granulator (fluidized bed granulation) can be used for granulation and coating.)



Sr.no

Parameter

Pilotech YC-015 Mini Spray Dryer

1

Power

3500W

2

Voltage

220V,50/60 Hz

3

Atomizer material

SUS 316 Stainless steel

4

Evaporating Capacity

1.5 l/h for water

5

Airflow

0-330 m³/h

6

max. Input temperature

250°c

7

Heater power

3000W

8

Temperature precision

±1°c

9

Spray gas

4.2m³/h, 2-5bar

10

Nozzle jet

0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available)

11

Nozzle type

Two fluid nozzle

12

Possible particle size range

1-25µm

13

Mean Residence time

1.0-1.5 sec

14

Operation mode

Automatic/Manual

15

Max. Sample feed

2000ml/hr

16

Minimum sample volume

30ml

17

Spray chamber material

borosilicate glass

18

Cyclone separator material

borosilicate glass

19

Receiving tank material

borosilicate glass

20

Body material

SUS304 Stainless steel

21

Seal of cyclone/cylinder

Silicone

22

Compressor

Built-in oilless

23

Sound

<60db

24

Dimensions

750*650*1200mm

25

Weight

110KG

26

Display

7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency

27

Thermal protection

Blower does not stop until temp <90°c

28

Deblocking

Automatic

29

Inert loop (for organic solvents)

Optional





















Company Profile

COMPANY PROFILE

Production Show

PRODUCTION SHOW

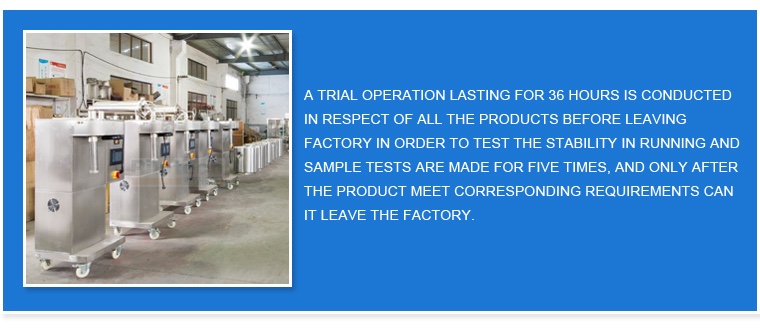

Quality Inspection

QUALITY INSPECTION SHOW

Certificate Show

CERTIFICATE SHOW

Our Customers

OUR CUSTOMERS

Our company's laboratory equipment is widely used by well-known universities in China such as Tsinghua University, Peking University Fudan University, Shanghai Jiaotong University, Hong Kong University of Science and Technology, Wuhan University, Huazhong University of Science and Technology, Sun Yat-Sen University, Zhejiang University and Nanjing University, and world-renowned companies like Coca-Cola and General Electric. It has more than 1,500 users in mainland China.

Package and Shipping

PACKAGE TRANSPORTATION

FAQ

Do all products have English operating interfaces and operating manuals?
 Yes, all our equipment has English operation interfaces, and if necessary, we are also able to provide the edition in the user's native language, and all products are available in English operating instructions; if necessary, we can also provide the user's desired language version. In addition, there are are operating videos for our products for the convenience of customers to use. Q:How is the after-sales service of your company?

How is the after-sales service of your company?
 We offer one-year quality guarantee for all the products, and for products within the warranty period, we provide free services for all damages not resulting from human beings. After the warranty expires, we will charge cost price only .

How is the stability and durability of your products?
 The company has been established for over 10 years, and our products have been adopted by 90 percent of colleges and universities in China. The earliest products are still used by customers at present; they are really durable. In China, before purchasing our equipment, many teachers in university will listen to the views of colleagues carefully. Pilotech's equipment is reputed for its good performance and stability, and numerous new customers are recommended by old customers.

As for the overseas market, what kind of policy does Pilotech have on dealers?


Pilotech welcomes dealers worldwide to sell our products, and we will provide dealers with strong technical support and competitive prices. Pilotech hopes to grow and develop together with distributors from different countries.
