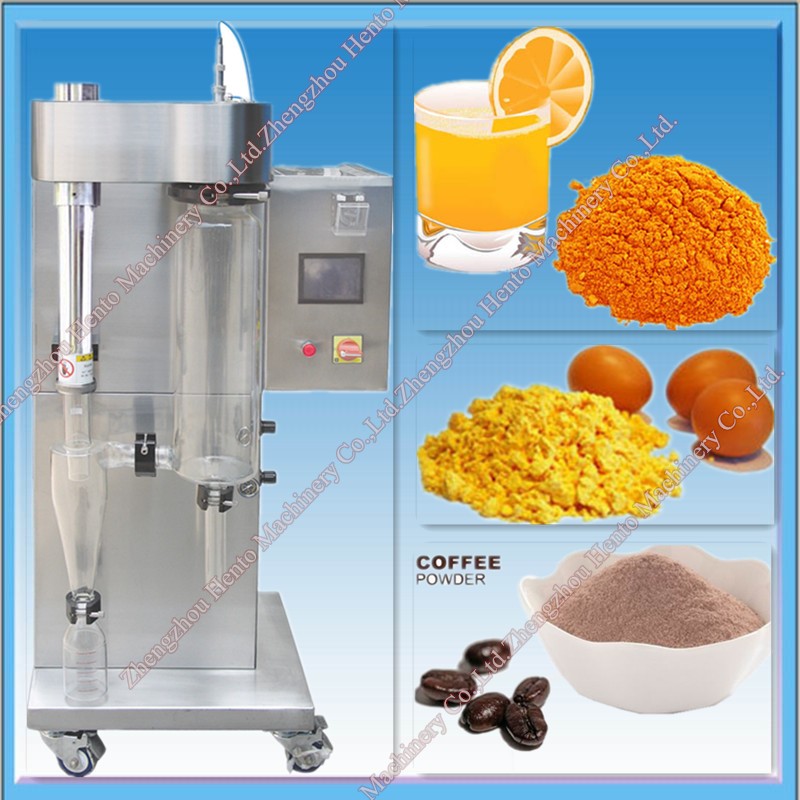

HENTO Spray Drying Machine / Gum Arabic Powder Spray Drying Machine
1.Machine introduction of Mini Spray Dryer:
Small-sized Spray Dryer Introduction The small-sized spray dryer is designed and manufactured by absorbing international advanced technology, whose design is compact and can be moved. The major components and electrical parts are imported from famous brands. It can be used without any auxiliary equipment, and the machine is a whole, portable, self-contained one. Moreover, it also adopts PLC controller and touch-screen display. It is mainly for processing the fluid of high liquidity.
1.Spray, drying chamber and collecting devices all adopt transparent high-quality glass, which is a kind of high-temp resisting, high-borosilicate glass material, to provide stable environment without pollution. All glass components are easy to disassemble and clean.
2.Visual process of spray drying experiment , easy to control and detect and solve problems timely.
3.Built-in imported oil-free air compressor; powder particles diameter is normally distributed with good liquidity and low noise which is less than 60 db, according with national standards for laboratory.
4.Two-fluid spray of atomized structure, made of stainless steel 316.
5.Adopt PID for the temperature controller with ±1℃ heating temperature control accuracy.
6.The feeding amount can be adjustable by peristaltic pump.
7.Jet device can automatically dredge (needle) and frequency can be adjusted. when the nozzle is blocked , the machine can automatically remove the obstacles in order to ensure the continuity of the experiment. 7. Automatic and manual modes, PLC control, color touch-screen display, all the parameters have a liquid crystal display (LCD).
8. With protection function, the heater will not work without the fan working.
9. Uniform granularity of the finished products. More than 95% of the died powder has the same particle size range.
10. When connected to the outer electric brake, the machine can be used without any auxiliary equipment.
2.Machine Application of Mini Spray Dryer:
1.The spray dryer is mainly for food, biology, beverage, chemical, medicine, etc for lab-use; widely used for all kinds of solutions such as emulsion and suspension liquids; and also suitable for drying heat-sensitive materials such as biological products, bio-pesticides, enzymes, etc.
2.Can be used to dry spices and pigments, polymer and resins, milk and egg products, plant and vegetable extracts, oxide, pharmaceutical synthesis, thermal plastic material, bone and tooth powder, aromatic agent, fragrances, blood products, biochemical products, dyes, soap and detergents, food adhesive,etc. 3.Applicable to these fields: colleges and universities, research institutes and micro-enterprise about laboratories development and production of micro-particles powder in food, biology, beverage, chemical, materials, pharmaceutical and other aspects.
3.Technical parameters of Mini Spray Dryer:
Model | HTO-RY-1500 |
Power Supply | 220v/50-60HZ |
Diameter of Nozzle | 0.5/0.7/0.75/1.0/1.5/2.0mm (can be customized) |
Water Evaporation Capacity | 1500-2000ml/h |
Drying Time | 1.0-1.5s |
Max Inlet Amount | 2000ml |
Min Inlet Amount | 30ml |
Inlet Temperature | 30°-280° |
Outlet Temperature | 30°-140° |
Weight | 110kg |
Size | 700*505*1500mm |
