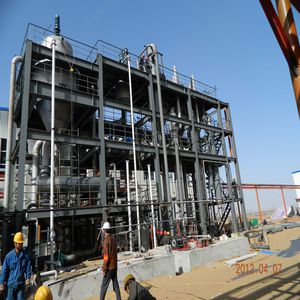

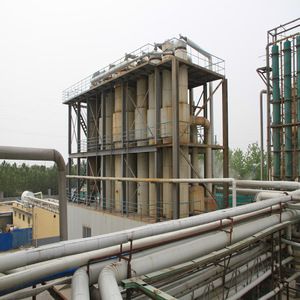

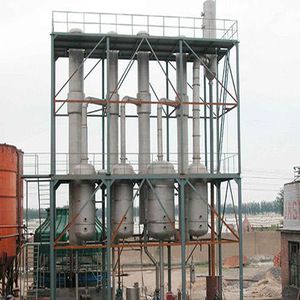

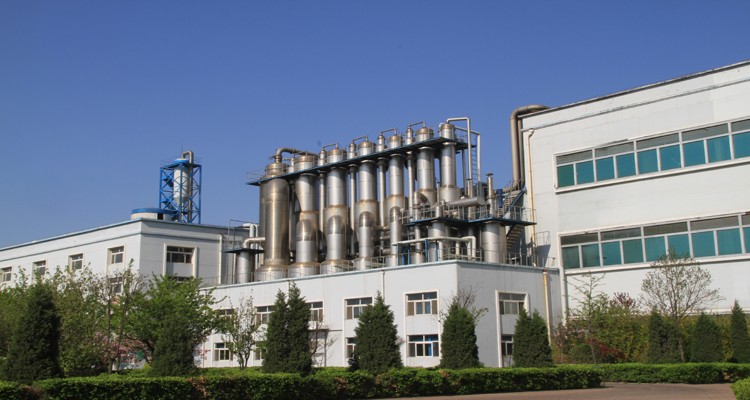

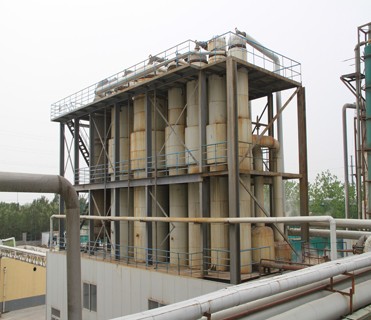

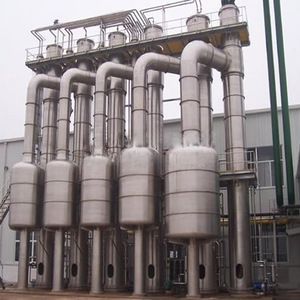

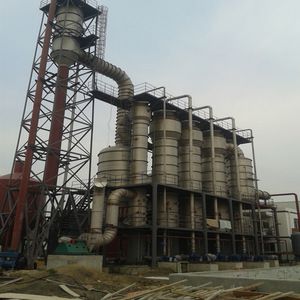

Multi effect falling film evaporator with falling film type evaporation principle will dilute solution of boiling water vaporizing part so as to achieve the pressure of concentrated solutions.The unit adopts continius production process, has the advanges of concentration ration(1/5-1/10), the wide range of viscosities (<400CP), good heat tranfer effect, capacity big, and is suitable for heat sensitive, high concentration, viscosity and corrosities materials evaporation for starch industry corn syrup, malt syrup, food industry juice and taste of semen, the dairy industry milk, suger industry of the juice and the acohol industry, the filtrate ofdistillers' grains concentration.
| Parameters/Specification | WTJM-3.0 | WTJM-3.0 | WTJM-9.0 | WTJM-15 | WTJM-20 | WTJM-30 | WTJM-50 | WTJM-100 |
| Evaporation rate | 3000 | 6000 | 9000 | 15000 | 20000 | 30000 | 50000 | 100000 |
| Raw steam consumption | 900 | 1800 | 2700 | 4500 | 4500 | 9000 | 15000 | 30000 |
| First vacuum degree of each effect | 0 | |||||||
| Second vacuum degree of each effect | 448 | |||||||
| Third vacuum degree of each effect | 640 | |||||||
| First evaporation temperature | 99 | |||||||
| Second evaporation temperature | 76 | |||||||
| Third evaporation temperature | 53 | |||||||
| Vapor pressure | 0.6-1.0 Mpa | |||||||
| Inlet solid content | 6-7 | |||||||
| The solid content of the machine | 42-48 |
Main Features
1) Simple The unit has a larger heat transfer coefficient, small temperature difference of heat transfer.

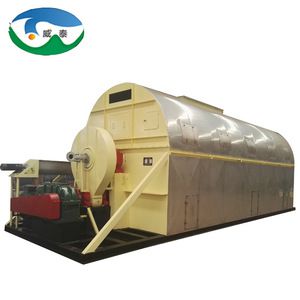

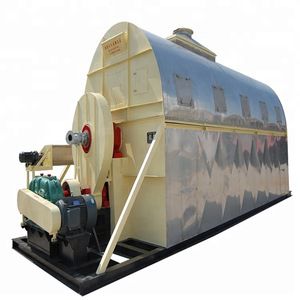

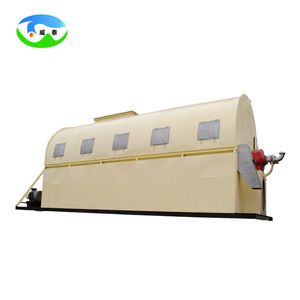

2) It could be used to bundle dryer or tray drying on the top of the waste steam.
Machine Parts
Name: Evaporator
Brand: WEITAI
Original: China
Domestic famous stainless steel, strong driving force, low fuel consumption, high economic benefits.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| Packaging | |
| Size | according to client's requestment |
| Weight | determined |

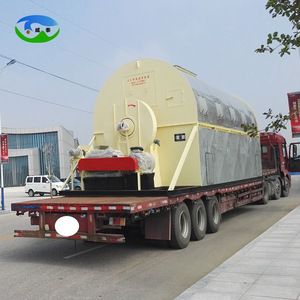

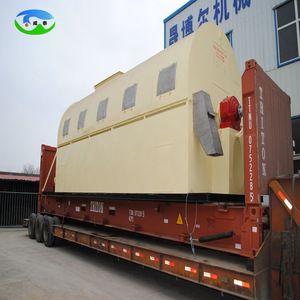

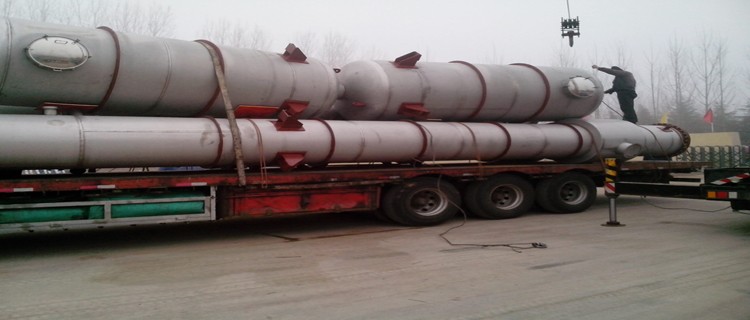

| Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How about price?
we are able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
Q:How long is your delivery time?
A: Generally it is 20-30 days if the goods are in stock. or it is 30-50 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below: Mobile +86 15053656233 or wechat 15053656233
