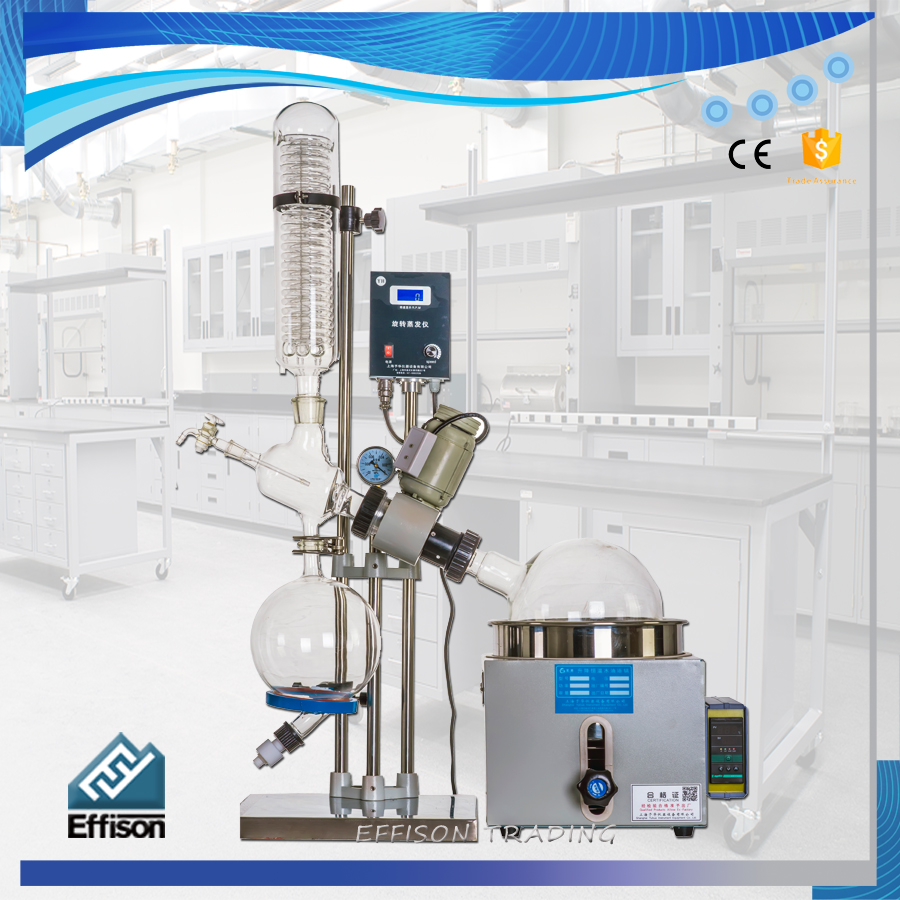

Multiple Effect Rotary Evaporator 10L for Laboratory
Rotary evaporator is mainly used for distillation and extraction. In the condition of normal/negative pressure, constant heating, by the theory of different boiling point of different liquid material, after distillation and collection to get your target solvent.
For example, by using rotary evaporator to get alcohol from a mixture of water and alcohol.
Rotary evaporator is widely applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades. For process like Concentration, Refining, Separation, Crystallization, drying, etc.
Specifications of rotary evaporator 10l:
| Model | RE-1005 | RE-1010 | RE-1020 | RE-1030 | RE-1050 | |
| Rotary Flask(L) | 5 | 10 | 20 | 30 | 50 | |
| Receiving Flask(L) | 3 | 10 | 10 | 20 | 20 | |
| Host governor | Stepless speed regulation. | |||||
| Rotating Speed(rpm) | 0-120rpm | |||||
| Rotating Power(W) | 250W | |||||
| Bath | Stainless Steel, Water: RT~99℃, Oil: RT~180℃ | |||||
| Temperature precision | ±1℃ PID intelligence temperature control | |||||
| Vacuum Degree | ＜133Pa | |||||
| Evaporating Capability (L/Hour) | Water | 2 | 3.2 | 5 | 5 | 9 |
| Ethanol | 4 | 6.5 | 11 | 11 | 19 | |
| Lift | Electric Lift | |||||
| Power | 220V/50HZ(Explosion proof optional) | |||||
| Glass Material | High quality Borosilicate glass 3.3 | |||||
| External Dimension(mm) | 835*400*1090 | 990*550*1655 | 1165*600*1775 | 1345*770*2140 | 1345*770*2140 |
Main Features of rotary evaporator 10l:
1. Teflon(PTFE) and fluororubber dual spin seal, patented technology to ensure the high vacuum.
2. Accurate and reliable temperature control system,.
3. On the premise of not affecting the vacuum and solution distillation, continuous receiving allowable.
4. PTFE emptying valve, corrosion-resistant without any pollution.
5. Including two types: regular type and explosion-proof type, which can be adopted based on the experimental environment.

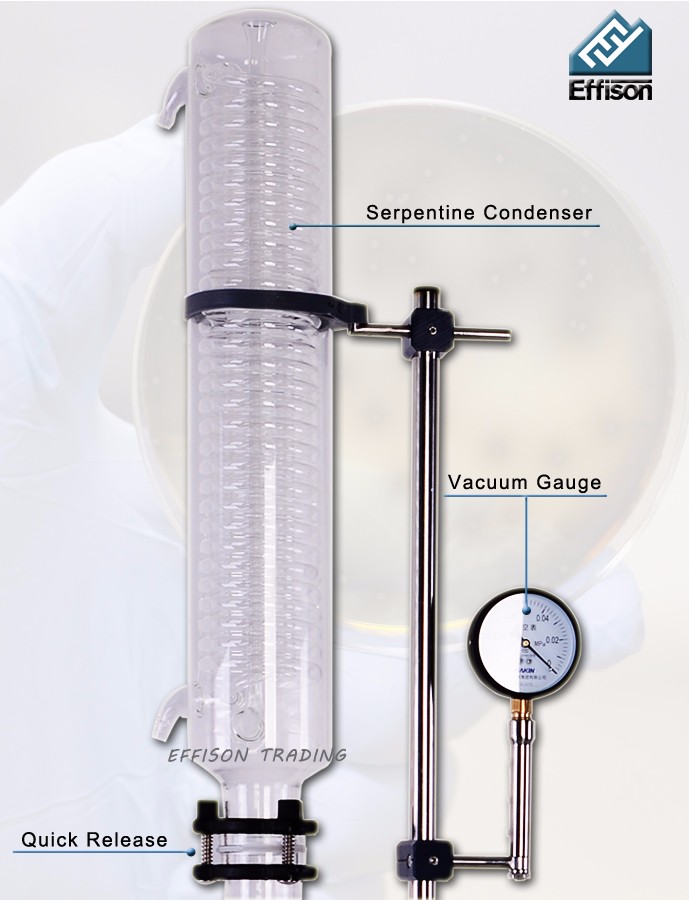

Condenser.
High precision vacuum seal and vapor tube design leads to ultimate vacuum performance (1 mbar end vacuum, < 1 mbar/min vacuum leakage).

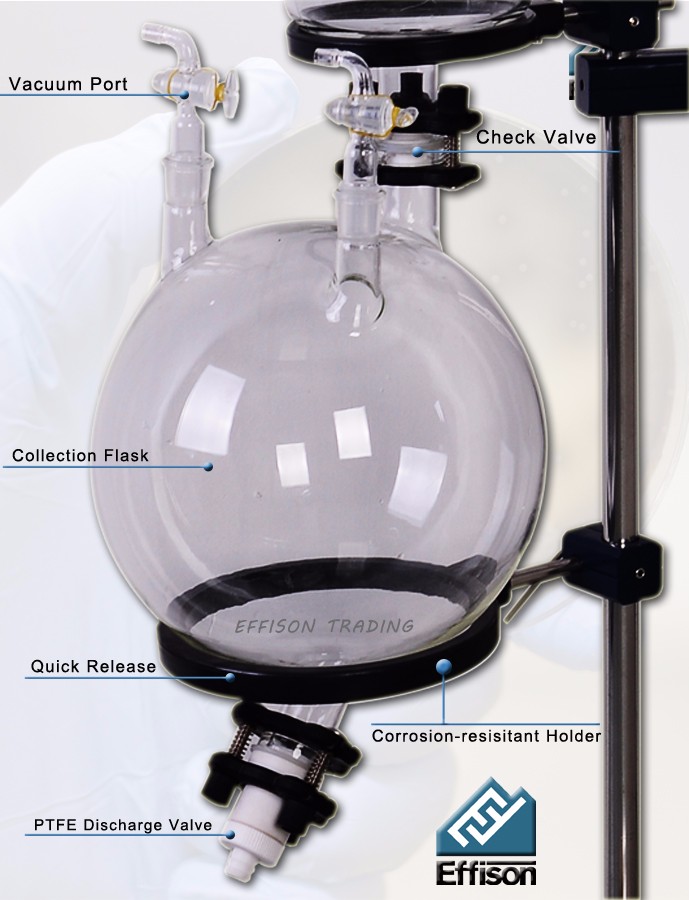

Collection flask.
All the wetted components are made of high quality boro 3.3 glass and PTFE, for excellent corrosion resistance.
Sealing Style: PTFE + Viton Material.

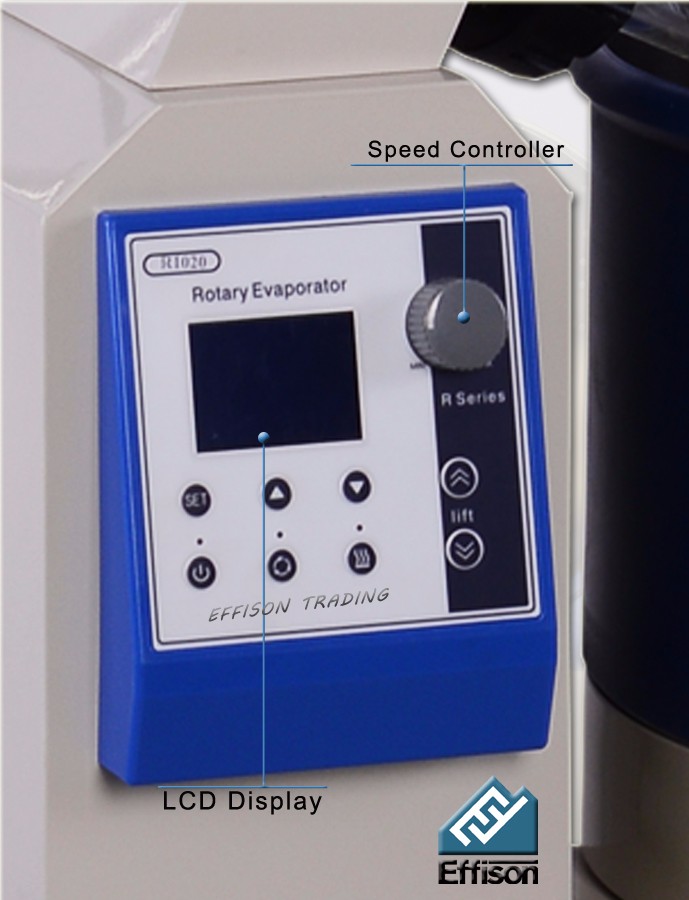

LCD Digital Display.
LCD digital display control panel of rotation speed of rotary flask as well as temperature controller

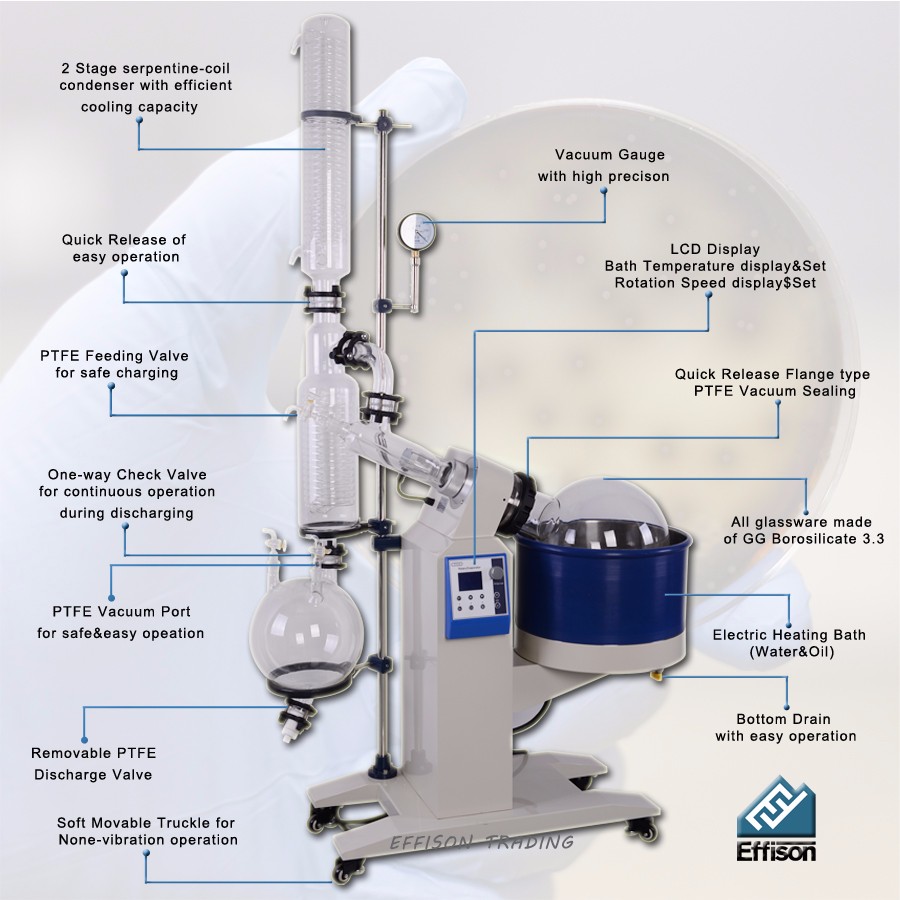

Multiple Effect Rotary Evaporator 10L for Laboratory

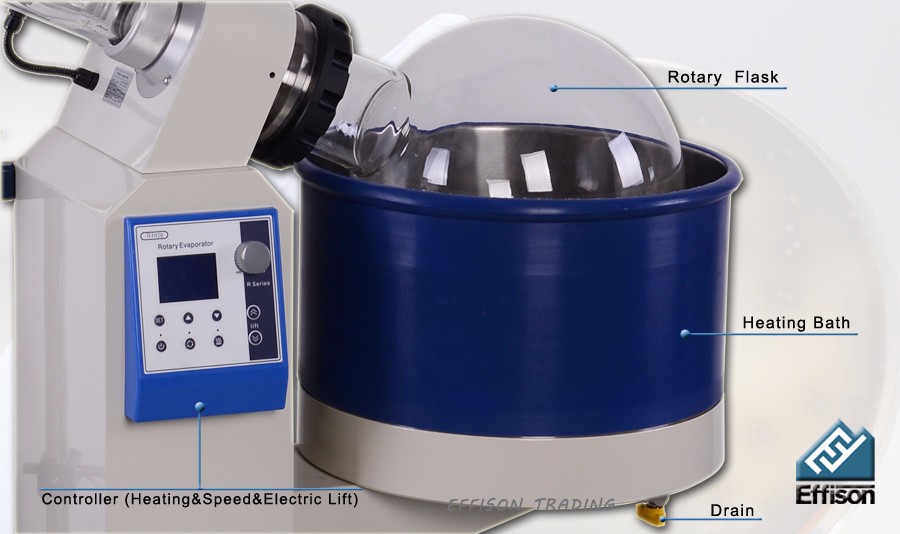

---- Electric lift heating bath
---- Digital display and control of temperature, rotating speed
---- Esay to operation and observation
For rotary evaporator 10l, it always combined with a vacuum pump and chiller to be a whole vacuum distillation/extraction system

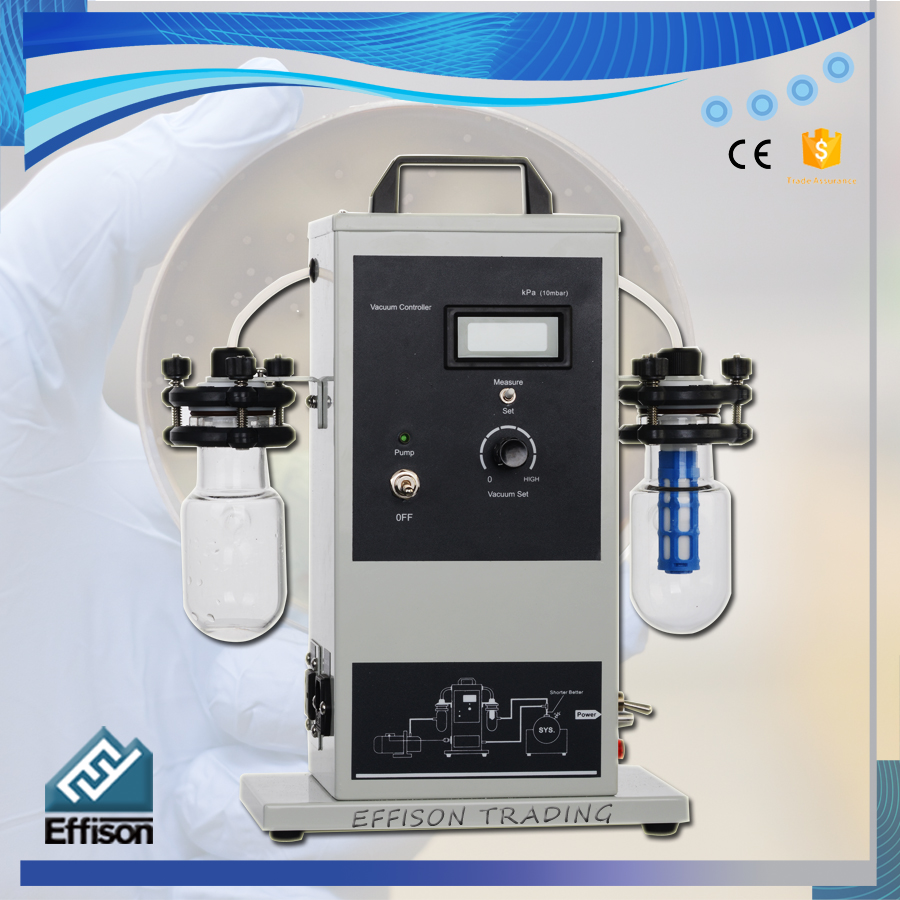

Vacuum controller is used to control the vacuum degree.
Vacuum controller
91.8% Response Rate

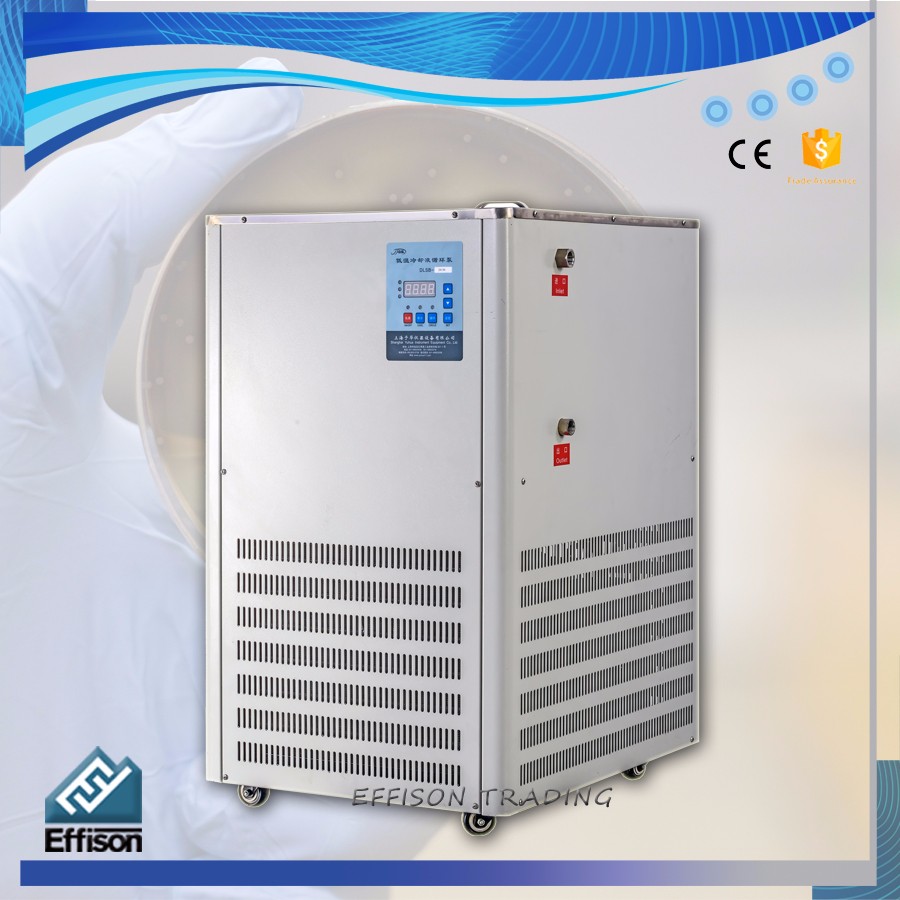

Low Temperature Recirculating Chiller
91.8% Response Rate

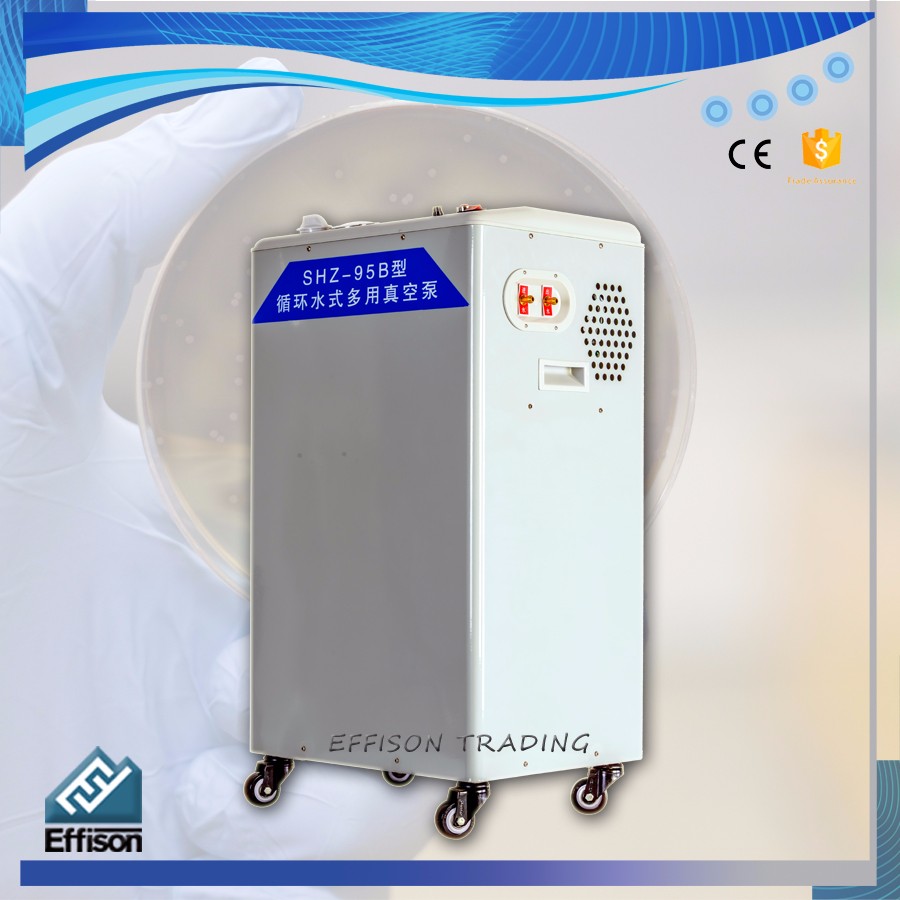

Water Circulation Vacuum Pump
91.8% Response Rate
1. Depends on different goods, the package will use carton case or fumigated wooden case.
2. Acooding to your schedule and budget, we can ship the goods by air, by sea, by express, or by train.
3. If there's any broken during the shipment, we will send you new parts for free.
4. Different countries has different requirements for customer clearance, if you know it, pls tell us.
NO.1 How to choose suitable equipment?
You tell us your work flow and requirement, for example: capacity, temperature range, pressure, power supply, etc., we will recommend you suitable equipment according to your requirements.
NO.2 How long is your date of delivery?
Within 5 working days after payment confirmed,customized products need 10~15 days.
NO.3 How to solve the equipment trouble during using?
Please send us email of the problem, pictures or a small video will be much better, we will find the problem and help you to solve it.
NO.4 Will you provide service beyond the warranty?
Yes, we provide lifetime service for our products, but it won't be free beyond the warranty period.
NO.5 How to transport the product?
By sea: More than 60kg or big quantity, safe, cheap but slow;
By air to airport: Suit for big product or quantity but urgent a lot.3~10 days;
By Express delivery such as DHL, FedEx, TNT: Suit for small or not too heavy and very urgent product.
