cheapest price oil distillation multiple effect evaporator for sale

A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.

Technical Feature

  • New
  • Distillation
  • Electric
  • Vacuum Distillation
  • Shanghai, China (Mainland)
  • LAB1ST
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~1

PRIMARY PARAMETERS

Condition
New
Application
Distillation
Power Source
Electric
Process
Vacuum Distillation
Place of Origin
Shanghai, China (Mainland)
Brand Name
LAB1ST
Model Number
RE-502
Voltage
220V/110V
Power(W)
1500w
Dimension(L*W*H)
600*620*480mm
Weight
40kg
Certification
CE ISO
Warranty
12 Months
After-sales Service Provided
Overseas third-party support available
Model
cheapest price oil distillation multiple effect evaporator for sale

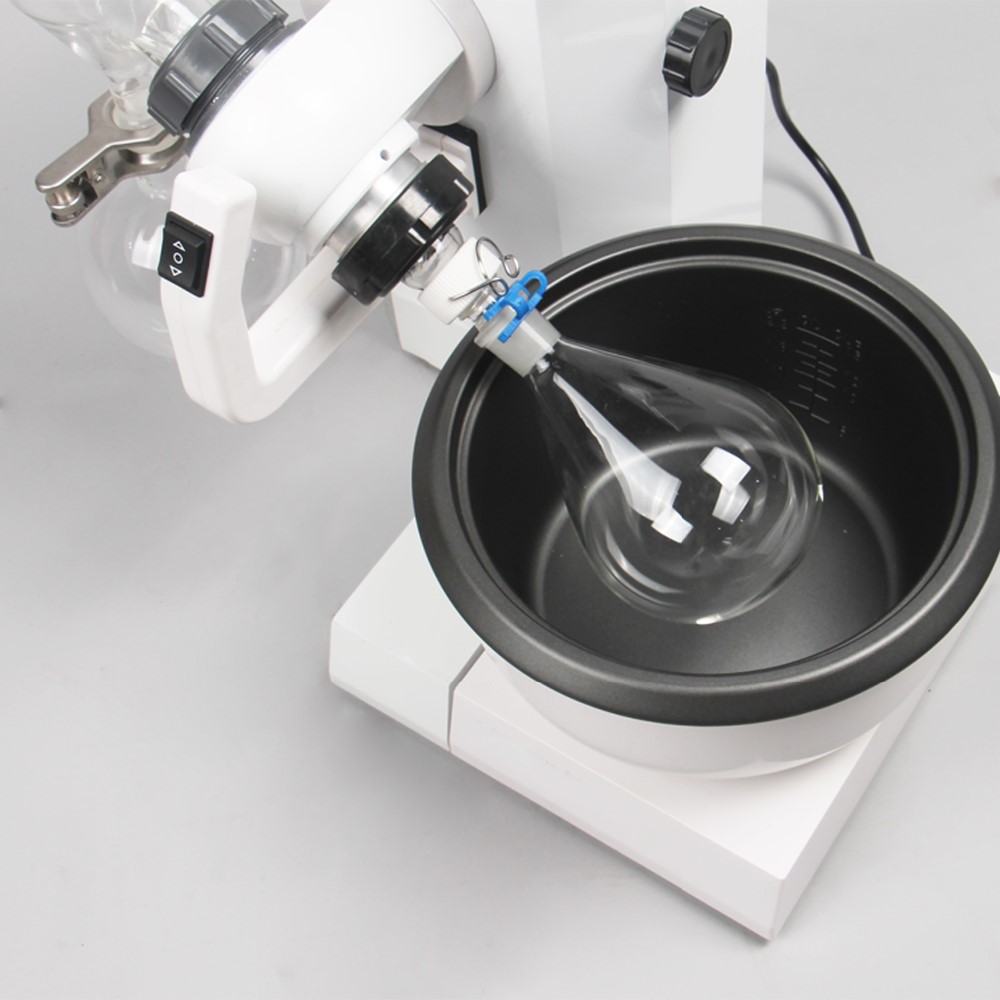

Evaporation Flask
pear-shared 1L
Receiving Flask
round-bottom 1L
Bath Temp Range
+5u2103 to 180u2103
Material
Stainless Steel
Sealing
PTFE +Viton
Rotation Speed
10 to 150 rpm
Evaporation Speed
1200ml/hr (water)
Future
laboratory rotary evaporator
End volume
20mbar or less

DETAIL DESCRIPTION

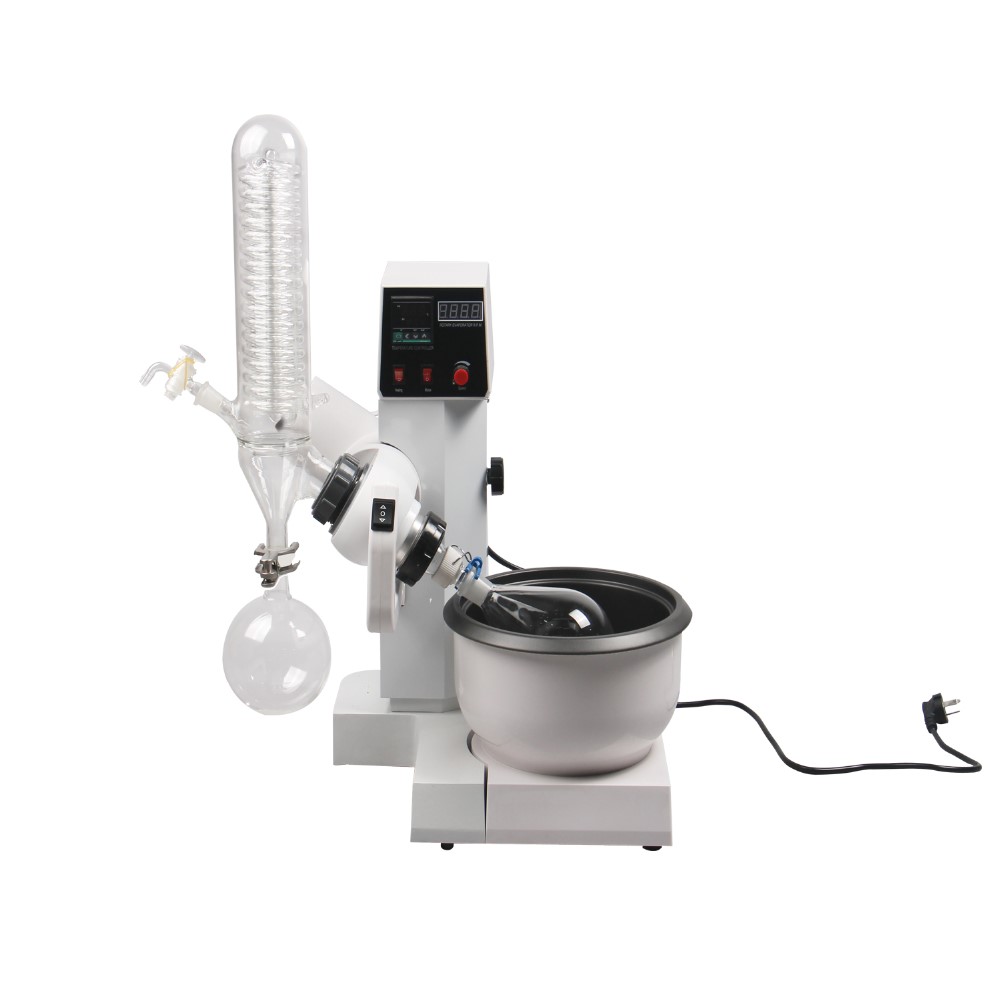

Product Description

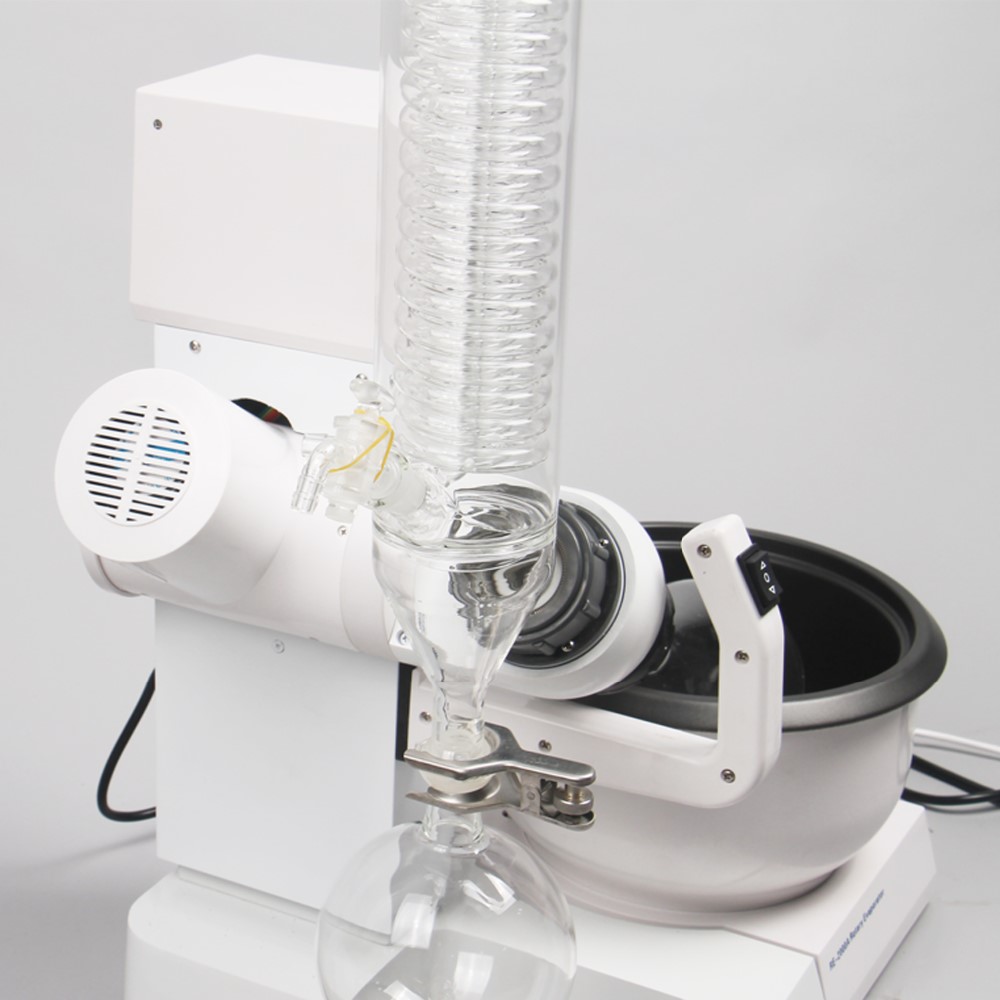

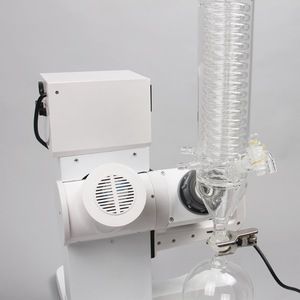

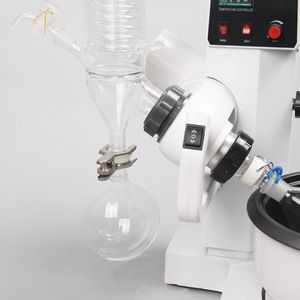

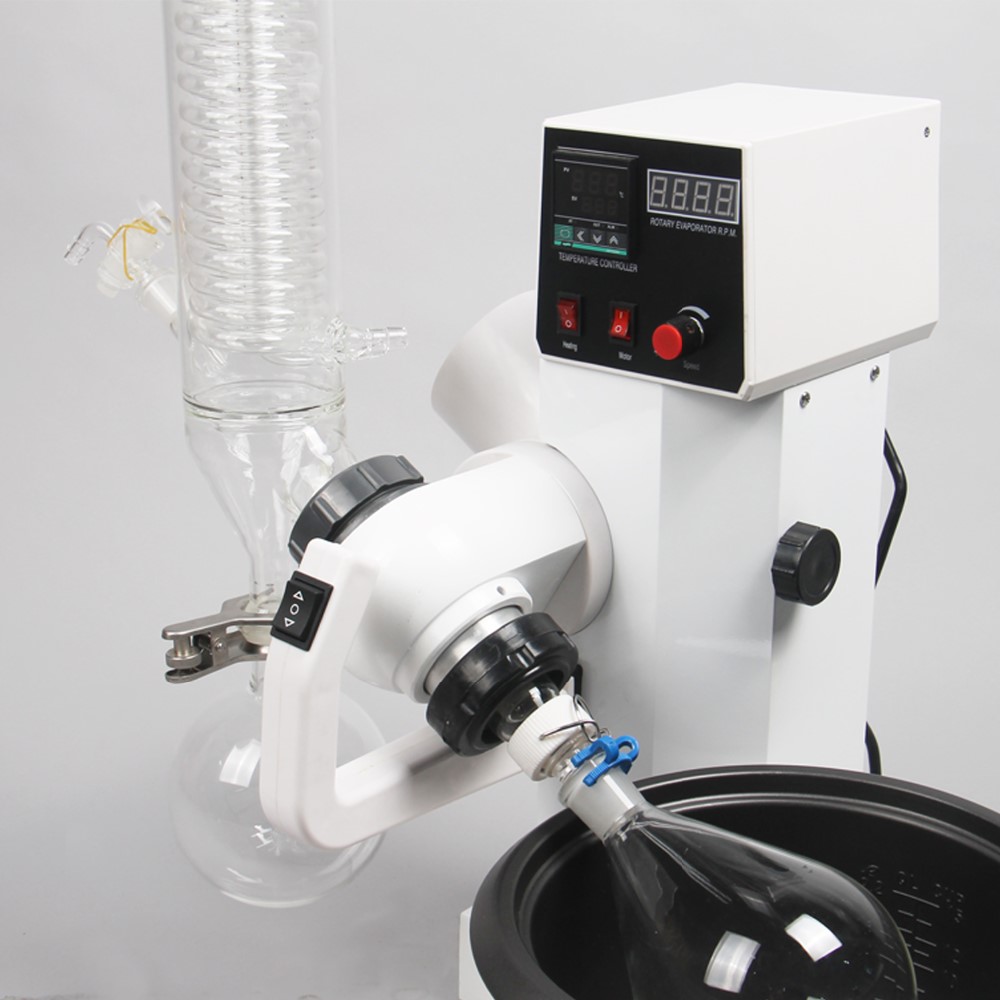

cheapest price multiple effect evaporator for sale

A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate "low boiling" solvents such a n-hexane or ethyl acetate from compounds which are solid at room temperature and pressure. However, careful application also allows removal of a solvent from a sample containing a liquid compound if there is minimal co-evaporation (azeotropic behavior), and a sufficient difference in boiling points at the chosen temperature and reduced pressure.

The most cost effective model with MOTOR lift for all standard applications: simple stracture, easy to maintain, with different condenser options,    for up to 1L evaporation flask.

Technical Futures

1.High quality borosilicate glass 3.3 with excellent physical and chemical properties.

2.Comatible with evaporating flasks from 0.25L to 2L.

3.4 options of glassware assembly: vertical coil, diagonal coil, dry ice and vertical coil with reflux.

4.Easy to operate motor lift (150mm range )

5. Large 1200cm2 cooling surface.

Technical dates
Model
RE-502
Evaporation  Flask
pear-shaped , 1L as defult, 24/40 or 24/29 joint
Receiving Flask
rond-bottm, 1L, 35/20 ball joint at the top
Vacuum Seal
PTFE+viton
Rotation Speed
10 to 180 rpm
Ultimate Vacuum
20mbar or less
Safety Features
fuse and ver-temperature protection
Lift Function
electrical motor lift
Stand base
heavy-duty SUS304 plate
Motor
induction motor
Bath Temp Range
+5℃ to 180℃
Accuracy
+/-1℃
Display
digtial display for speed, set/ actual temperature
Bath size
240mm diameterx 130mm height, 5.8liter
Bath material
SUS304
Total weight
40kg
Heating power
1500w
Voltage
230v or 115v

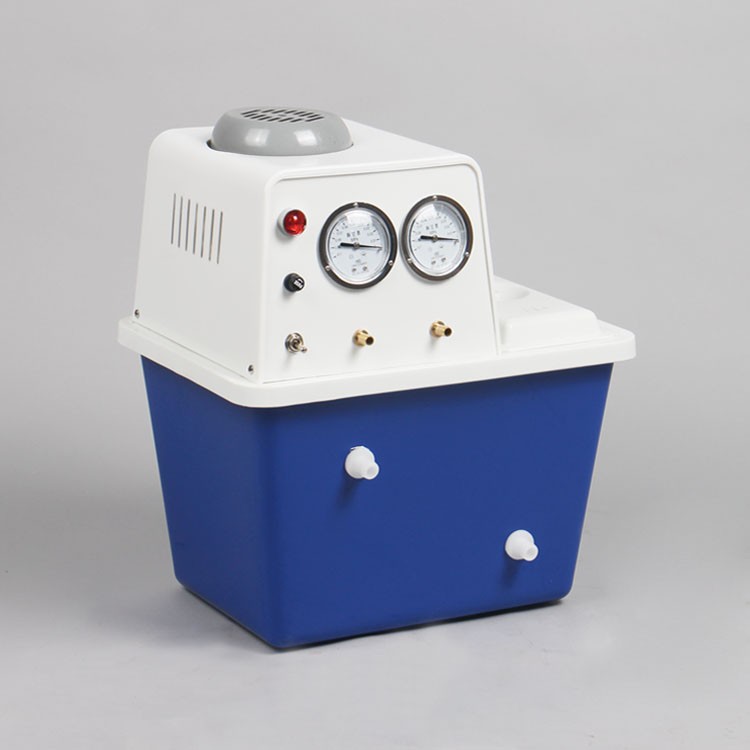

Vacuum Pump

1.Dramatically reduced water consumption compared to tap water.

2.Assured constant water circulation which is independent from tap water contingencies like water availability or low pressure

3.Oil-free and maintemance-free design, absolute clean vacuum.

4.Chemical corrosion-resistant ABS stracture for long time service.

5.Two independent vacuum channels to support two vacuum systems simultaneously

6.Small footprint design, ideal for desktop rotary evaporator operation.

Model
WVP-02
Utimate Vacuum
20mbar
Gas-taking speed
10L/min x 2 ports
Water tank volume
15L
Water flow rate
60L/min
Pressure head
8m
Power
180W
Weight
15kg
Dimension
400x280x420mm
How to support

For a lab equipment, the most valuable is the quality configuration and after sales support!

1.All glassware test by china authorities certification, our products get Green product certification,China famous product certification and ISO9001 quality management system certification.

2.All machine dispatched from Lab1st must be test by 3 times. the first time is the PR deparment,then test again by the QC deparment, and then the machine must be test again by our DS deparment.  to guarantee each machine working perfect before delivery! cheapest price multiple effect evaporator for sale

3.Each machine will deliver with User manual, machine label, Serier No.  to guarantee the customer can get the machine without quality problem, custom clearance problem and delivery problem. also we provide 13month guarantee since the shipping date, all faulty spare parts can be exchanged for free at the first time

110v and 220v rotary vacuum evaporator

Our factory

 Labfirst Scientific Instruments Co.,Ltd | Shanghai, China

Labfirst Scientific (LAB1ST) was founded and based in Shanghai, specializing in the manufacturing and sales of glass-related equipments from lab scale to production scale. We work hard to provide high quality yet low cost products to our customers in universities, research labs and production facilities from all over the world.
All the glass-related equipments (glass reactors, rotary evaporators, thermo-regulators) are manufactured in our production facility in Shanghai. That helps us keep constant control over product quality and allows us to store a significant inventory of products. (Most of our standard products are in stock and ready to ship.)cheapest price multiple effect evaporator for sale
With more than 20 years of experience on glass blowing, we provide a comprehensive range of products from lab glassware to industry-grade glass reactors (up to 200L) and evaporators (up to 50L). With the help of our experienced scientific glassblowers, we are able to quickly build customized glassware and prototype equipments, based on your sketch or pictures.
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.
The following pictures show the art of fire and glass in our workshop.

Contact Us

 My dear friend,

Welcome to visit our company and willing to factory,  contact us if you need any further support before or after sales.
Labfirst Scientific Instruments Co.,Ltd | Shanghai, China
 Address
--------Miss Kerry Gong
                                     ------- sales Manager

Website: www.lab1st.com

Pls contact us for big surprise :)------ only limited to first 10 inquiry people each day on Beijing Time.

Miss Kerry Gong


Email:  kerry@lab1st.com


Mobile: +86 18817507587


Whatsapp: +86 18817507587

 Skype:  18817507587

Related products

 1L hand-lift Rotary Evaporator

  97.5% Alibaba Sale Ranking

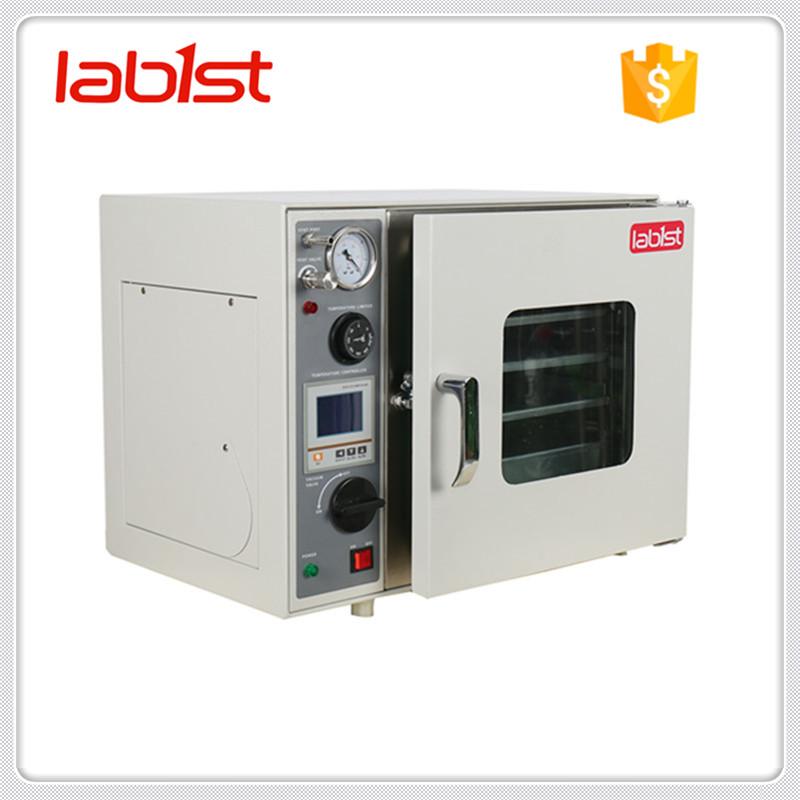

0.9 cu ft Vacuum oven

96% popular products

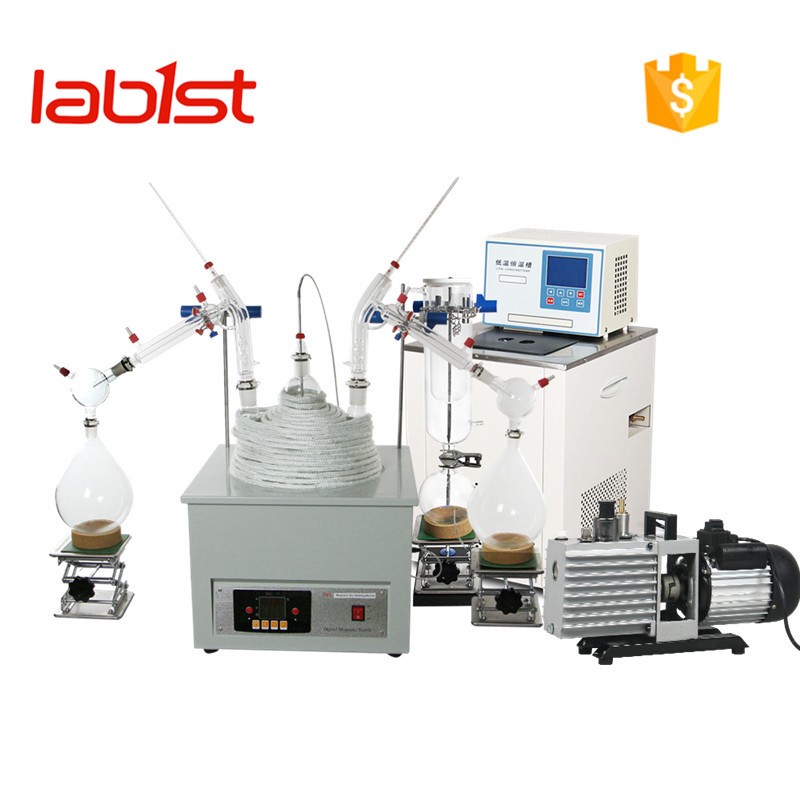

 10L short path distillation system
