Packaging Details: sea standard
Delivery Detail: 30 days after receipt of 30% deposit

Specifications

1.Material:SS316L/SS304
2.Steam pressure (Mpa):0.5-0.8
3.Evaporation temperature:45-90
4.Evaporation capaicty: 500~50000L/h

Equipment characteristics:

1.Full closed process, fast and low temperature evaporation;
2.Inside pipes are mirror polishing seamless sanitary pipes, so material is not easy to paste on the pipe all, it's easy for cleaning;

3.Low steam consumption: 1kg steam can evaporte 3.5kg water;

4.Low evaporation temperature:part of secondary steam can be inhaled into single-effect heater through spray type hot pressure pump, this would make full use of the heat and the evaporation temperature is low.

5.Large concentration ratio: adopt falling film evaporation, which make the material liquid with larger viscosity be easy to flow and evaporate, hard to scale,  short cocentration time, the concentration ratio can reach to 1:5.

6.This equipment  can realize automatic production, intellectual system management, which is in conformity with GMP standard.

7.Can be desinged into different technological process according to the different characteristics of the materials , also can according to different users' requirements equip with automaticl control system.

 Application:

It's applicable for dairy products, pharmacy, glucose, starch,chemical industry,  xylose, citric acid, ammonium sulfate, biological engineering, environmental engineering and waste liquid recovery and treatement. etc.

Equipment structure:

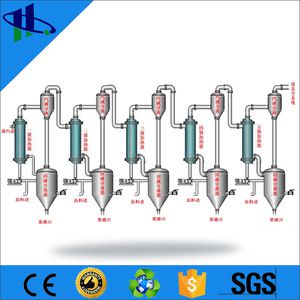

It consists of (first-effect, second-effect, third-effect)separators and evaporators and preheaters,condenser and vaccum pump, feeding pump,circulation pump, discharge pump, condensed water pump and system pipe fittings, etc. Equiped wit CIP spraying cleaning ball, vacuum gauge, thermometer,pressure gauge,and so on.

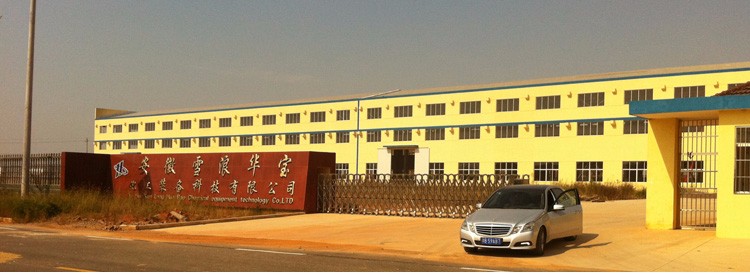

Anhui HB Chemical Equipment Technology Co.,Ltd.is located in Langxi Industrial Park,of Xuancheng City, Anhui Province .
Our company covers an area of 60 acres, building area of 12000 square meters, formally put into operation in January 2011. Anhui Xuelang Huabao Chemical Equipment Technology Co., Ltd., mainly the production of 1, 2 class pressure vessel, reactor, heat exchanger, evaporator, non-standardequipment, registered capital: 500 million yuan.

 We will give advices and suggestions to user according to the needs of various industries: provides various product standards, raw materials, inspect and test methods, standard and technology consultation according to user requirements; provides manufacturing according to buyer's requirements, customizing of non-standard product, such as ultra short / long series; provides company qualifications and credit proof etc.

We will provide reactor routine maintenance as well as training service for troubleshooting of common faults; provides remote or on-site reactor review, installation and operation technical guidance; for customer quality complaint, after technical support by telephone, professional customer service personnel will arrived at the scene if any further service is required; user's technical quality consultation will be replied within 24 hours; 12 months of product warranty period is provided; provide 24 - hour technical support hotline; provide various forms of after sale service for free during the warranty, provide life time after sale service and limited supply of free wearing parts for three years.


Why Choose Us ?
1.Strong Technical support: senior engineer can offer you the best technical support .
2. Customization Production: size, model, package can be per customers' request.
3. Realizablw Quality: professional design team, strict QC system and strong transportation cooperation.
4. First-class Pre and After Service: we ensure the well processing of the practice of our products for customers.
