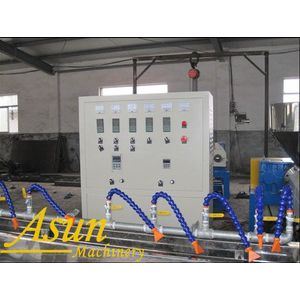

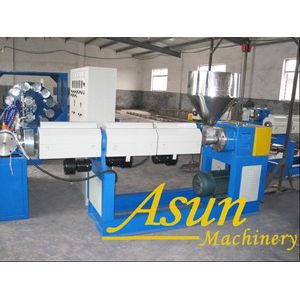

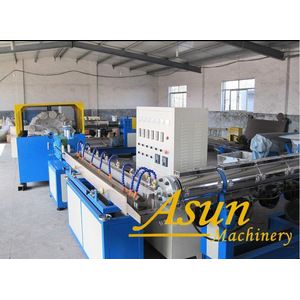

PVC fibre reinforced hose making machine.
Process flow:

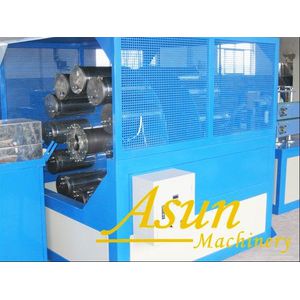

Material mix→inner layer extrusion→inner layer forming→spray cooling→haul-off→fibre winding→oven dryness→outer layer extrusion→outer layer forming→spray cooling→haul-off→printer→winder
Describe:

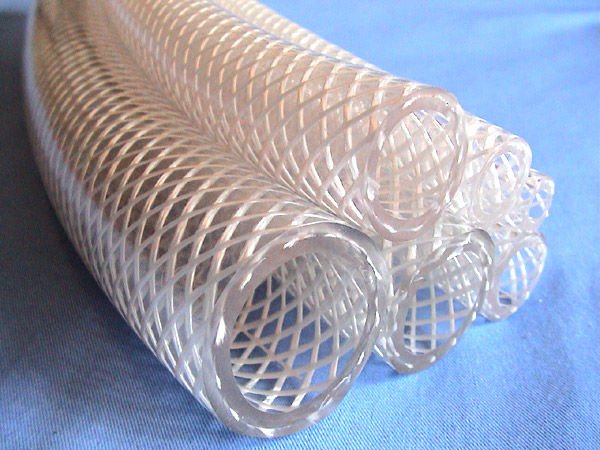

This extrusion machine is used to produce PVC fibre hose, which has three layers, the ourter and inner layer are made of soft PVC, middle layer is terylene fibre, which has good chemical and physical property. It is mainly used for the transportation of high pressure or corrosive gas, and is widely used in the machinery, coal mine, oil, chemical, agriculture irrigation and buildings.
Technical parameters:
Model | Screw diameter | L/D | Extruder Qty. | Pipe range | Capacity | Main motor power | Total power | Line length |
PVC-45 | 45mm | 30:1 | 1 | 6-14 | 40-60 | 11 | 50 | 25 |
45mm | 30:1 | 1 | 11 | |||||
PVC-65 | 65mm | 28:1 | 1 | 12-50 | 70-90 | 22 | 80 | 25 |
