FRP Fibre reinforced Polymer pipe Production Line
Description of FRP fiber reinforced polymer pipe production line:
1.PVC fiber reinforced pipe production line has a good market in worldwide. We can supply PVC fiber reinforced hose production line with competitive price and high quality.
2.PVC fiber reinforced pipe production line /PVC fiber reinforced hose machine is the special product developed by our company. PVC fiber reinforced hose production line is mainly used to manufacture fiber-reinforced hose for fluid conveying.
3.PVC fiber reinforced pipe can be used as pipelines to conveying air, water, gas, oil and other kind of fluid and gas
Process Flow of FRP fiber reinforced polymer pipe production line:
Raw material+additive→mixing→granulating→conveying feeding→single screw extruder→extruding mould→spray cooling water tank→belt haul-off→fiber winder→warm-up oven→single screw extruder→mould→spray cooling water tank→belt haul-off→meter measure→winder→finished product inspecting&packing.
Technical Parameters of FRP fiber reinforced polymer pipe production line:
Model | Screw diameter | L/D | Extruder | Pipe range (mm) | Capacity (kg/h) | Power (km) | Total power (kw) | Line length (m) |
PVC-45 | 45mm | 30:1 | 1 | 6-14 | 40-60 | 11 | 50 | 25 |
45mm | 30:1 | 1 | 11 | |||||
PVC-65 | 65mm | 30:1 | 1 | 12-50 | 70-90 | 11 | 80 | 25 |
65mm | 30:1 | 1 | 11 |

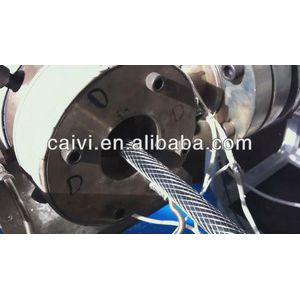

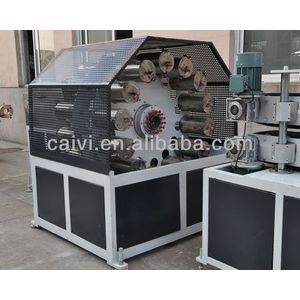

Pictures of FRP fiber reinforced polymer pipe production line:
Exhibition show:
Shipping show:
If you want more information about FRP fiber reinforced polymer pipe production line,
please contact us.
Our company is about 130km from Shanghai. Welcome to our factory anytime!
